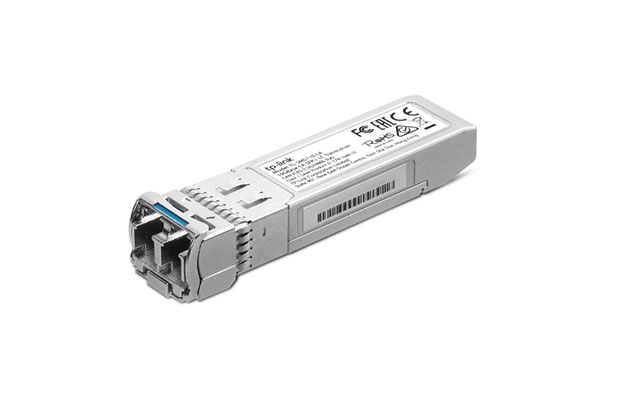

TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver
$29.00
- Part Number: TL-SM5110-LR
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
- Warranty: 3-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: TL-SM5110-LR
- PACKAGE CONTENTS
- Package Contents
- - 10G SFP+ Module TL-SM5110-LR
- - Installation Guide
- HARDWARE FEATURES
- DDM: Yes
- SFP-MSA: Yes
- Hot Swappable: Yes
- MEDIA CONVERTER & MODULE
- Dimensions (W*D*H): 2.2*0.5*0.4 in (56.7*13.9*10.35 mm)
- TRANSCEIVER
- Standards and Protocols: IEEE 802.3ae, TCP/IP
- Wave Length: 1310 nm
- Power Supply: 3.3V
- Fiber Type: 9/125um Single-Mode

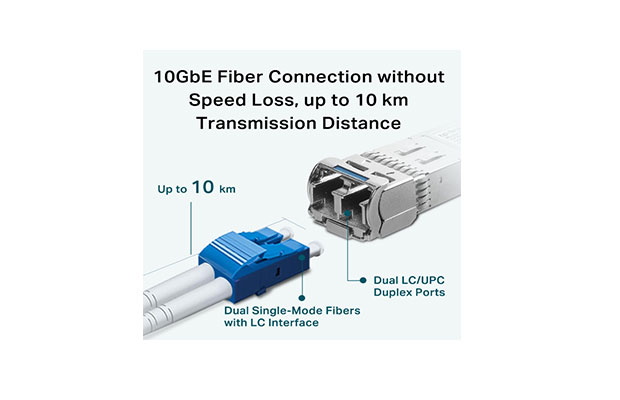

- Max. Cable Length: 10 km
- Data Rate: 10 Gbps
- Port Type: LC Duplex
- Safety & Emission: FCC, CE
- Environment:
- Operating Temperature: 0–70 °C (32–158 °F)
- Storage Temperature: -40–85 °C ( -40–185 °F)
- Operating Humidity: 10–90% RH, Non-Condensing
- Storage Humidity: 5–90% RH, Non-Condensing
- Warranty: 3-years on part.
