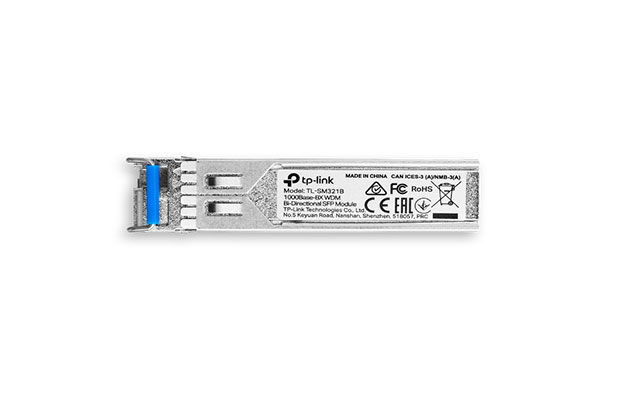

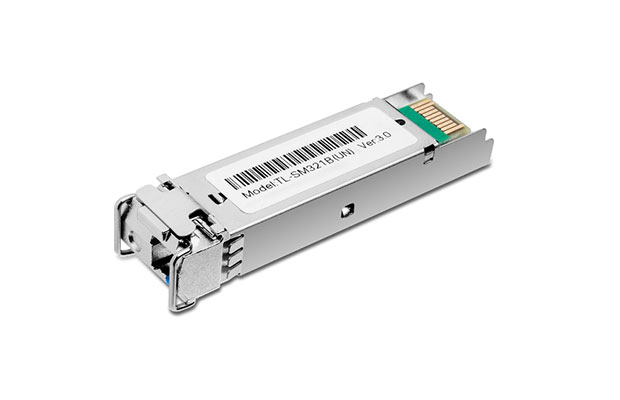

TP-Link TL-SM321B 1000Base-BX WDM Bi-Directional SFP Module
$13.00
- Part Number: TL-SM321B
- Up to 20 km transmission distance with 9/125 μm SMF (Single-Mode Fiber)
- Bidirectional WDM communication on a single fiber
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Hot-swappable module design
- Work with TL-SM321A as a pair
- Warranty 3 years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: TL-SM321B
- PACKAGE CONTENTS
- Package Contents
- - SFP Module TL-SM321B
- - Installation Guide
- MEDIA CONVERTER & MODULE
- Standards and Protocols: IEEE 802.3z, TCP/IP
- Wave Length: TX: 1310 nm , RX: 1550 nm
- Power Supply: 3.3 V
- Safety & Emission: FCC, CE
- Cabel: Single-Mode Fiber
- Fiber Type: 9/125 μm Single-Mode
- Max. Cable Length: 20 KM
- Data Rate: 1.25 Gbps
- Port Type: LC Simplex
- Environment:
- Operating Temperature: 0–70 °C (32–158 °F)
- Storage Temperature: -40–85 °C ( -40–185 °F)
- Operating Humidity: 10–90% RH, Non-Condensing
- Storage Humidity: 5–90% RH, Non-Condensing
- Warranty 3 years on part.
