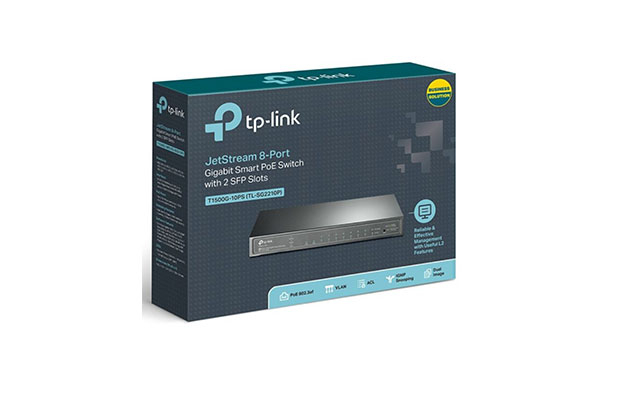

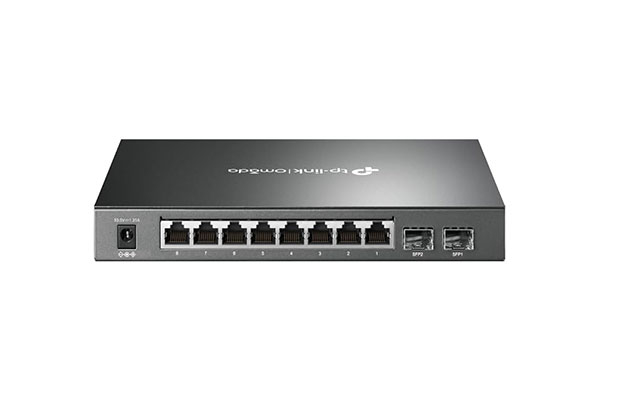

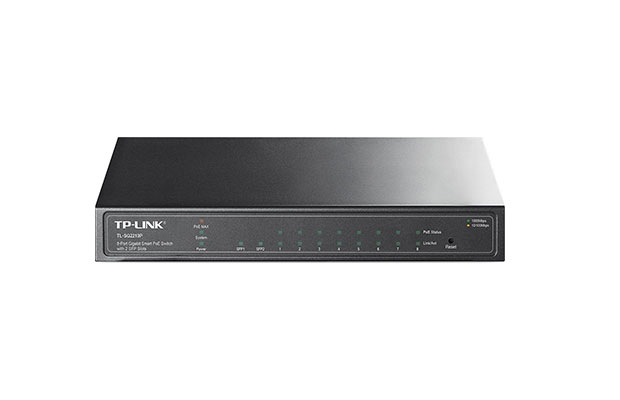

TP-Link TL-SG2210P JetStream 8-Port Gigabit Smart PoE+ Switch with 2 SFP Slots
$95.00
- Part Number: TL-SG2210P
- 61 W PoE Budget: 8× 802.3af/at-compliant PoE+ ports with a total power supply of 61 W*.
- Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.
- Warranty: 3 Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: TL-SG2210P
- HARDWARE FEATURES
- Standards and Protocols:
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
- IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
- IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
- Interface:
- 8x 10/100/1000Mbps RJ45 Ports
- 2x 1000Mbps SFP Slots (Auto-Negotiation/Auto MDI/MDIX)
- Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
- 1000BASE-X: MMF, SMF
- Fan Quantity: Fanless
- Power Supply: 100~240VAC, 50/60Hz
- External Power Adapter (Output: 48VDC/1.25A)
- Power Consumption:
- Maximum (PoE on): 63.4W (220V/50Hz)
- Maximum (PoE off): 10.4W (220V/50Hz)
- PoE Ports (RJ45):
- - Standard: 802.3af compliant
- - PoE Ports: 8 Ports
- - Power Supply: 53W
- Dimensions ( W x D x H ): 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)
- PERFORMANCE
- Bandwidth/Backplane: 20Gbps
- Packet Forwarding Rate: 14.9Mpps
- MAC Address Table: 8k
- Packet Buffer Memory: 512KB
- Jumbo Frame: 9216 Bytes
- SOFTWARE FEATURES
- Quality of Service:
- - Support 802.1p CoS/DSCP priority
- - Support 4 priority queues
- - Queue scheduling: SP, WRR, SP+WRR
- - Port/Flow- based Rate Limiting
- - Voice VLAN
- L2 and L2+ Features:
- • 16 IP Interfaces
- - Support IPv4/IPv6 Interface
- • Static Routing
- - 32 IPv4/IPv6 Static Routes
- • DHCP Server
- • DHCP Relay
- - DHCP Interface Relay
- - DHCP VLAN Relay
- • DHCP L2 Relay
- • Static ARP
- • Proxy ARP
- • Gratuitous ARP
- • Link Aggregation
- - Static link aggregation
- - 802.3ad LACP
- - Up to 8 aggregation groups and up to 8 ports per group
- • Spanning Tree Protocol
- - 802.1D STP
- - 802.1w RSTP
- - 802.1s MSTP
- - STP Security: TC Protect, BPDU Filter/Protect, Root Protect
- • Loopback Detection
- • Flow Control
- - 802.3x Flow Control
- • Mirroring
- - Port Mirroring
- - CPU Mirroring
- - One-to-One
- - Many-to-One
- - Flow-Based
- - Ingress/Egress/Both
- • Device Link Detect Protocol (DLDP)
- • 802.1ab LLDP/ LLDP-MED
- VLAN: Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
- Access Control List:
- L2～L4 package filtering based on source and destination
- MAC address, IP address, TCP/UDP ports, 802.1p,
- DSCP, protocol and VLAN ID
- Time Range Based
- Security:
- SSH v1/v2
- SSL v2/v3/TLSv1
- Port Security
- Broadcast/Multicast/Unknown unicast Storm Control
- 802.1x and Radius Authentication、IP-Mac-Port-VID Binding、ARP Inspection、DHCP Snooping、DoS Defend
- L2 Switching Features IGMP Snooping V1/V2/V3
- 802.3ad LACP (Up to 6 aggregation groups,
- containing 4 ports per group)
- Spanning Tree STP/RSTP/MSTP
- BPDU Filtering/Guard
- TC/Root Protect
- Loop back detection
- 802.3x Flow Control
- LLDP(LLDP-MED)
- Management:
- Web-based GUI and CLI management
- SNMP v1/v2c/v3, compatible with public MIBs and
- TP-LINK private MIBs
- RMON (1, 2, 3, 9 groups)
- CPU Monitoring
- Port Mirroring
- Time Setting: SNTP
- Firmware Upgrade: TFTP & Web
- System Diagnose: VCT
- SYSLOG & Public MIBS
- OTHERS
- Certification: CE, FCC, RoHS
- Package Contents: TL-SG2210P
- Power Adapter
- Installation Guide
- Resource CD
- Rubber Feet
- System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
- Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉);
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- Warranty: 3 Years on part.
