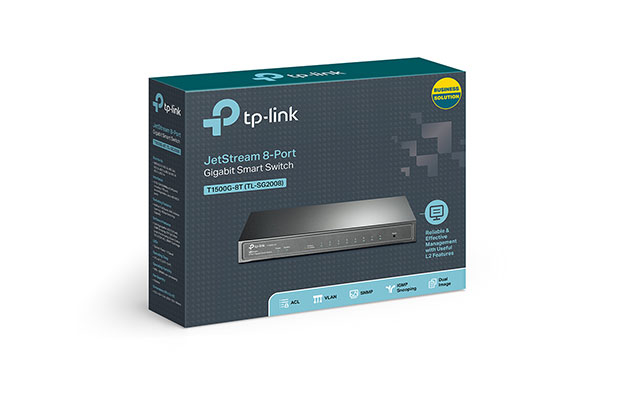

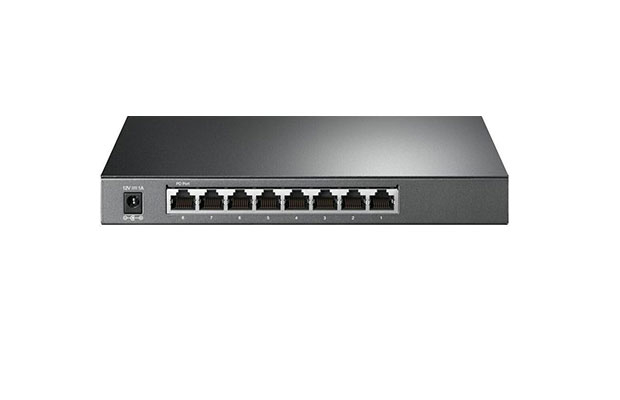

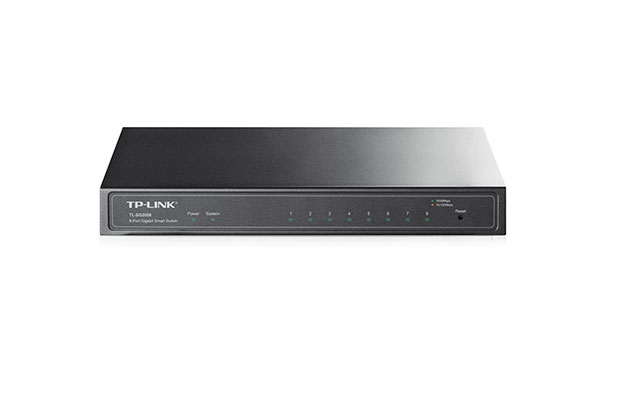

TP-Link TL-SG2008 JetStream 8-Port Gigabit Smart Switch
$75.00
- Part Number: TL-SG2008
- Full Gigabit Ports: 8× gigabit RJ45 ports provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Robust Security Strategies: 802.1Q VLAN, ACL, Port Security, Storm Control, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.
- Warranty: 3 years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Standards and Protocols:
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
- Interface: 8 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
- Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- Network Media: 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: 12 VDC/1 A External Adapter or
- Power Supply: Obtain Power from PoE Source
- Max. Power Consumption: 6.4 W (220 V/50 Hz)
- Dimensions ( W x D x H ): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
- PERFORMANCE
- Bandwidth/Backplane: 16 Gbps
- Packet Forwarding Rate: 11.9 Mpps
- MAC Address Table: 8K
- Packet Buffer Memory: 4.1 Mbit
- Jumbo Frame: 9 KB
- • Gratuitous ARP
- • Link Aggregation
- - Static link aggregation
- - 802.3ad LACP
- - Up to 8 aggregation groups and up to 8 ports per group
- - STP Security: TC Protect, BPDU Filter/Protect, Root Protect
- • Loopback Detection
- • Flow Control
- - 802.3x Flow Control
- • Mirroring
- - Port Mirroring
- - CPU Mirroring
- - One-to-One
- - Many-to-One
- - Flow-Based
- - Ingress/Egress/Both
- • Device Link Detect Protocol (DLDP)
- • 802.1ab LLDP/ LLDP-MED
