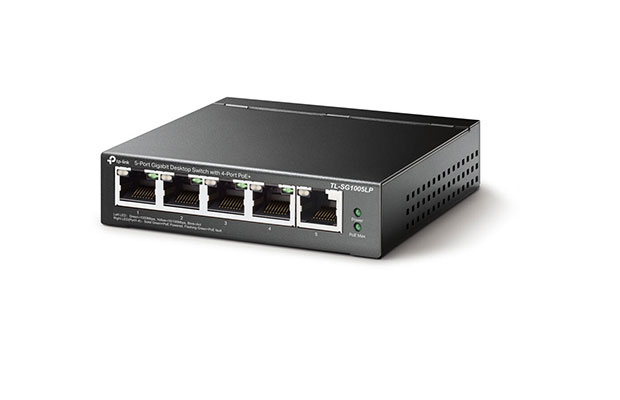

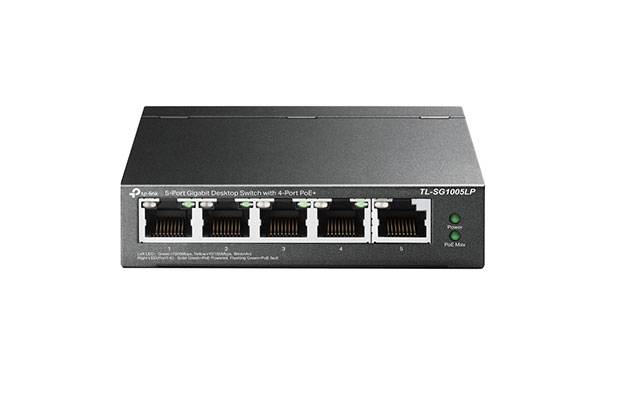

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+
$29.00
- Part Number: TL-SG1005LP
- 5× 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 40 W for all PoE ports*
- Plug and play, no configuration and installation required
- Warranty: 3 years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- HARDWARE FEATURES
- Interface:
- - 5× 10/100/1000Mbps RJ45 Ports
- - AUTO Negotiation
- - AUTO MDI/MDIX
- Network Media:
- - 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- - EIA/TIA-568 100Ω STP (maximum 100m)
- - 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- - EIA/TIA-568 100Ω STP (maximum 100m)
- - 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- - EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- External Power Supply: External Power Adapter (Output: 53.5 VDC / 0.81 A)
- Packet Forwarding Rate: 7.44 Mpps
- PoE Ports (RJ45):
- - Standard: 802.3 af/at compliant
- - PoE Ports: Ports 1–4
- - Power Supply: 40 W
- Mac Address Table: 2K
- Jumbo Frame: 16 KB
- Switching Capacity: 10 Gbps
- Dimensions ( W x D x H ): 3.9×3.9×1.0 in (99.8×98×25 mm)
- Max. Power Consumption:
- - 4.12 W (220/50 Hz. no PD connected)
- - 47.5 W (220/50 Hz. with 40 W PD connected)
- Max Heat Dissipation:
- - 14.05 BTU/h (no PD connected)
- - 161.98 BTU/h (with 40 W PD connected)
