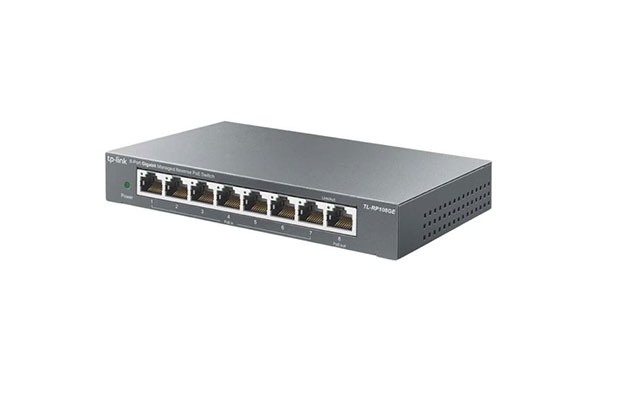

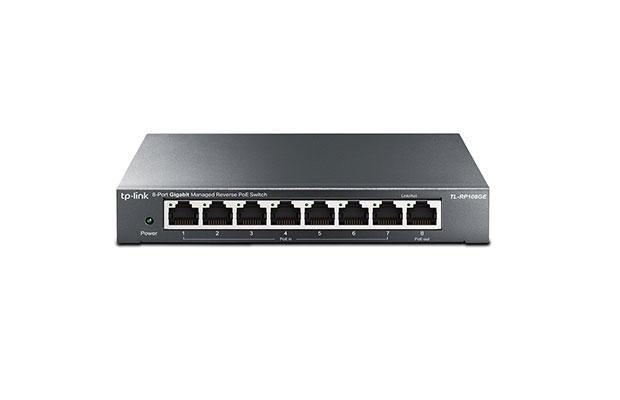

TP-Link TL-RP108GE 8-Port Gigabit Managed Reverse PoE Switch
$31.00
- Part Number: TL-RP108GE
- 7 PoE input and 1 PoE output 10/100/1000 Mbps RJ45 Ports
- 1 DC output port that supports both 5V and 12 V voltage switching
- Durable metal casing of superior quality and professional appearance
- Intelligent management via a web user interface and downloadable utility
- Green technology reduces power consumption
- Warraty: 3-years on port.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: TL-RP108GE
- HARDWARE FEATURES
- Standards and Protocols: CSMA/CD
- Interface:
- - 7 Passive PoE-in RJ45 Ports:
- - 10/100/1000Mbps Auto-Negotiation
- - Voltage: 24/48 V (mixture is not supported)
- - Power pin of Ethernet cable: 4/5+ 7/8-
- - 1 Passive PoE-out RJ45 Port:
- - 10/100/1000Mbps Auto-Negotiation
- - Voltage: depending on the input voltage of PoE-in ports
- - Power pin of Ethernet cable: 4/5+ 7/8-
- - 1 DC Output Port:
- - Voltage: 5/12 V
- Network Media 10Base-T:
- - UTP category 3, 4, 5 cable (maximum 100 m)
- - EIA/TIA-568 100 Ω STP (maximum 100 m)
- 100Base-TX:
- - UTP category 5, 5e cable (maximum 100 m)
- - EIA/TIA-568 100 Ω STP (maximum 100 m)
- 1000Base-T:
- - UTP category 5e cable (maximum 100 m)
- - EIA/TIA-568 100 Ω STP (maximum 100 m)
- Packet Forwarding Rate: 11.9 Mbps
- Mac Address Table: 4 K
- Jumbo Frame: 16 KB
- Switching Capacity: 16 Gbps
- IEEE Standards: IEEE802.3ab, IEEE802.3i, IEEE802.3p, IEEE802.3q, IEEE802.3x, IEEE802.3u
- Data Rates: Ethernet: 10 Mbps (Half Duplex), 20 Mbps (Full Duplex)
- Data Rates: Fast Ethernet: 100 Mbps (Half Duplex), 200 Mbps (Full Duplex)
- Data Rates: Gigabit Ethernet: 2000 Mbps (Full Duplex)
- LED Indicator: Power, Link/Act LED
- Dimensions ( W x D x H ): 6.2 × 3.9 × 1.0 in (158 × 99.1 × 25 mm)
- Max Power Consumption:
- - 3.98 W (with no PD connected)
- - 18.01 W (24 V with PD connected)
- - 32.74 W (48 V with PD connected)
- Max Heat Dissipation:
- - 13.57 BTU/h (with no PD connected)
- - 61.41 BTU/h (24 V with PD connected)
- - 111.64 BTU/h (48 V with PD connected)
- OTHERS
- System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
- Environment:
- - Operating Temperature: 0℃~40℃ (32℉~104℉)
- - Storage Temperature: -40℃~70℃ (-40℉~158℉)
- - Operating Humidity: 10%~90% non-condensing
- - Storage Humidity: 5%~90% non-condensing
