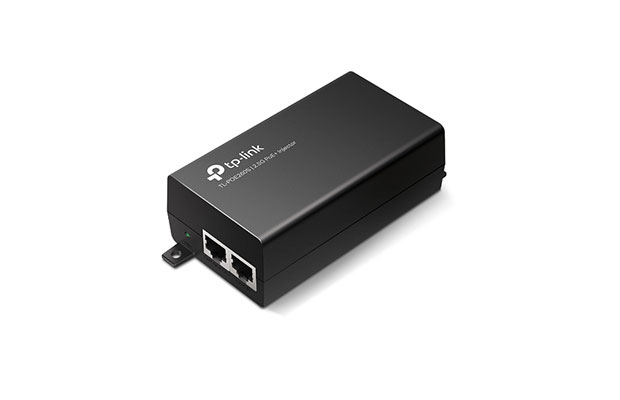

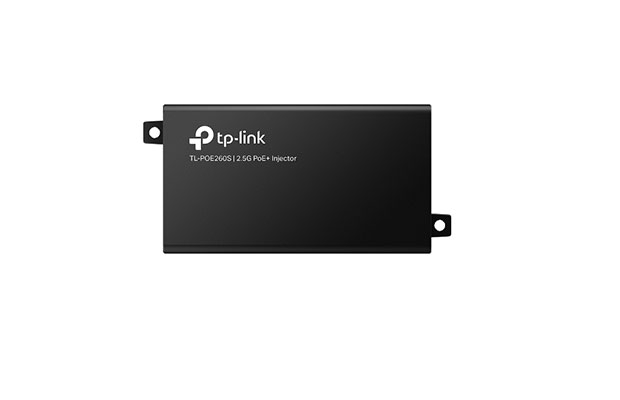

TP-Link TL-POE260S 2.5G PoE+ Injector (30W) Non-PoE to PoE Adapter
$19.00
- Part Number: TL-POE260S
- 2*2.5 Gbps ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: TL-POE260S
- NETWORK
- Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at
- GENERAL
- Certification: FCC, CE, RoHS
- Environment:
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -40°C to 70°C (-40°F to 158°F)
- Operating Humidity: 10% to 90%RH non-condensing
- Storage Humidity: 5% to 90%RH non-condensing
- PACKAGE CONTENTS
- Package Contents:
- - 2.5Gbps PoE+ Injector TL-POE260S
- - Installation Guide
- - Power Cord
- - RJ45 Cable
- - Wall Mounting Kits
- HARDWARE FEATURES
- Network Media:
- • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
- EIA/TIA-568 100Ω STP (maximum 100 m)
- • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
- EIA/TIA-568 100Ω STP (maximum 100 m)
- • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
- • 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m)

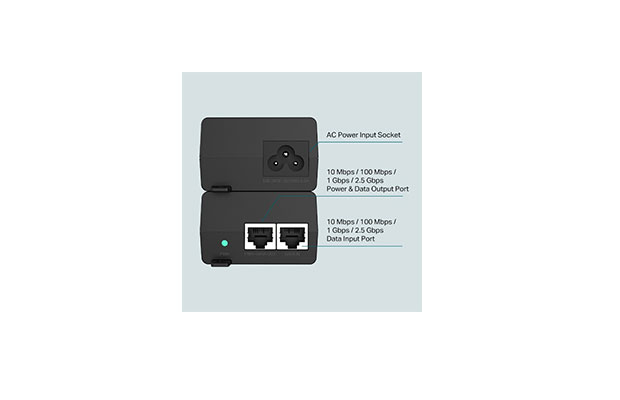

- Ports:
- - 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port
- - 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port
- - 1 AC socket
- Power Consumption: Input: 100-240 V, 50/60 Hz
- Output: Auto-determine the necessary power requirements (max. 30 W)
- Basic Function:
- • Auto-Sensing Algorithm enables providing power with 802.3af/at PD
- • Auto-determine the necessary power requirements
- • Wall-mounting and desktop installation supported
- • Plug-and-Play
- LED Indicator:
- ON: Supplying power normally
- OFF: No power supply
- Dimensions ( W x D x H ): 4.9*2.3*1.4 in (125*59.4*36.8 mm)
