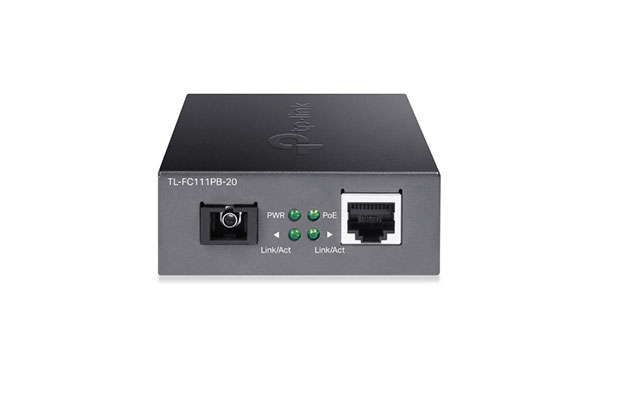

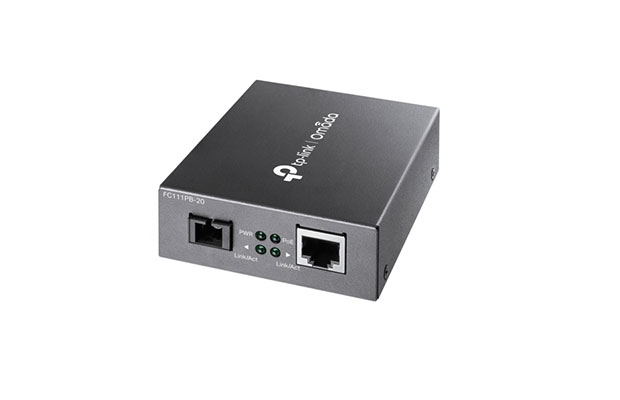

TP-Link TL-FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE
$21.00
- Part Number: TL-FC111PB-20
- Converts the data between fiber (optical signal) and copper (electric signal).
- Extends fiber distance up to 20 km.
- The 802.3af PoE output makes remote camera deployment easier and more convenient.
- WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fiber strand instead of two.
- Wide operating temperature (0–50 ℃) with reliability.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
- Warraty: 3-years on port.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: TL-FC111PB-20
- NETWORK
- Standards and Protocols: IEEE802.3, IEEE802.3i, IEEE802.3u
- ENVIRONMENT
- Operating Temperature: 0–50 °C (32–122 °F)
- Storage Temperature: -40–70 °C (-40–158 °F)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
- HARDWARE FEATURES
- Interface:
- - 1× 10/100 Mbps PoE RJ45 port (Auto MDI/MDIX)
- - 1× 100 Mbps SC fiber port
- Network Media: 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
- Power Supply: 48 V/0.5 A
- LED: PWR, Link/Act, PoE
- Dimensions ( W x D x H ): 3.7×2.9×1.1 in (94.5×73.0×27.0 mm)
- Wave Length: 1310 nm TX, 1550 nm RX
- ANTENNA
- Connector Type:
- - 1× 10/100 Mbps PoE RJ45 port
- - 1× 100 Mbps SC fiber port
- MEDIA CONVERTER & MODULE
- Fiber Type: 9/125 μm single-mode fber (≤20 km)
- OTHERS
- Package Contents:
- - Media Converter TL-FC111PB-20
- - Power Adapter
- - Installation Guide
