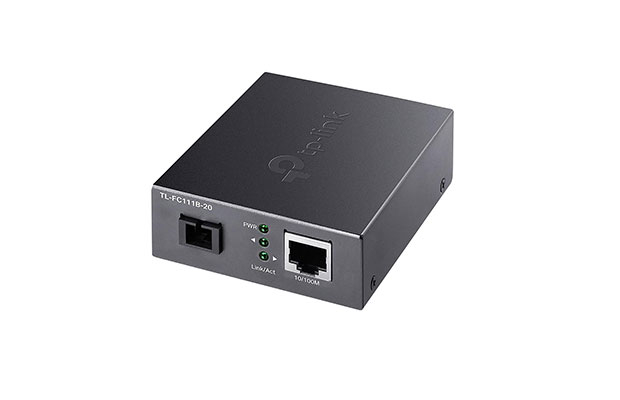

TP-Link TL-FC111B-20 10/100 Mbps WDM Media Converter
$15.00
- Part Number: TL-FC111B-20
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- 9/125 μm SMF (Single-Mode Fiber)

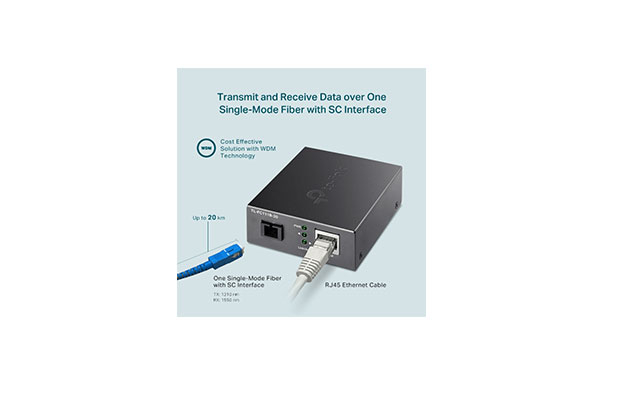

- Bidirectional WDM communication on a single fiber
- Ranges up to 20km (12.4 miles)
- Work with TL-FC111B-20 as a pair
- Warraty: 3-years on port.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: TL-FC111B-20
- NETWORK
- Standards and Protocols: IEEE802.3, IEEE802.3i, IEEE802.3u
- HARDWARE FEATURES

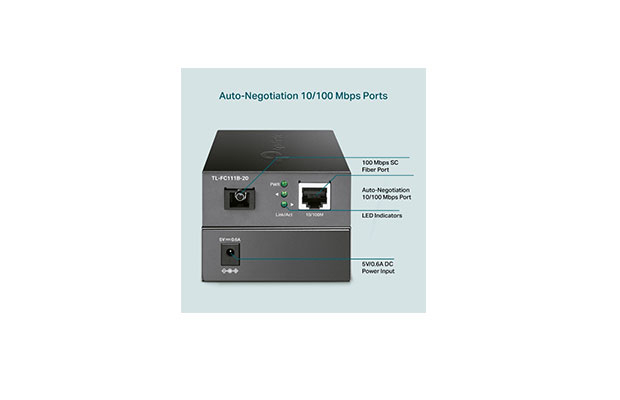

- Interface
- - 1× 100 Mbps SC Fiber Port
- - 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
- Network Media: 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m)
- Power Supply: External Power Adapter: 5 V/0.6 A
- LED: PWR, Link/Act
- Wave Length: 1310 nm TX, 1550 nm RX
- Dimensions ( W x D x H ): 94.5*73*27 mm
- MEDIA CONVERTER & MODULE
- Standards and Protocols: IEEE 802.3, IEEE 802.3i, IEEE802.3u
- Basic Function:
- - Auto-negotiation of half-duplex / full-duplex transfer mode
- - Full-duplex flow control (IEEE 802.3x)
- - Half-duplex flow control (Backpressure)
- - Extends fiber distance up to 20km (12.4 miles)
- Interface: 1x 100M single SC/UPC port, 1x 10/100M RJ45 port (Auto MDI/MDIX)
- WDM TX 1310 nm
- WDM RX 1550 nm
- Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
- Network Media 100BASE-T: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
- Network Media 100BASE-FX: Single-mode fiber
- Dimensions ( W x D x H ): 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm)
- Power Supply: External Power Adapter: 5 V/0.6 A
- LED: PWR, Link/Act
- Safety & Emission: FCC, CE, RoHS
- Fiber Type: 9/125 μm single-mode fber (≤20 km)
- Environment: Operating Temperature: 0℃~50℃ (32℉~122℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
- ENVIRONMENT
- Operating Temperature: 0˚C to 50˚C (32˚F to 122˚F)
- Storage Temperature: -40˚C to 70˚C (-40˚F to 158˚F)
- Operating Humidity: 10% to 90% RH non-condensing
- Storage Humidity: 5% to 90% RH non-condensing
- OTHERS
- Package Content:
- • Media Converter TL-FC111B-20
- • Power Adapter
- • Installation Guide
