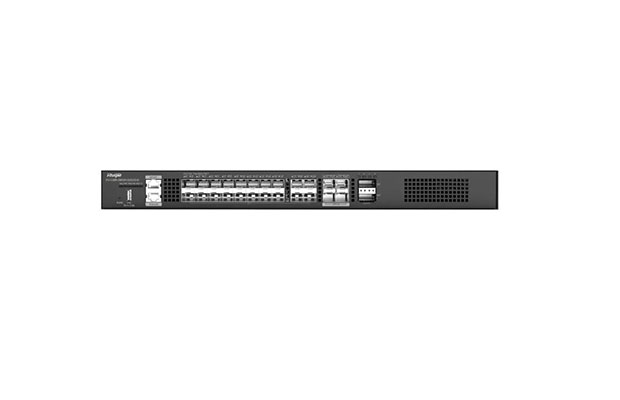

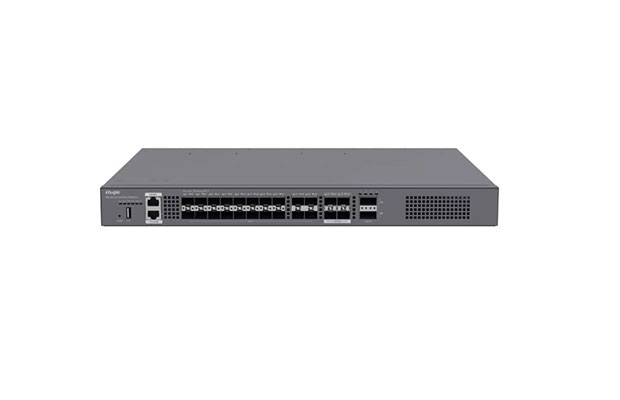

Ruijie RG-CS86-20XS4VS2QXS-D 20-Port 10GE SFP+ Ports L3 Switch
$1,435.00
- Part Number: RG-CS86-20XS4VS2QXS-D
- 20 x 10GE SFP+ ports (Compatible with 2.5GE)
- 4 x 25GE SFP28 ports
- 2 x 40GE QSFP+ ports for uplink
- Packet forwarding rate: 570 Mpps
- Switching capacity: 760 Gbps
- Unit weight: 4.6 kg
- Warranty: 2 years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: RG-CS86-20XS4VS2QXS-D
- 20 x 10GE SFP+ ports (Compatible with 2.5GE)
- 4 x 25GE SFP28 ports
- 2 x 40GE QSFP+ ports for uplink
- Note: One switch provides a maximum of 32 x 10GE ports.
- Module slot: 2 x power module slots
- Module slot: 2 x fan power module slots
- Power module: RG-PA150I-F
- Fan module: M1SFAN I-F (pre-installed 2)
- Fixed management port: 1 x RJ45 console port
- Fixed management port: 1 x RJ45 MGMT port
- USB: 1 x USB port
- Packet forwarding rate: 570 Mpps
- Switching capacity: 760 Gbps
- CPU: Single-core CPU, with a clock speed up to 1.25 GHz
- BootROM: 16 MB (storing boot software for 1+1 boot redundancy)
- Flash memory: 1 GB (storing boot software for 1+1 boot redundancy)
- Memory: 1 GB
- Switch buffer: 4 MB
- MAC address table size: 32,768
- ARP table size: 16,000
- Number of IPv4 unicast routes: 16,000
- Number of IPv4 multicast routes: 4,000
- Number of IPv6 unicast routes: 16,000
- Number of IPv6 multicast routes: 2,000
- Number of ACEs: In: 2,500, Out: 1,000
- Number of VSU members: 2
- Unit dimensions (W x D x H): 440 mm x 330 mm x 43.6 mm (17.32 in. x 12.99 in. x 1.72 in.)
- Shipping dimensions (W x D x H): 545 mm x 500 mm x 232 mm (21.46 in. x 19.69 in. x 9.13 in.)
- Rack height: 1 RU
- Unit weight: 4.6 kg (10.14 lbs) (empty chassis with 2 fan modules)
- Shipping weight: 6.40 kg (14.11 lbs) (empty chassis with 2 fan modules)
