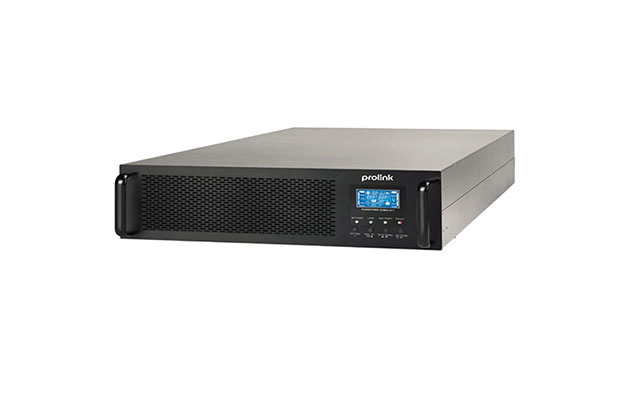

Online UPS PROLINK 3KVA PRO903-ERS, Rack mount, LCD, 7xIEC, USB, RS232, PF0.9 (battery 9AHx6) 2Y
- Part Number: PRO903-ERS
- Capacity: 3KVA: 3000VA / 2700W
- Battery: 12V/9Ah x 6pcs
- UPS type: Rack mount
- Input phase: Single phase with ground
- Front panel: Status LED, function keys, LCD display
- Communication: Smart RS232 and USB port
- LCD indicators: Load level, battery level, AC mode, battery mode, bypass mode, and fault
- Weight: 29.3Kg
- Warranty: 2 Years on Part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: PRO903-ERS
- *GENERAL:
- -UPS Type: Rack / Tower
- -Phase: Single phase with ground
- -Rating (VA): 3000
- -Nominal Power (W): 2700
- -Standard Model Dimension (mm):630 x 438 x 88 [2U] (D x W x H)
- -Weight (kg): 29.3
- *INPUT
- -Connection Type : IEC 320-C20
- -Nominal Voltage: 200/208/220/230/240 VAC
- -Voltage Range: 110-300 VAC (Load at 50%) 160-280 VAC (Load at 100%)
- -Frequency Range: 40 ~ 70 Hz
- -Power Factor: ≥ 0.99
- *OUTPUT
- -Connection Type: 6 x IEC 320-C13 1 x IEC 320-C19
- -Nominal Voltage: 200/208/220/230/240 VAC
- -Voltage Regulation :±1%
- -Frequency Range (Synchronized Range) : 47 ~ 53 Hz or 57 ~ 63 Hz
- -Frequency Range (Batt. Mode): 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz
- -Current Crest Ratio: 3:1
- -Harmonic Distortion: ≤3% THD (Linear load) ≤6% THD (Non-linear load)
- *ALARM & INDICATORS
- -Battery Mode: Sounding every 4 seconds
- -Low Battery: Sounding every second
- -Overload: Sounding twice every second
- -Fault: Continuously sounding
- -LCD: Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
- *BATTERY:
- -Standard Model Type: 12V / 9Ah
- -Numbers : 6
- -Typical Recharge Time: 4 hours recover to 90% capacity.
