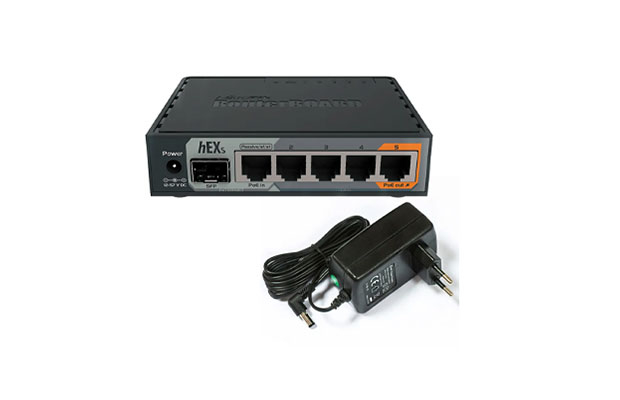

Mikrotik Router hEX S (RB760iGS) 5xGigabite LAN, 1xSFP port Router
$97.00
- Part Number: RB760iGS
- Architecture: MMIPS
- CPU core count: 2
- CPU nominal frequency: 880 MHz
- CPU Threads count: 4
- RouterOS license: 4
- Operating System: RouterOS
- Size of RAM: 256 MB
- Storage size: 16 MB
- 10/100/1000 Ethernet ports: 5
- Fiber: SFP ports: 1
- Warranty: 1 Year on part
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: RB760iGS
- Architecture: MMIPS
- CPU: MT7621A
- CPU core count: 2
- CPU nominal frequency: 880 MHz
- CPU Threads count: 4
- Switch chip model: MT7621A
- Dimensions: 113 x 89 x 28 mm
- RouterOS license: 4
- Operating System: RouterOS
- Size of RAM: 256 MB
- Storage size: 16 MB
- Storage type: FLASH
- MTBF: Approximately 100'000 hours at 25C
- Tested ambient temperature: -40°C to 70°C
- IPsec hardware acceleration: Yes
- Powering
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage: 12-57 V
- Max power consumption: 24 W
- Max power consumption without attachments: 6 W
- Cooling type: Passive
- PoE in: 802.3af/at
- PoE in input Voltage: 12-57 V
- PoE-out
- PoE-out ports: Ether5
- PoE out Passive PoE: up to 57V
- Max out per port output (input 18-30 V): 500 mA
- Max out per port output (input 30-57 V): 500 mA
- Max total out (A): 500 mA
- Ethernet
- 10/100/1000 Ethernet ports: 5
- Fiber
- SFP ports: 1
- Peripherals
- Memory card type: microSD
- Memory Cards: 1
- Number of USB ports: 1
- USB Power Reset Yes
- USB slot type: USB type A
- Max USB current (A): 1
- Other
- PCB temperature monitor: Yes
- Voltage Monitor: Yes
- Mode button: Yes
- Beeper: Yes
- Certification & Approvals
- Certification: CE, EAC, ROHS
- IP: IP20
