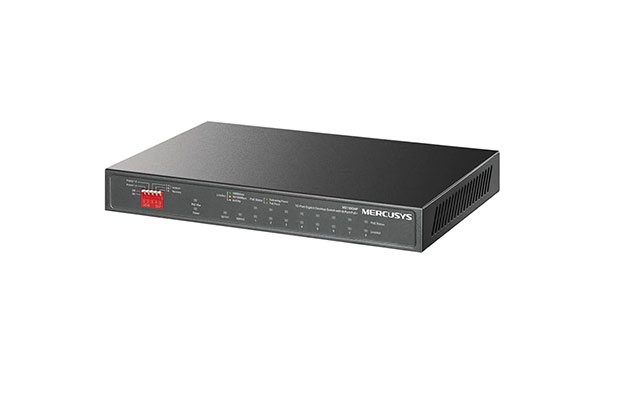

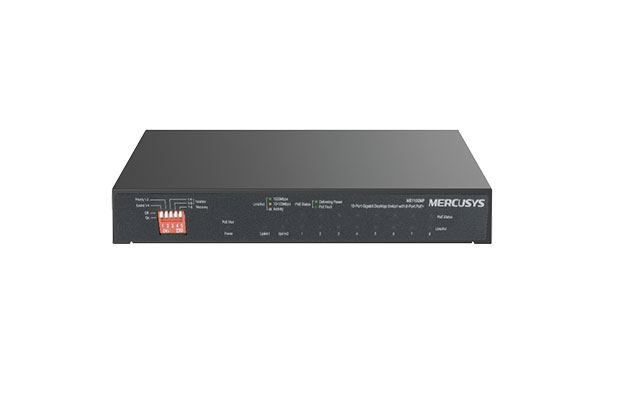

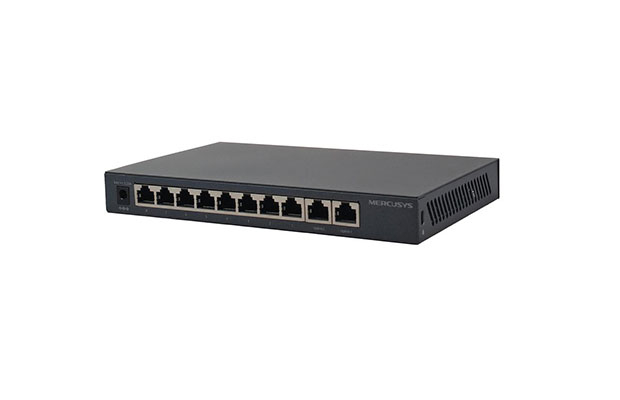

Mercusys MS110GMP 10-Port Gigabit Desktop Switch with 8-Port PoE+
$65.00
- Part Numer: Mercusys MS110GMP
- 8× Gigabit PoE+ ports, and 2× Gigabit Uplink Ports
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 111 W*
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
- Warranty: 2-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Numer: Mercusys MS110GMP
- HardwareDimensions: 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
- PoE Ports: RJ45 Ports
- • Standard: 802.3 af/at compliant
- • PoE Ports: Ports 1–8
- • Power Supply: 111 W
- Interfaces:
- • 8× 10/100/1000 Mbps PoE+ Ports
- • 2× 1000 Mbps RJ45 Ports
- • AUTO Negotiation
- • AUTO MDI/MDIX
- Network Media:
- • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- • EIA/TIA-568 100Ω STP (maximum 100m)
- • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- • EIA/TIA-568 100Ω STP (maximum 100m)
- • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- • EIA/TIA-568 100Ω STP (maximum 100m)
- External Power Supply: External Power Adapter (Output: 54VDC / 2.22A)
- Fan Quantity: Fanless
- Physical Security Lock: Yes
- Jumbo Frame: 16 KB
- Switching Capacity: 20 Gbps
- MAC Address Table: 4K
- Max Power Consumption:
- • 7.37 W (220V / 50Hz with no PD connected)
- • 129.4 W (220V / 50Hz with 111 W PD connected)
- Max Heat Dissipation:
- • 25.13 BTU/h (220V / 50Hz with no PD connected)
- • 441.25 BTU/h (220V / 50Hz with 111 W PD connected)
- Software
- Transfer Method: Store-And-Forward
- Advanced Features:
- • Compatible With IEEE 802.3af/at Compliant PDs
- • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
- • Priority Mode Button (Ports 1–2)
- • Isolation Mode Button (Ports 1–4 / 5-8)
- • PoE Auto Recovery (Ports 1-8)
- • MAC Address Auto-Learning and Auto-Aging
- • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
- Performance
- Packet Forwarding Rate: 14.88 Mpps
- Others
- Certifications: FCC, CE, RoHS
- Package Contents:
- • MS110GMP
- • Power Adapter
- • Installation Guide
- Environment:
- • Operating Temperature: -10℃~40℃ (14℉~104℉)
- • Storage Temperature: -40–70 ℃ (-40–158 ℉)
- • Operating Humidity: 10–90% RH non-condensing
- • Storage Humidity: 5–90% RH non-condensing.
