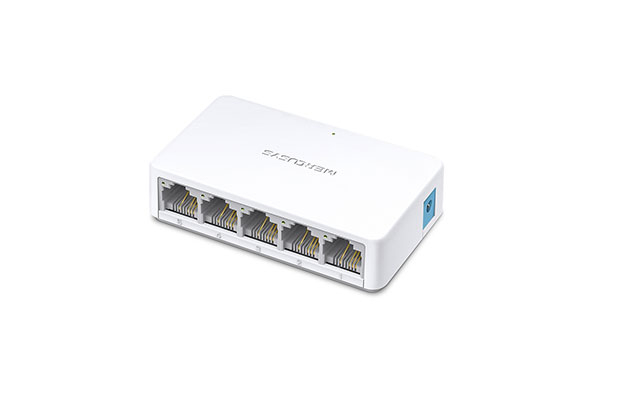

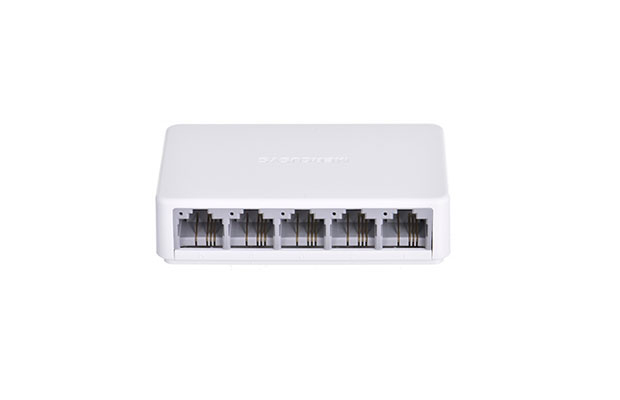

Mercusys MS105 5-Port 10/100Mbps Desktop Switch
$9.00
- Part Number: Mercusys MS105
- Five 10/100Mbps auto-negotiation RJ45 ports with auto MDI/MDIX supported
- Easily wired network expansion
- Compact design for flexible arrangement
- Plug and play setup, no configuration required
- Warranty: 2-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: Mercusys MS105
- Hardware
- Standards and Protocols:
- - IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- - CSMA/CD
- Dimensions: 82 x 49 x 21 mm
- Interfaces: 5 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX
- External Power Supply: 5V/0.4A
- Fan Quantity: Fanless
- Data Rates:
- - 10/100Mbps at half duplex
- - 20/200Mbps at full duplex
- Buffer Capacity: 768Kb
- Jumbo Frame: 2KB
- Switching Capacity: 1Gbps
- LED: Ethernet (1, 2, 3, 4, 5), Power
- Software
- Transfer Method: Store and forward
- Others
- Certifications: CE, RoHS
- Package Contents

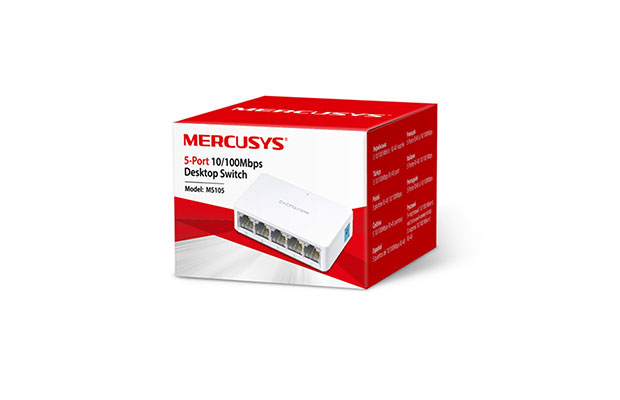

- 1. 5-Port 10/100Mbps Desktop Switch (MS105)
- 2. Power Adapter
- 3. Quick Installation Guide.
