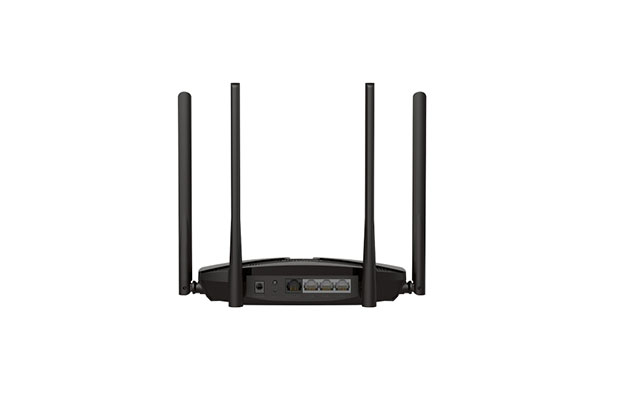

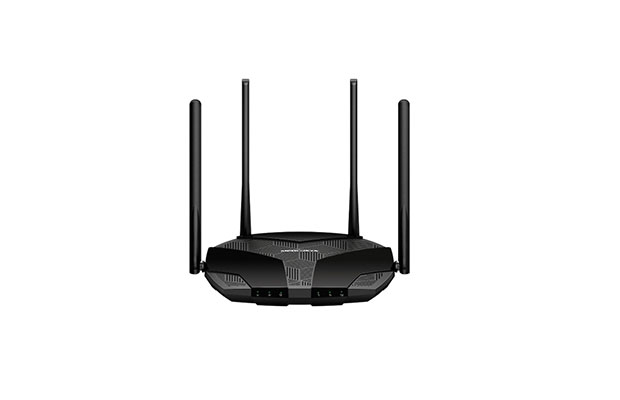

Mercusys MB235-4G 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
$89.00
- Part Numer: Mercusys MB235-4G
- 4G+ network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
- Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
- Simultaneous Connection – Enjoy and share internet access with up to 64 Wi-Fi devices.
- Maximum Network Coverage – Enjoy stable and efficient connections to every device thanks to the four external antennas. LTE antennas can be replaced with high-power alternatives for enhanced 4G LTE signal strength and coverage.
- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.
- EasyMesh Compatible – Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
- Warranty: 2-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Numer: Mercusys MB235-4G
- Wireless
- Network Type EU:
- FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
- TDD-LTE: B38/B40 (2600/2300 MHz)
- HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
- Wi-Fi Class: AC1200
- Wi-Fi (2.4 GHz): 300 Mbps
- Wi-Fi ( 5 GHz): 867 Mbps
- Wireless Standards: IEEE 802.11ac/a/b/g/n
- Frequency: 5 GHz, 2.4 GHz
- Reception Sensitivity:
- 11g 6Mbps: -95dBm
- 11g 54Mbps: -77dBm
- 11n HT20 MCS7: -74dBm
- 11n HT40 MCS7: -71dBm
- 11a 6Mbps: -92dBm
- 11a 54Mbps: -75dBm
- 11ac VHT20 MCS8: -70dBm
- 11ac VHT40 MCS9: -65dBm
- 11ac VHT80 MCS9: -61dBm
- Transmission Power
- 2.4 GHz < 20dBm (EIRP)
- 5 GHz < 23dBm (EIRP)
- Wireless Security: WPA-PSK / WPA2-PSK / WPA3-SAE
- Wireless Functions:
- - smart connect
- - WPS
- - Wireless Schedule
- Hardware
- Dimensions: 209 × 171.9 × 41.7 mm (8.2 × 6.8 × 1.6 in)
- Interfaces:
- -1× Gigabit LAN/WAN Port
- -3× Gigabit LAN Ports
- -1× Nano SIM Card Slot
- Antenna:
- 2× External Detachable 4G LTE Antennas,
- 2× External Wi-Fi Antennas
- Button: WPS, Reset Button
- External Power Supply: 12V/1A
- LED:
- 1× Power
- 1× Internet
- 1× LAN
- 3× Signal
- LTE Standard : Cat 6, 300/50Mbps DL/UL
- Others:
- Package Contents:
- 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB235-4G)
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
- Environment:
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~60°C (-40°F~140°F)
- Operating Humidity: 10%~90% Non-Condensing
- Storage Humidity: 5%~90% Non-Condensing.
