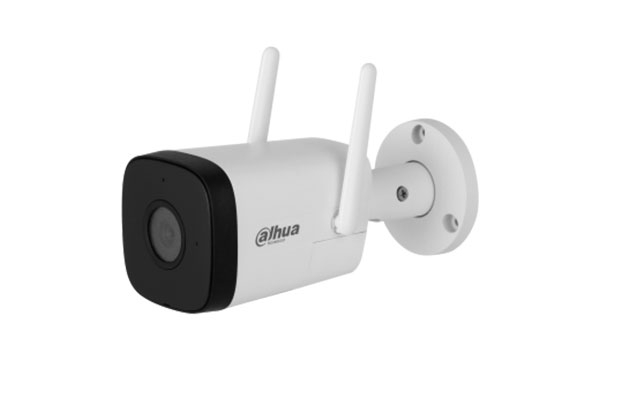

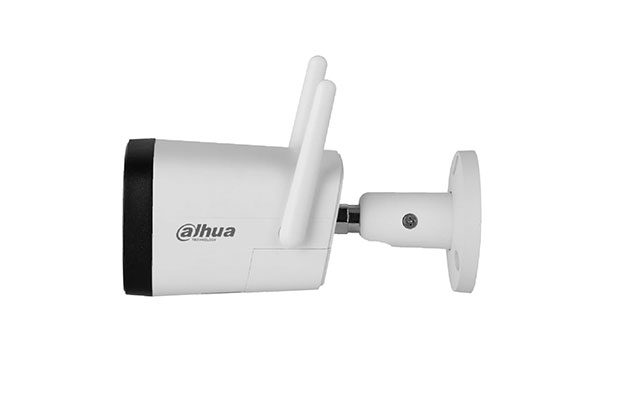

Dahua IPC-HFW1430DT-STW 4MP IR Fixed-focal WiFi Bullet Network Camera
$53.00
- Part Number: IPC-HFW1430DT-STW
- 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560 × 1440) @20 fps, and max.supports 3 MP (2304 × 1296) @25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, and the max. illumination distance is 30 m.
- SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access.
- Built-in dual-antenna 2.4G Wi-Fi that covers a range of up to 150 m in an open area.
- Supports max.256 G Micro SD card. Built-in MIC and speaker.
- 12 VDC power supply.
- IP67 protection.
- Warranty: 1-year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: IPC-HFW1430DT-STW
- Camera
- Image Sensor: 1/3" CMOS
- Max. Resolution: 2560 × 1440
- ROM: 16 MB
- RAM: 64 MB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
- Min. Illumination: 0.03 [email protected] (Color, 30 IRE), 0.003 [email protected] (B/W, 30 IRE, 0 lux (Illuminator on)
- S/N Ratio: > 56 dB
- Illumination Distance: 30 m (98.43 ft)
- Illuminator On/Off Control: Auto; Manual
- Illuminator Number: 1 (IR LED)
- Pan/Tilt/Rotation Range: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
- Lens
- Lens Type: Fixed-focal
- Lens Mount: M12
- Focal Length: 2.8 mm; 3.6 mm
- Max. Aperture: F2.0
- Field of View
- 2.8 mm: Horizontal: 90°; Vertical: 50°; Diagonal: 107°
- 3.6 mm: Horizontal: 76°; Vertical: 40°; Diagonal: 92°
- Iris Control: Fixed
- Close Focus Distance: 2.8 mm: 1.0 m (3.28 ft), 3.6 mm: 1.4 m (4.59 ft).
- DORI Distance: 2.8 mm, 3.6 mm
- Detect: 68.0 m (223.10 ft), 85.2 m (279.53 ft)
- Observe: 27.2 m (89.24 ft), 34.1 m (111.88 ft)
- Recognize: 13.6 m (44.62 ft), 17.0 m (55.77 ft)
- Identify: 6.8 m (22.31 ft), 8.5 m (27.89 ft)
- Video
- Video Compression: H.264B; H.264; H.264H; H.265
- Smart Codec: Smart H.265+; Smart H.264+
- Video Frame Rate
- Main stream: 2560 × 1440 (1–20 fps)
- Sub stream: 640 × 480@(1–25 fps), 640 × 480@(1–30 fps)
- *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
- Stream Capability: 2 streams
- Resolution: 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720)
- Bit Rate Control: CBR/VBR
- Video Bit Rate: H264: 24 kbps–4096 kbps, H265: 9 kbps–4096 kbps
- Day/Night: Auto (ICR)/Color/B/W
- BLC: Yes
- WDR: DWDR
- White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
- Gain Control: Auto
- Noise Reduction: 3D NR
- Motion Detection: OFF/ON (4 areas, rectangular)
- Smart Illumination: Yes
- Image Rotation: 0°/180°
- Mirror: Yes
- Audio
- Built-in MIC: Yes
- Built-in Speaker: Yes
- Audio Compression: G.711a; G.711Mu
- Alarm
- Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change
- Network
- Network Port: RJ-45 (10/100 Base-T)
- Wi-Fi: IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G
- Wireless Range: Up to 150 m (The performance varies based on actual environment)
- SDK and API: Yes
- Cyber Security: Video encryption; configuration encryption; Digest;
- WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
- Network Protocol: IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
- Interoperability: ONVIF (Profile S/Profile T); CGI; P2P
- User/Host: 6 (Total bandwidth: 36 M)
- Storage: Micro SD card (support max. 256 GB)
- Browser: IE, Chrome, Firefox
- Management Software: Smart PSS; DSS; DMSS
- Mobile Client: iOS; Android
- Certification
- Certifications: CE-LVD: EN62368-1;
- CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
- CE-RED: Radio Equipment Directive 2014/53/EU;
- FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C
- Power
- Power Supply: 12 VDC
- Power Consumption Basic: 2.1 W (12 VDC)
- Max. (H.265+IR intensity):6.1 W (12 VDC)
- Environment
- Operating Temperature: –30 °C to +50 °C (–22 °F to +122 °F)
- Operating Humidity: ≤ 95%
- Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
- Protection: IP67
- Structure
- Casing: Front cover: Plastic, Rear: Plastic, Bracket: Metal
- Product Dimensions: 180 mm × 83.3 mm × 114.8 mm (7.09" × 3.28" × 4.52")
- Net Weight: 350.1 g (0.77 lb)
- Gross Weight: 588.1 g (1.30 lb).
