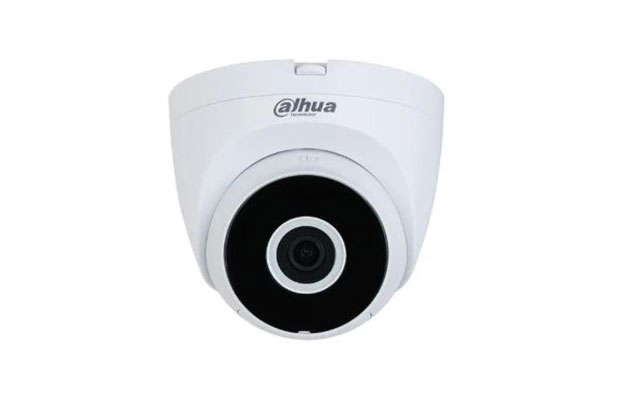

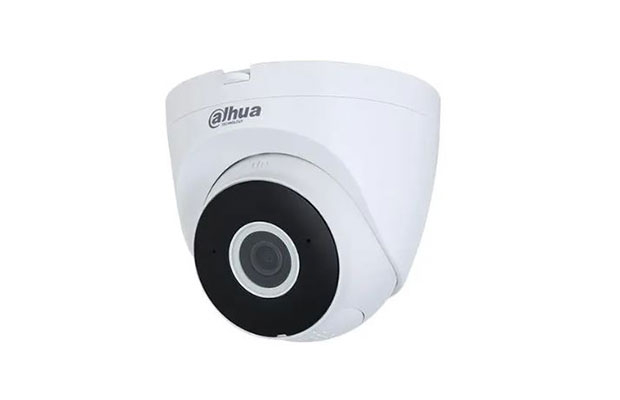

Dahua IPC-HDW1230DT-STW 2MP IR Fixed-focal WiFi Eyeball Network Camera
$47.00
- Part Number: IPC-HDW1230DT-STW
- 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
- Max. 2 MP (1920 × 1080) @25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, and the max. illumination distance is 30 m.
- DWDR, 3D NR, BLC, digital watermarking
- Two way talk
- Built-in dual-antenna 2.4G Wi-Fi that covers a range of up to 150m(Bullet)/ 120m(Eyeball) in an open area
- Supports max.256 G Micro SD card.Built-in MIC and speaker
- IP67 protection
- Warranty: 1-year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: IPC-HDW1230DT-STW
- Camera
- Image Sensor: 1/2.8” CMOS
- Effective Pixels: 1920(H) x1080(V)
- RAM/ROM: 64MB/16MB
- Scanning System: Progressive
- Electronic Shutter Speed: Auto/Manual, 1/3~1/100000s
- Minimum Illumination: 0.025 [email protected] (Color, 30 IRE)
- 0.0025 [email protected] (B/W, 30 IRE)
- 0 lux (Illuminator on)
- S/N Ratio: More than 56dB
- IR Distance: Distance up to 30m(98.4ft)
- IR On/Off Control: Auto/ Manual
- IR LEDs: 1
- Pan/Tilt/Rotation Range: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
- Lens
- Lens Type: Fixed
- Mount Type: M12
- Focal Length: 2.8 mm, 3.6 mm
- Max. Aperture: F2.0
- Angle of View: 2.8 mm: Horizontal: 100°; Vertical: 53°; Diagonal: 120° & 3.6 mm: Horizontal: 86°; Vertical: 43°; Diagonal: 102°
- Focus Control: Fixed
- Close Focus Distance: 2.8 mm: 0.6 m (1.97 ft), 3.6 mm: 1.0 m (3.28 ft)
- DORI Distance:
- Lens: 2.8 mm, 3.6 m
- Detect: 46.9 m (153.87 ft), 58.8 m (192.91 ft)
- Observe: 18.8 m (61.68 ft), 23.5 m (77.10 ft)
- Recognize: 9.4 m (30.84 ft), 11.8 m (38.71 ft)
- Identify: 4.7 m (15.42 ft), 5.9 m (19.36 ft)
- Video
- Compression Smart Codec: H.264B; H.264; H.264H; H.265, Smart H.265+; Smart H.264+
- Streaming Capability: 2 Streams
- Resolution: 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720)
- Frame Rate
- Main stream: 1920 × 1080 (1–25/30 fps)
- Sub stream: 640 × 480@ (1–25 fps)
- 640 × 480@ (1–30 fps)
- *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
- Bit Rate Control: CBR/VBR
- Bit Rate: H.264: 24 kbps–4096 kbps, H.265: 9 kbps–4096 kbps
- Day/Night: Auto (IR-Cut) / Color / B/W
- BLC Mode: BLC /DWDR
- White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
- Gain Control: Auto
- Noise Reduction: 3D DNR
- Motion Detetion: OFF/ON (4 areas, rectangular)
- Smart Illumination: Yes
- Image Rotation: 0°/180°
- Mirror: Yes
- Audio
- Compression: Built-in MIC
- Built-in Speaker: Yes
- G.711a; G.711Mu: Yes
- Network
- Ethernet: RJ-45 (10/100Base-T)
- Wi-Fi: IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G
- Wireless Range: Up to 120 m (The performance varies based on actual environment)
- SDK and API: Yes
- Protocol: IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
- Cyber Security: Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
- Interoperability: ONVIF (Profile S/Profile T); CGI; P2P
- Max. User Access: 6 (Total bandwidth: 36 M)
- Edge Storage: Micro SD card (support max. 256 GB)
- Web Viewer: IE, Chrome, Firefox
- Management Software: Smart PSS; DSS; DMSS
- Smart Phone: IOS, Android
- Certifications
- Certifications: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive
- 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC:47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C
- Electrical
- Power Supply: 12V DC
- Power Consumption: Basic: 1.9 W (12 VDC)
- Max. (H.265+IR intensity): 6.1 W (12 VDC)
- Environmental
- Operating Conditions: –30 °C to +60 °C (–22 °F to +140 °F)
- Strorage Conditions: –30 °C to +60 °C (–22 °F to +140 °F) ≤ 95%
- Ingress Protection: IP67
- Construction
- Casing: Inner core: Metal + Plastic
- Cover: Plastic
- Dimensions: Ø109.9 mm × 102.2 mm (Ø4.33" × 4.02")
- Net Weight: 352 g (0.77 lb)
- Gross Weight: 530 g (1.17 lb)
