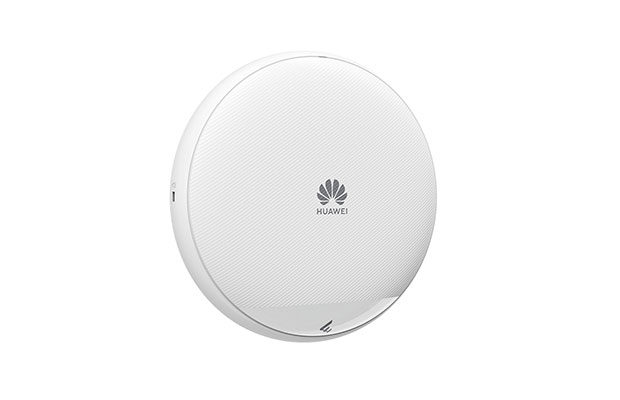

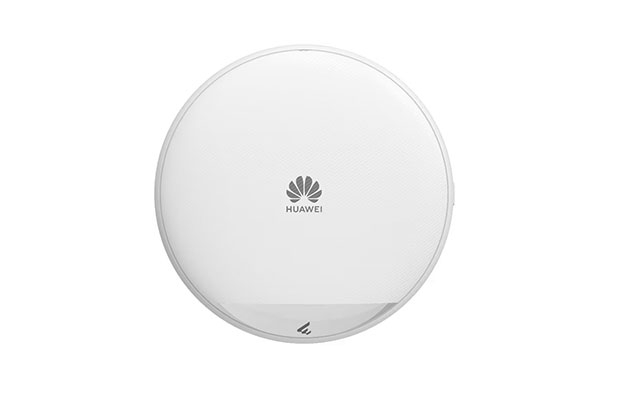

HUAWEI eKitEngine AP572 Wi-Fi 7 6450Mbps Wireless Access Point
$169.00
- Part Number: AP572
- Wi-Fi standard: Wi-Fi 7
- Device Rate: 6450Mbps
- Access Users: 130users
- Dual RF 6 streams
- 2.4GHz: 2x2 Radio 1 (5 GHz): 4x4
- 1x2.5GE electrical uplink + 1xGE electrical uplink
- Warranty: 2-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: AP572
- Wi-Fi standard: 2.4 GHz: 802.11b/g/n/ax/be 5 GHz:802.11a/n/ac/ac Wave 2/ax/be
- Installation Type: Ceiling
- Optimal Signal Distance (m): 30m
- Recommended Number of Access Users: 130users
- Device Rate: 6.45 Gbps

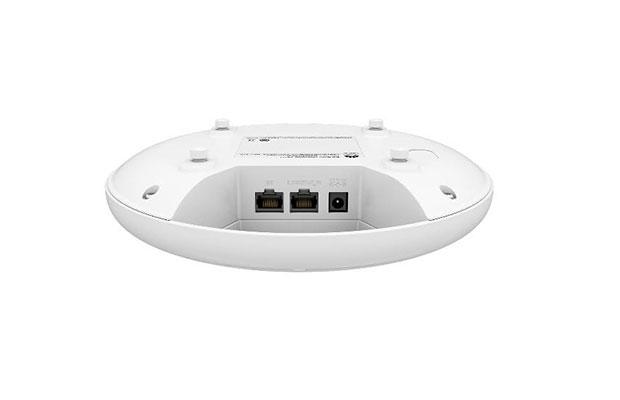

- Maximum number of physical ports on the entire device: 2.5GE (RJ45) x 1, 100M/1000M/2500M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing
- Radio number: 2
- Maximum channel bandwidth [MHz]: Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz
- Maximum transmit power: 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz (4x4): 20 dBm/chain 26 dBm (combined power)
- MIMO spatial streams: Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 4x4
- Maximum power consumption [W]: 14.8 W (excluding USB)
- Input voltage range [V]: DC: 12 V ± 10% PoE: 802.3at/af
- Dimensions without packaging (H x W x D) [mm(in.)]: Diameter x depth: 220 mm x 45 mm (8.66 in. x 1.77 in.)
- Dimensions with packaging (H x W x D) [mm(in.)]: 72 mm x 260 mm x 255 mm (2.83 in. x 10.24 in. x 10.04 in.)
- Weight without packaging [kg(lb)]: 0.730 kg (1.61 lb)
- Weight with packaging [kg(lb)]: 1.215 kg (2.68 lb)
- Long-term operating temperature [°C(°F)]: –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
- Long-term operating relative humidity [RH]: 5% RH to 95% RH, non-condensing
- Radio interface Built-in smart antennas
- Antenna gain: 2.4 GHz: 4 dBi/chain (peak gain) 2 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain)
- Operating frequency band: 2.4GHz,5GHz
- Warranty: 2-years on part.
