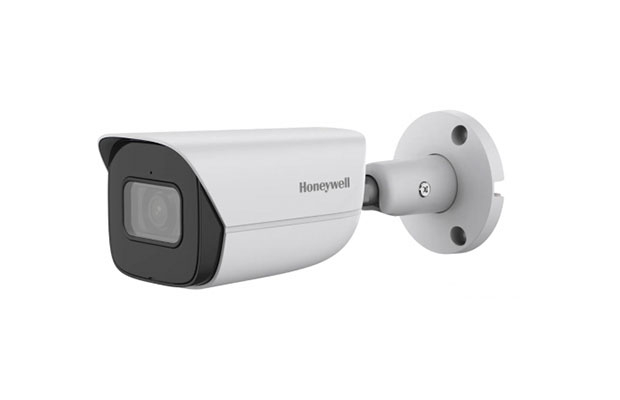

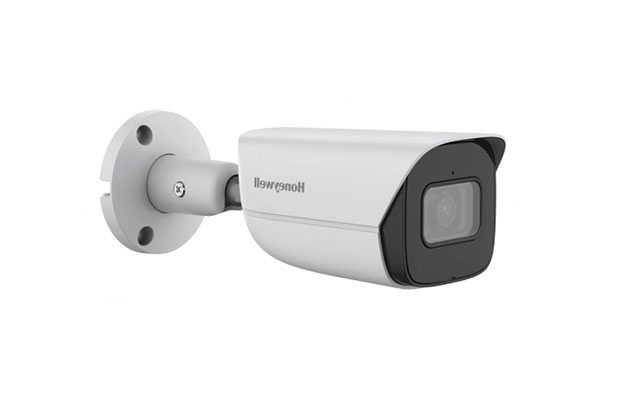

Honeywell HBW4PER1V 4MP Outdoor Network Bullet Camera
$185.00
- Part Number: HBW4PER1V
- Network WDR 4 MP IR Bullet Camera
- Video Standard: NTSC / PAL
- Scanning System: Progressive
- Image Sensor: 1/3” 4 Megapixel progressive CMOS
- Number Of Pixels(H × V): 2688 x 1520
- Warranty: 1Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: HBW4PER1V
- OPERATIONAL
- Video Standard: NTSC / PAL
- Scanning System: Progressive
- Image Sensor: 1/3” 4 Megapixel progressive CMOS
- Number Of Pixels(H × V): 2688 x 1520
- Minimum Illumination: 0.005 Lux/F1.6(color,30IRE), 0 Lux with IR ON
- S/N Ratio: More than 55 dB
- Electronic Shutter Speed: 1 / 3~1 / 100000s
- IR Distance: Up to 50m(164.0 ft), depending on scene reflectance
- IR Light Control: Manual / Smart IR / OFF
- IR Light Number: 1
- Day/Night: Auto(ICR) / Color / B&W
- Backlight Compensation: BLC / HLC / WDR
- Wide Dynamic Range: 120 dB
- White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Customized Region
- Gain Control: 0~100
- Noise Reduction: 3D DNR
- Privacy Masking: Off / On (4 Areas, Rectangle)
- Motion Detection: Off / On (4 Zones, Rectangle)
- Region Of Interest: Off / On (4 Zones)
- Lens: 3.6 mm Fixed, F1.6
- Angle Of View: H: 84°, V: 45°
- Alarm Input/Output: 1 In; 1 Out
- VIDEO
- Compression: H.265 / H.264 / Smart Codec / MJPEG (Sub Stream)
- Resolution: 4M (2688 x 1520); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576 / 704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)
- Frame Rate Main Stream: 2688 x 1520 / 2304 x 1296 / 1920 x 1080 / 1280 x 960 / 1280 x 720@ (1 ~ 25/30 fps) Sub Stream: 704 x 576 / 640 x 480 / 352 x 288@ (1 ~ 25 fps) ; 704 x 480 / 640 x 480 / 352 x 240@ (1 ~ 30 fps) Third Stream: 1280 x 720 / 704 x 576 / 640 x 480@ (1 ~ 25 fps); 1280 x 720 / 704 x 480 / 640 x 480@ (1 ~30 fps)
- Bit Rate Control: CBR / VBR Bit
- Rate H.264: 3 kbps8192 kbps H.265: 3 kbps8192 kbps
- Analytics: Motion Detection, Video Tamper, Scene Change, Smart Motion Detection, Smart Tripwire, Smart Intrusion, Face Detection
- AUDIO
- Interface: 1 In;1 Out; Built-in Mic
- NETWORK
- Ethernet: RJ45 (10 / 100 BaseT)
- Supported Web Browsers: Internet Explorer (11.0+)
- Supported OS: Windows® 7 32-bit / 64-bit; Windows® 10 32-bit / 64-bit Protocols* HTTP; HTTPs; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; DHCP; DNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; Bonjour;IEEE 802.1x; Multicast; ICMP; IGMP; TLS
- Compatibility: ONVIF Profi le S / G / Q / T
- Maximum Users Access: 20 users
- Security: User account and password protection HTTPS, IP Filter, Digest authentication, User access log, TLS1.2 only, AES128 / 256, SSH / Telnet closed, sFTP by default, PCIDSS compliance
- Event: No SD card, SD card error, Capacity warning, Network disconnection, IP confl ict, Illegal access
- Micro SD: Supports max. 256 GB Micro SD card
- ELECTRICAL
- Power Supply: DC12V PoE (802.3 af)(Class 0)
- Power Consumption: <5.4W
- MECHANICAL
- Dimensions: 192.7 mm x 70.5 mm x 66.4 mm
- Product Weight: 0.59 kg (1.3 lb)
- Package Weight: 0.78 kg (1.7 lb)
- Construction: Die-cast aluminum housing with powder coat
- Construction: Color RAL 9003 (White)
- ENVIRONMENTAL
- Operating Temperature: 40°C to 60°C ( 40°F to 140°F)
- Relative Humidity: 0% to 95%, non-condensing
- Ingress Protection: IP66
- REGULATORY
- Emissions: FCC Part 15B, EN55032
- Immunity: EN 501304
- Safety: UL609501, EN 623681
- RoHS: EN 50581.
