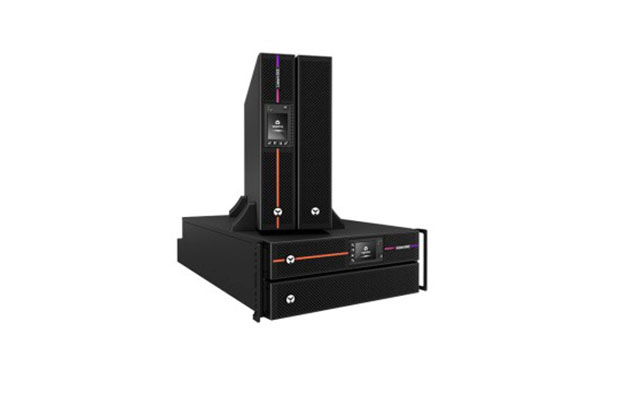

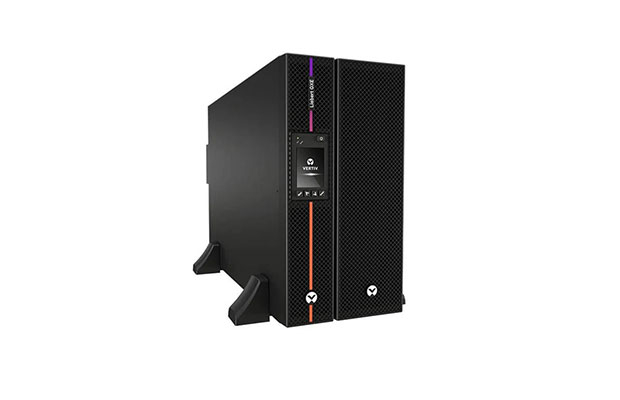

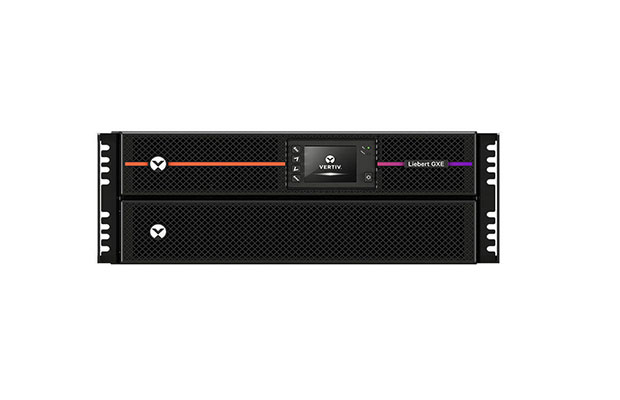

Vertiv Liebert GXE 10KVA / 10KW 1ph 230V 5U Extended Run Rack/Tower, Rail Kit Bundled, GXE3-10KIRT5UXL (01203156)
$3,945.00
- Part Number: GXE3-10KIRT5UXL
- Power Rating (VA/W): 10000VA / 10000W
- Form Factor: Rack / Tower (5U)
- Output Voltage: 220/230 (default) /240
- Waveform: Pure Sine Wave
- Shipping (WxDxH): 600 x 800 x 530
- Weight: 102 kg
- Warranty: 2-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: GXE3-10KIRT5UXL
- Power Rating (VA/W): 10000VA / 10000W
- Form Factor: Rack / Tower (5U)
- Unit (WxDxH): 430 x 700 x 217mm
- Weight: 102 kg
- Voltage Range Without Battery Operation: 100 - 288V
- Voltage Range Without Battery Operation: 178 - 288V
- Frequency Range (Hz, autosensing): 40 - 70 Hz
- Input Wiring: Hardwired (terminals L-N-G)
- Surge Protetion (J): 600
- Output Voltage: 220/230 (default) /240
- Waveform: Pure Sine Wave
- Efficiency (online mode, max.): 94%
- Efficiency (ECO mode, max.): 98%
- Type: Valve-regulated, non-spillable, lead-acid
- Recharge Time (internal batteries, typical): 3 hr @ 90%
- Backup Time (50% load, minutes): 3.5
- Backup Time (50% load, minutes): 9
- Operating Temperature (ºC): 0 to 40ºC
- Storage Temperature (ºC, without battery inside): 0 to 40ºC
- Relative Humidity (operation, non-condensing): 5% to 95%
- Operating Altitude (m), without derating (**): 2000
- Audible Noise (line mode): <58dBA
- Warranty: 2-years on part.
