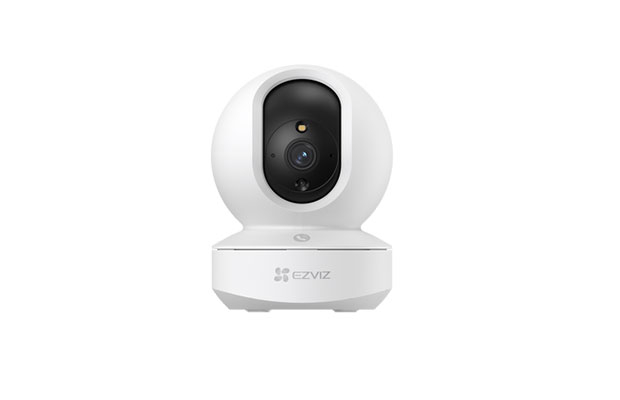

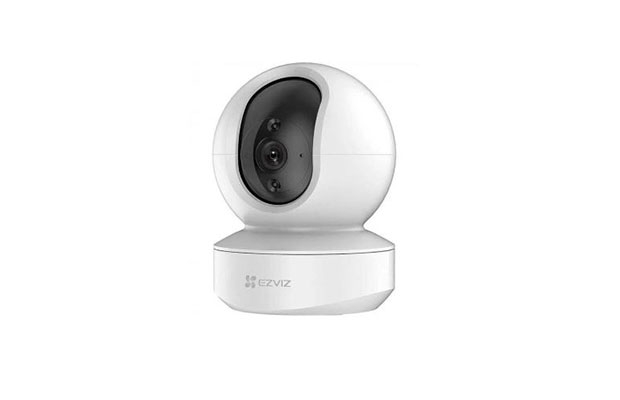

EZVIZ TY1 Pro 2K (3MP) Smart Wi-Fi Pan & Tilt Camera, 360° Panoramic View, Auto-Tracking,Smart Color Night Vision (1Yr)
$35.00
- Part Number: CS-TY1-C0-8B4WF
- Image sensor: F2.2@1/3" Progressive Scan CMOS
- Resolution: 2K (3MP)
- Resolution: 2560 × 1440
- Warranty: 1 year on part
- *** Not included MicroSD card
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: CS-TY1-C0-8B4WF
- Camera
- Image sensor: F2.2@1/3" Progressive Scan CMOS
- Shutter Speed: Self-adaptive shutter
- Lens: 4mm, view angle: 124°(Diagonal), 85° (Horizontal), 55°(Vertical)
- Lens Mount: M12
- Day & Night: IR-cut filter with auto-switching
- DNR: 3D DNR
- WDR: Digital WDR
- Compression
- Video Compression: H.265 / H.264
- Video Bit Rate: Quad HD, Full HD, HD, Standard.Adaptive bit rate.
- image
- Max. Resolution: 2560 × 1440
- Frame Rate: Max. 20 fps; Self-Adaptive during network transmission
- Network
- Smart Alarm: Human Motion detection
- Wi-Fi Pairing: AP pairing
- Protocol: EZVIZ cloud proprietary protocol
- Interface Protocol: EZVIZ cloud proprietary protocol
- Interface
- Storage: Micro SD card slot (Max. 256G)
- Power: Micro USB
- Wired Network: RJ45 × 1 (10M/100M self-adaptive Ethernet port)
- Wi-Fi
- Standard: IEEE802.11b, 802.11g, 802.11n
- Frequency Range: 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth: Supports 20MHz
- Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- Transmission Rate: 11b: 11Mbps, 11g :54Mbps, 11n :72Mbps
- Output Power(EIRP): 19 dBm
- Antenna Gain: 1.9 dBi
- General
- Operating Conditions: -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
- Power Supply: DC 5V/2A
- Power Consumption: Max. 5W
- IR Range: Max. 10 m (32.81 ft)
- Dimensions: 88 × 88 × 119 mm (3.46 × 3.46 × 4.67 inch)
- Packaging Dimensions: 103 × 103 × 186 mm (4.06 × 4.06 × 7.32 inch)
- Bare Weight: 259g (9.14oz)
- In the box:
- - TY1 Pro 3MP Camera
- - Base
- - Screw Kit
- - Power Cable 3m (9.8 ft.)
- - Drill Template
- - Power Adapter
- - Quick Start Guide
- - Regulatory Information
