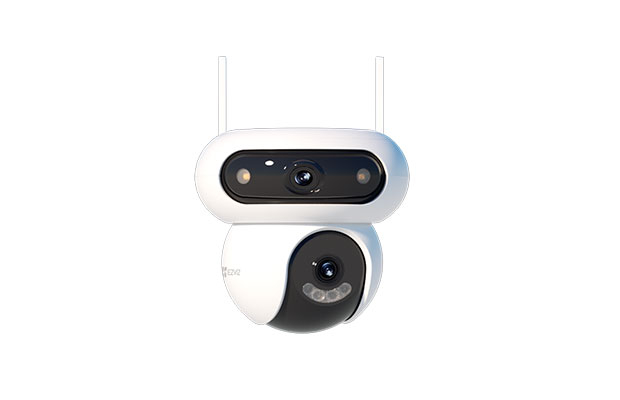

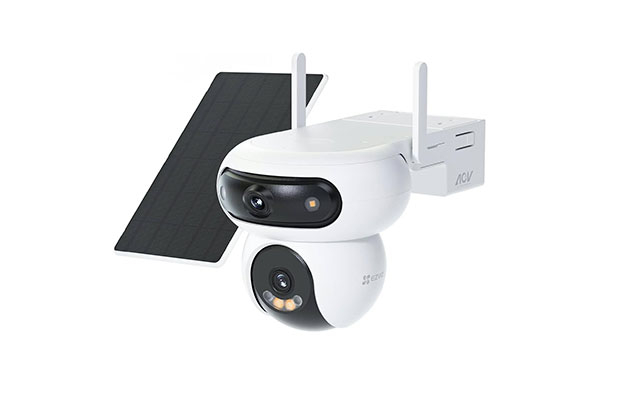

EZVIZ HB90x (4MP+4MP W4GA) 4G 4K Solar Battery Camera Kit
$159.00
- Part Number: CS-HB90x/SP
- Dual Connectivity with 4G and Wi-Fi 6
- 2K+ & 2K+ Dual Lenses
- Always-On Video Mode 2.0
- Dual Rotations for Ultra-Flexible Vision
- 8W High-Efficiency Solar Panel Included
- 10,400 mAh Rechargeable Lithium Battery
- Co-Detection for Auto Smart Tracking
- Two-Way Talk
- Weatherproof Design
- ColorFULL Night Vision under Ultra-Low Light
- Warranty: 1-year on Parts.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: CS-HB90x/SP-R100
- Camera
- Image Sensor: 1/2.8” 4-Megapixel Progressive Scan CMOS Sensor
- Shutter Speed: Self-adaptive shutter
- Lens Top Lens: 2.8mm @ F1.2, Field of view : Diagonal 122°, Horizontal 105°, Vertical 58° Bottom Lens: 6mm @ F1.2, Field of view : Diagonal 65°, Horizontal 56°, Vertical 30°
- PT Angle: Top Lens: Pan: 220°, Tilt: 10° Bottom Lens: Pan: 324°, Tilt: 90°
- Minimum Illumination: 0.01 Lux @ (F1.2, AGC ON ), 0 Lux with IR (* data is obtained from EZVIZ laboratories)
- Day & Night: IR-cut filter with auto switch
- DNR: 3D DNR
- Night Vision Distance: 35 m (When two lenses point in the same direction)
- Video & Audio
- Max Resolution: 2K+ (2K+ (2560 × 1440))
- Frame Rate: Max. 15fps; Self-adaptive during network transmission
- Video Compression: H.265 / H.264
- Video Bit Rate: Quad HD; HD; Standard; Adaptive bit rate
- Audio Bit Rate: Self-adaptive
- Max. Bitrate: 2 Mbps (Total)
- Network
- Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n , 802.11ax
- Frequency Range: 2.4 GHz ~ 2.4835 GHz
- Channel Bandwidth: Support 20MHz
- Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- Transmission Rate: 11b: 11Mbps, 11g :54Mbps, 11n :72Mps, 11ax: 114Mbps
- Wi-Fi Pairing: AP pairing
- Minimum Network Requirement: 4 Mbps
- Bluetooth: Supports
- Frequency Bands: IN LTE-FDD: B1/B3/B5/B8, IN LTE-TDD: B34/B38/B39/B40/B41, EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28, LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66
- Function
- Smart Alarm: AI-Powered Human Shape Detection AI-Powered Vehicle Shape Detection
- Auto Tracking: Supports
- Customized Alert Area: Supports
- Two-Way Talk: Supports
- General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
- Storage
- Local Storage: Supports microSD card (max. 512 GB)
- Cloud Storage: EZVIZ CloudPlay storage (subscription required)
- General
- Operating Conditions: -20°C to 50°C ( -4°F to 122 °F ) Humidity 95% or less (non-condensing)
- Battery Capacity: 10,400 mAh
- IP Grade: IP65
- Power Supply: DC 5 V / 2 A (Adapter needs to be purchased separately)
- Power Consumption: Max. 10 W
- Dimensions: 135 × 145 × 229.5 mm (5.32 × 5.71 × 9.04 inch)
- Packaging Dimensions: 300 × 204 × 175 mm (11.81 × 8.03 × 6.89 inch)
- Weight: Net weight for CB90x: 862g, Net weight for Solar Panel 8W: 428g, With package: 1902g
- Specifications
- Model: CS-PSP8-R100-3M
- Performance Parameter
- Power Voltage: 5.4 V ± 5%
- Power Current: 1.48 A ± 5%
- Open Circuit Voltage: 6.8 V ± 5%
- Short Circuit Current: 1.64 A ± 5%
- Max. Power: 8 W ± 5%
- Interface: Type-C
- Solar Cell Efficiency: ≥22%
- Operating Conditions: -20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing)
- IP Grade: IP65
- Mechanical Data
- Solar Cell Type Monocrystalline solar cells
- Power Cable Length: 3 meter
- Product Dimensions: 267.3 × 186.5 × 17.5 mm
- Weight: 428 g
- In the box
- In the box:
- - HB90x Dual 4G Camera
- - Solar Panel 8W
- - Drilling Template
- - Adjustable Mounting Bracket
- - Screw Kit × 2
- - Power Cable
- - Regulatory Information × 4
- - Quick Start Guide × 2
- Certifications
- Certifications: CE / REACH / WEEE / RoHS
- Warranty: 1-year on Part.
