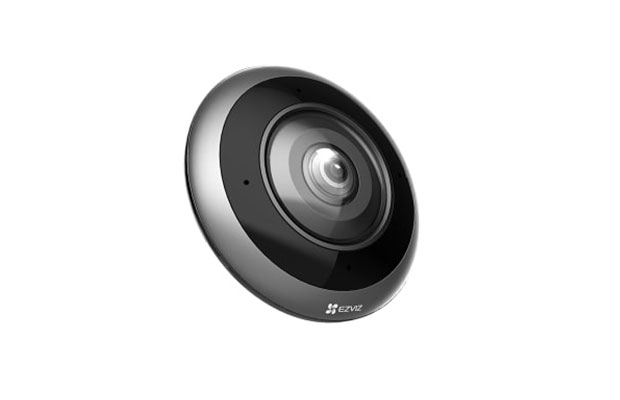

EZVIZ E4p 3K⁺ (6MP) Smart Wi-Fi Panoramic Fisheye Camera
$78.00
- Part Number: CS-E4p (6MP)
- 3K⁺ Resolution
- 360° Panoramic View
- IR Night Vision (up to 10 m / 33 ft)
- Multiple Split-Screen Viewing Modes
- AI-Powered Human Shape Detection
- Loud Noise Detection
- Two-Way Talk
- Sleep Mode for Privacy Protection
- H.265 Video Compression
- Warranty: 1-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: CS-E4p (6MP)
- Model: CS-E4p-R100-8C6WKF
- Compression
- Image Sensor: 1/2.8” Progressive Scan CMOS
- Shutter Speed: Self-adaptive shutter
- Lens: M12
- Day & Night: IR-cut filter with auto switch
- DNR: 3D DNR
- WDR: Digital WDR
- Compression
- Image Sensor: 1/2.8” Progressive Scan CMOS
- Shutter Speed: Self-adaptive shutter
- Image
- Max. Resolution: 3K⁺ (2320 × 2320)
- Frame Rate: Max. 25 fps
- Network
- Smart Alarm: Motion Detection, AI-Powered Human Shape Detection
- Wi-Fi Pairing: AP pairing
- Protocol: EZVIZ Cloud Proprietary Protocol
- Interface
- Storage Supports: microSD card (max. 512 GB)
- Power: Type-C
- Wi-Fi
- Standard: IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
- Frequency Range: 2.4G: 2.412 GHz ~ 2.472 GHz 5G: 5.17 GHz ~ 5.25 GHz
- Channel Bandwidth: Support 20 MHz
- Security: WPA / WPA2, WPA-PSK / WPA2-PSK
- Transmission Rate: 11b 11 Mbps, 11g 54 Mbps, 11nHT20 MCS7,
- Transmission Rate: 11a 54 Mbps, 11nHT20 MCS7, 11ac MSC7
- Output Power (EIRP): 19 dBm
- Antenna Gain: 2.4G: 1.79 dBi & 5G: 3.61dBi
- General
- Operating Conditions: -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
- Power Supply: DC 5 V / 2 A
- Power Consumption: Max. 8 W
- IR Range: Max. 10 meters (32.81 ft)

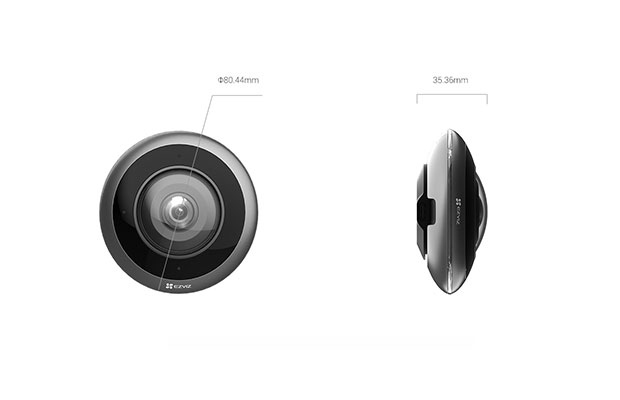

- Product Dimensions: φ80 × 35 mm (φ3.15 × 1.38 inch)
- Packaging Dimensions: 114 × 114 × 120 mm (4.49 × 4.49 × 4.72 inch)
- Bare Weight: 122 g (4.3 oz)
- Weight 610 g (21.52 oz)
- In the box
- - E4p Camera

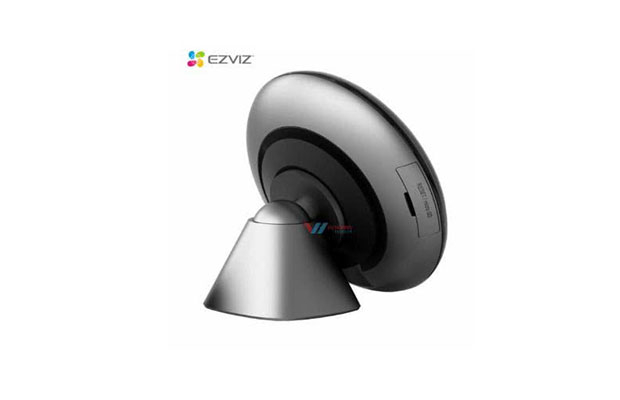

- - Mounting Base
- - Drill Template
- - Power Adapter
- - Type-C Cable
- - Screw Kit
- - Pin Key
- - Regulatory Information × 2
- - Quick Start Guide
- Warranty: 1-years on part.
