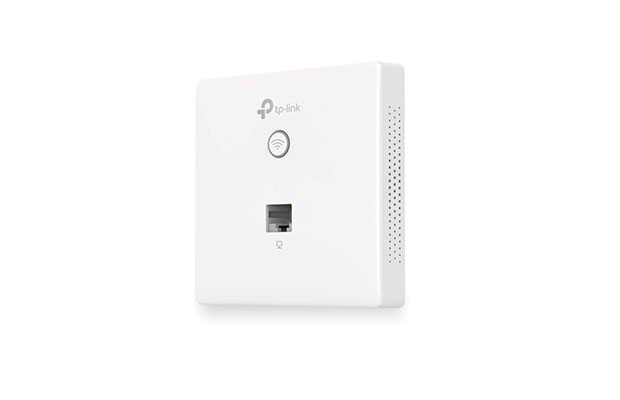

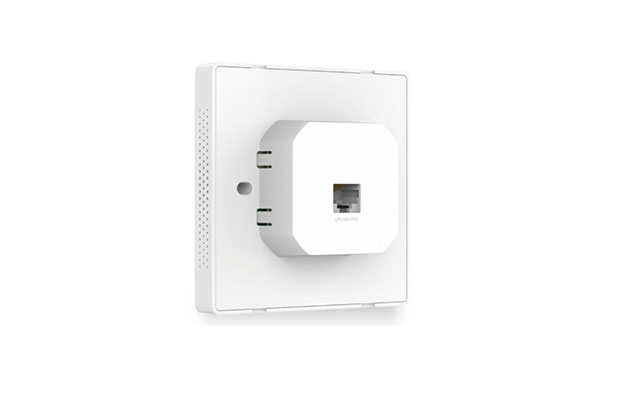

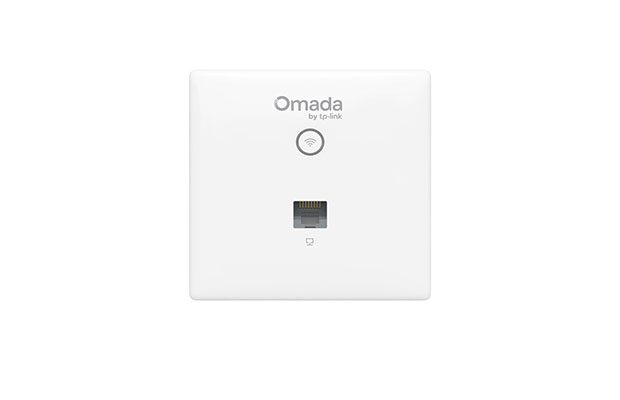

TP-Link EAP230-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
$45.00
- Part Number: EAP230-Wall
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.†
- Gigabit Ports: 2 Gigabit Ethernet ports (1× uplink + 1× downlink).
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Private Connection for Every Room: Designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories.
- Elegant Appearance: Unprecedented thin design with just 11 mm, the same size and shape as a light switch or power outlet faceplate to fit perfectly in any room.
- Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
- Warranty 3Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: EAP230-Wall
- HARDWARE FEATURES
- Interface
- - Uplink: 1× 10/100/1000 Mbps Ethernet Port
- - Downlink: 1× 10/100/1000 Mbps Ethernet Port
- Physical Security Lock: No
- Button: LED/Wi-Fi Button, RESET
- Power Supply: 802.3af/802.3at PoE
- Max. Power Consumption: 7 W
- Dimensions ( W x D x H ): 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)
- Antenna 2 Dual-Band Antennas
- - 2.4 GHz: 2× 4 dBi
- - 5 GHz: 2× 3.6 dBi
- Mounting: Wall Plate Mounting
- Hardware Watch Dog: Yes
- WIRELESS FEATURES
- Coverage: 25㎡(300 ft²)**
- Concurrent Clients: 200+*
- Wireless Standards: IEEE 802.11n/g/b/ac
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate:
- - 5 GHz: Up to 867 Mbps
- - 2.4 GHz: Up to 300 Mbps
- Wireless Functions:
- - 16 SSIDs (Up to 8 SSIDs on each band)
- - Enable/Disable Wireless Radio
- - Automatic Channel Assignment
- - Transmit Power Control (Adjust Transmit Power on dBm)
- - QoS(WMM)
- - Load Balance
- - Rate Limit
- - Reboot Schedule
- - Wireless Schedule
- - Wireless Statistics based on SSID/AP/Client
- - MU-MIMO
- - Band Steering
- - Beamforming
- Wireless Security:
- - Captive Portal Authentication
- - Access Control
- - Wireless Mac Address Filtering
- - Wireless Isolation Between Clients
- - SSID to VLAN Mapping
- - Local LAN port based VLAN
- - Rogue AP Detection
- - 802.1X Support
- - 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
- Transmission Power CE:
- - ≤20 dBm (2.4 GHz, EIRP)
- - ≤23 dBm (5 GHz, EIRP)
- Management Features
- Omada App: Yes
- Centralized Management
- - Omada Cloud-Based Controller
- - Omada Hardware Controller (OC300)
- - Omada Hardware Controller (OC200)
- - Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1,v2c
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
- Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
- OTHERS
- Certification: CE, RoHS
- Package Content
- - Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point EAP230-Wall
- - Installation Guide
- - Mounting Screw
- System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
- Environment
- - Operating Temperature: 0–40 ℃ (32–104 ℉)
- - Storage Temperature: -40–70 ℃ (-40–158 ℉)
- - Operating Humidity: 10–90% RH non-condensing
- - Storage Humidity: 5–90% RH non-condensing
- Warranty 3Years on part.
