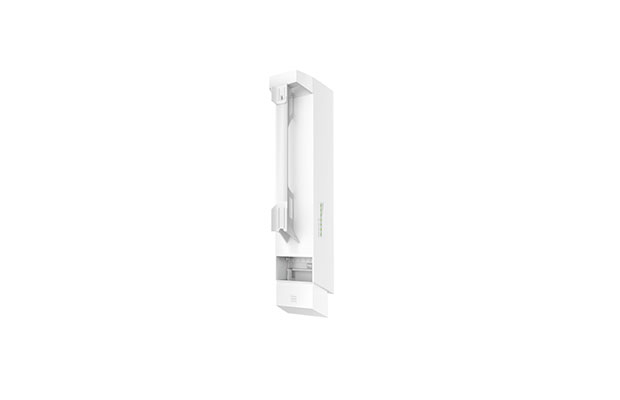

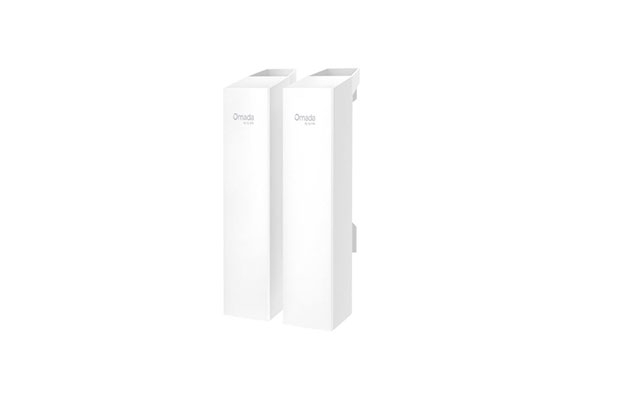

TP-Link EAP215-Bridge KIT Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
$111.00
- Part Number: EAP215-Bridge KIT
- Up to 3.1 mi (5 km) Transmission Distance
- Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
- Plug-and-Play with Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box.
- Unique Design for Instant Multi-Bridge Auto-Pairing: Effortlessly connect multiple bridges with PtMP Auto-Pairing.
- App-Guided Alignment: Visualized App-Guided Alignment for Long-Distance Setups and Instant Speed Testing for Installation Verification.
- Flexible Power Supply: 802.3af PoE (1,2pins; 3,6pins), 24V Passive PoE (+4,5pins; -7,8pins), and 12V DC (compatible with TP-Link solar power supply system)
- 3× Gigabit Ethernet Ports: Connects more cameras and devices without an extra switch△
- Built for Tough Outdoor Conditions: IP65 weatherproof enclosure and operating range of -40 °C to +70 °C.
- Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App
- Warraty: 3-years on port.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: EAP215-Bridge KIT
- HARDWARE FEATURES

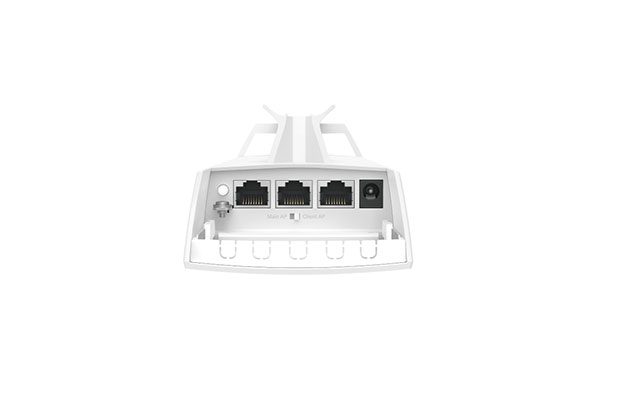

- Interface: 3x Gigabit Ethernet Ports
- Button: Reset
- DIP Switch: Role Switch
- Power Supply: 12V DC
- - 802.3af PoE (1,2pins; 3,6pins)
- - 24V Passive PoE (+4,5pins; -7,8pins)
- Max. Power Consumption: 11.5W
- Dimensions ( W x D x H ): 3.1 × 2.4 × 10.9 in (79 × 60 × 276 mm)
- Antenna: Internal 2×2 Dual-polarized directional MIMO antennas, 5 GHz: 14.0 dBi
- Horizontal: 43°, Vertical: 18°
- Weatherproof Enclosure: IP65
- Mounting: Pole and wall mounting ( Pole accessories included)
- WIRELESS FEATURES
- PtP: Yes
- PtMP: Supports up to 1:4 multi-bridge connections.
- Transmission Distance: 5,000 m (3.1 mi)
- Wireless Standards: IEEE 802.11 a/n/ac
- Frequency: 5 GHz
- Signal Rate: 5 GHz: Up to 867 Mbps
- Wireless Functions:
- - MU-MIMO: 5G 2x2 MU-MIMO DL
- - Multiple SSIDs:8
- - Wireless Statistics
- - Wireless Schedule
- - Reboot Schedule
- - RADIUS Accounting
- - Static IP/Dynamic IP
- - Rate Limit
- - Guest Network
- - Enable/Disable Wireless Radio
- - Enable/Disable SSID Broadcast
- Wireless Security:
- - VLAN
- - Rogue AP Detection
- - Maximum number of MAC Filter: 4,000
- - Wireless Encryption
- Transmission Power:
- • CE: <23dBm (5 GHz, band 1/2, EIRP), <30dBm (5 GHz band3, EIRP)
- • FCC: <23.5dBm (5 GHz band1), <25dBm (5 GHz band4)
- Management Features
- Omada App: Yes
- Restore & Backup: Yes
- Firmware update via Web: Yes
- NTP: Yes
- Centralized Management:
- - Omada Central (Cloud-Based)
- - Omada Hardware Controller
- - Omada Software Controller
- Cloud Access: Yes. Require the use of an Omada Controller.
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- SNMP: Yes
- SSH: Yes
- Web-based Management: Yes
- Zero-Touch Provisioning: Yes
- OTHERS
- Certification: CE, FCC, RoHS
- Package Content
- - EAP215-Bridge KIT
- - Installation Guide
- - Mounting Kit
- Lightning Protection:
- - Air discharge: ±8kV
- - Contact discharge: ±4kV
- - Common mode 10/700: ±6kV
- Environment:
- - Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
- - Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
- - Operating Humidity: 10%–90% non-condensing;
- - Storage Humidity: 5%–90% non-condensing
