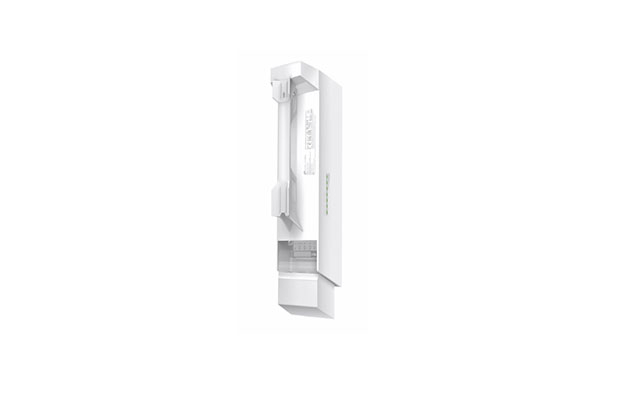

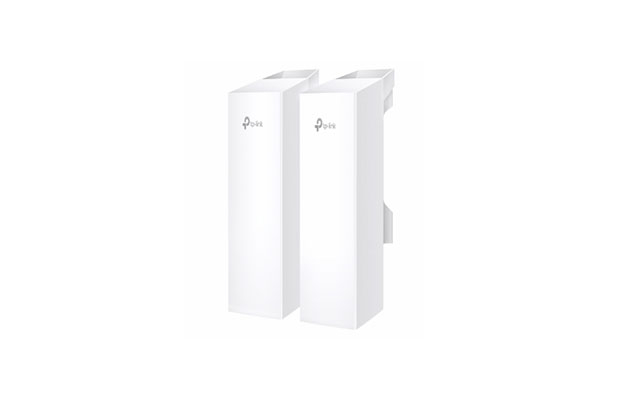

TP-Link EAP211-Bridge KIT Omada 5GHz 867Mbps Indoor/Outdoor Wireless Bridge
$109.00
- Part Number: EAP211-Bridge KIT
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
- Ideal for long-range wireless transmission up to 1 km.
- Auto-pairing and agile LEDs for efficient deployment.
- 3× Gigabit Ethernet ports for more high-speed IP camera connections.
- Supports Omada SDN for remote and centralized management.
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
- Supports Passive PoE for flexible deployment (adapter included).
- Warranty 3Years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: EAP211-Bridge KIT
- HARDWARE FEATURES

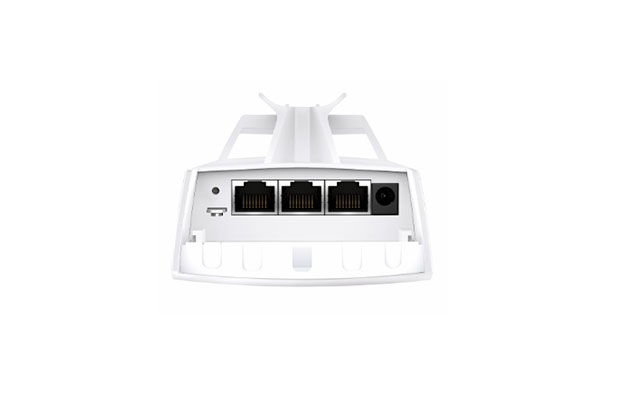

- Interface: 3x Gigabit Ethernet Ports*6
- Button: Reset
- Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)
- Max. Power Consumption: 11.5W
- Dimensions ( W x D x H ): 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
- Antenna:
- - Internal 2×2 Dual-polarized directional MIMO antennas
- - 5 GHz: 7.0 dBi
- - Horizontal:70°, Vertical: 70°
- Weatherproof Enclosure: IP65
- Mounting: Pole Mounting (Accessories included)
- WIRELESS FEATURES
- Coverage: 1000m(3280ft)5
- Wireless Standards: IEEE 802.11 a/b/g/n/ac
- Frequency: 5 GHz
- Signal Rate: 5 GHz: Up to 867 Mbps
- Wireless Functions:
- - Mesh*
- - MU-MIMO: 5G 2x2 MU-MIMO DL
- - Load Balance
- - Seamless Roaming(802.11r)
- - Beamforming
- - Airtime Fairness
- - Multiple SSIDs:8
- - Wireless Statistics
- - Wireless Schedule
- - Reboot Schedule
- - RADIUS Accounting
- - MAC Authentication
- - Static IP/Dynamic IP
- Wireless Security:
- - VLAN
- - Access Control
- - Rogue AP Detection
- - Captive Portal Authentication*
- - Maximum number of MAC Filter: 4,000
- - WPA-Personal/Enterprise, WPA2-Personal/Enterprise
- Transmission Power CE:
- <23dBm (5 GHz, band 1/2, EIRP);
- <28.5dBm (5 GHz, band3, EIRP)
- FCC: <22dBm (5 GHz, band1/4)
- Management Features
- Omada App: Yes
- Restore & Backup: Yes
- Firmware update via Web: Yes
- NTP: Yes
- Centralized Management:
- - Omada Hardware Controller (OC300)
- - Omada Hardware Controller (OC200)
- - Omada Software Controller
- - Omada Cloud-Based Controller
- Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- SSH: Yes
- Web-based Management: Yes
- OTHERS
- Certification: CE, FCC, RoHS
- Package Content
- - EAP211-Bridge KIT
- - Passive PoE Adapter
- - Power Cord
- - Installation Guide
- - Mounting Kit
- Environment
- - Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
- - Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
- - Operating Humidity: 10%–90% non-condensing;
- - Storage Humidity: 5%–90% non-condensing
- Warranty 3Years on part.
