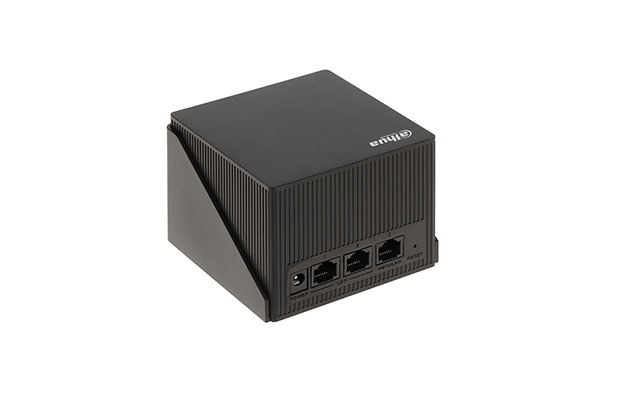

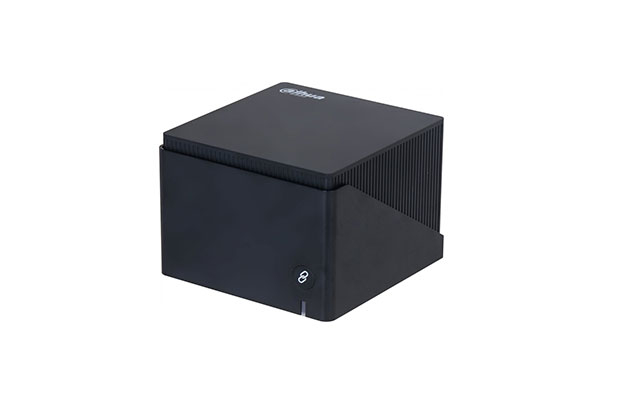

Dahua MAX18 Mesh Wireless Router (2.4GHz Wi-Fi: 574Mbps)
$69.00
- Part Number: MAX18
- Mesh Wireless Router
- Offers wireless access and high bandwidth.
- 1x Gigabit WAN port and 2x gigabit LAN ports.
- Easily switches between LAN and WAN.
- Supports accessing 1000 Mbps optical fiber broadband.
- Supports being managed through the WiLynk app.
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: MAX18
- Hardware
- Ethernet Ports: 1×10/100/1000 Mbps WAN port
- Ethernet Ports: 2×10/100/1000 Mbps LAN port
- Wireless Standard: IEEE 802.11b/g/a/n/ac/ax
- Power Supply: 12 VDC
- Included Power Adapter: Yes
- Reset Button: 1
- Power Consumption: ≤12 W
- Indicator Light: 1 × status indicator
- Performance
- Terminal Communication Protocol: IEEE 802.3/802.3u/802.3ab@LAN; IEEE 802.11b/g/a/n/ac/ax @WLAN
- Operating Frequency: 5.15–5.25 GHz; 5.725 GHz–5.850 GHz; 2.400 GHz–2.483 GHz
- Wireless Speed: 2.4 GHz Wi-Fi: 574 Mbps; 5 GHz Wi-Fi: 1,201Mbps
- Antenna: 2×Built-in 2.4 GHz Wi-Fi omnidirectional antenna;
- Antenna: 2×Built-in 5 GHz Wi-Fi omnidirectional antenna
- Polarization: Horizontal
- Cross-polarization Isolation: 2.4 GHz: ≤3.5 dBi; 5.8 GHz: ≤4.5 dBi
- Antenna Gain:
- -2.4 GHz–1: 2.9 dBm;
- -2.4 GHz–2: 3.52 dBm;
- -5.8 GHz–1: 3.65 dBm;
- -5.8 GHz–2: 4.45 dBm
- Connected Wireless Terminals: 2.4 GHz Wi-Fi: 32; 5 GHz Wi-Fi: 64
- WAN Port Connection Mode: Static IP address; DHCP; PPPoE
- Channel Width: 20 MHz, 40 MHz, 80 MHz
- General
- Management and Log: Syslog;SSH;NTP
- Firmware Update: Web/WiLynk App update
- Wireless Certification: CE RED
- Security Mechanism: IP/MAC filtering; WAP/WPA2-PSK/WPA3-PSK
- Network Protocol: UDP; HTTPS; IPv6; IPv4; TCP/IP; HTTP; NTP; SSL; DHCP
- Routing: Static routing
- DHCP Server:
- -Enable and disable DHCP Server;
- -Configure address pool of DHCP Server;
- -Configure the lease period;
- -Assign fixed IP addresses to clients
- NAT: Port-based NAT configuration
- VPN: L2TP; L2TP/IPsec VPN
- APN: APN configuration
- General
- Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
- Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)
- Operating Humidity: 5%–95% (RH), non-condensing
- Main Body Dimensions: 94 mm × 94 mm × 72 mm (3.70" × 3.70" × 2.83")
- Gross Weight: 1-pack: 0.48 kg (1.06 lb)
- Net Weight: 1-pack: 0.23 kg (0.51 lb)
- Product Dimensions: 1-pack: 126.5 mm × 121.5 mm × 155.5 mm (4.98" × 4.78" × 6.10")
- Memory: 256 MB
- Statics Protection: Air discharge: 8 kV; Contact discharge: 6 kV
- Lighting Protection: Common mode: 2 kV; Differential mode: 1 kV
- Installation: Desktop mount
- Packing List:
- MAX18 (1-pack)
- 1×Device
- 1×Power adapter
- 1×Twisted pair cable
- 1×User manual
- 1×Laws and regulations manual
- Warranty: 1 Year on part.
