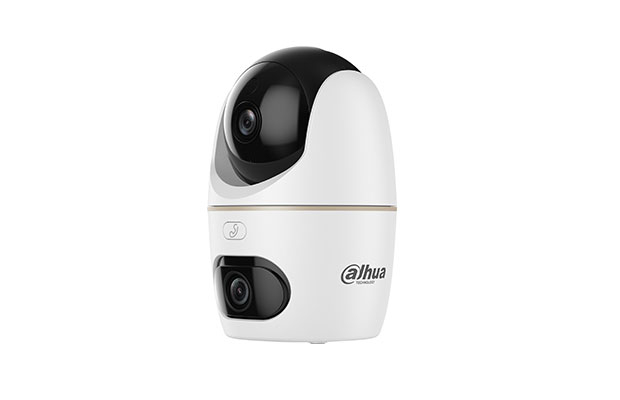

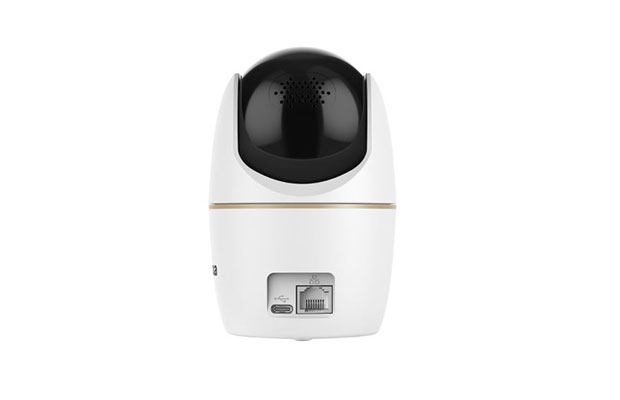

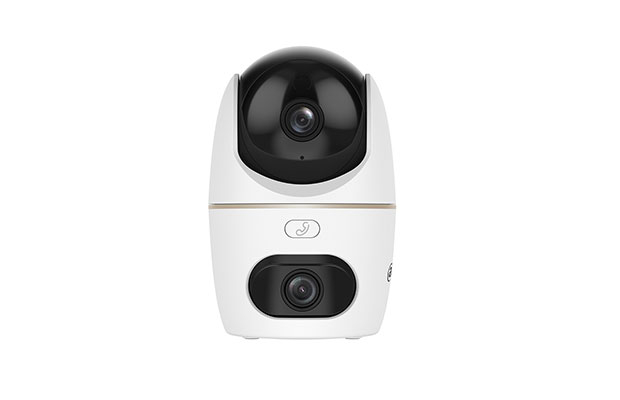

Dahua DH-H5D-5F 5+5MP Indoor Wi-Fi Dual Lens Pan & Tilt Camera
$58.00
- Part Number: DH-H5D-5F
- Dual 3K (5MP+5MP)
- Dual-lens, Double Vision
- 2880 (H) × 1620 (V) Resolution
- Sound and Light Alarm
- Adjustable Dual-lens Angles
- one-click Proactive call
- Dual Channel Smart Detection Preset Patrol
- Micro SD card (support max. 256 GB)
- Warranty: 1-year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DH-H5D-5F
- Camera
- Fixed Lens
- Image Sensor: 1/3" CMOS
- Max. Resolution: 2880 (H) × 1620 (V)
- Illumination Distance: Up to 30 m (98.43 ft) (IR)
- Illuminator Number: 2 (IR LED)
- Angle Adjustment: 0° to 15°
- Lens Type: Fixed-focal
- Focal Length: 3.6 mm
- Max. Aperture: F2.0
- Field of View: H: 86°; V: 46°; D: 104°
- PT Lens
- Image Sensor: 1/3" CMOS
- Max. Resolution: 2880 (H) × 1620 (V)
- Illumination Distance: Up to 30 m (98.43 ft) (IR) & Up to 30 m (98.43 ft) (Warm light)
- Illuminator Number: 2 (IR LED); 1 (Warm light)
- Angle Adjustment: Pan: 0° to 349° & Tilt: –5° to 90°
- Lens Type: Fixed-focal
- Focal Length: 3.6 mm
- Max. Aperture: F2.0
- Field of View: H: 86°; V: 46°; D: 104°
- Intelligence
- Human Detection: Yes
- Pet Detection: Yes
- Audio and Video
- Video Compression: H.265
- Video Frame Rate
- Main stream: 2880 × 1620@15 fps
- sub stream: 640 × 360@15 fps
- *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
- Video Bit Rate: H.265: 768 kbps–4096 kbps
- Day/Night: Auto(ICR)/Color/B/W
- WDR: DWDR
- Motion Detection: Yes
- Image Rotation: 0°/180°
- Built-in MIC: Yes, built-in Mic
- Built-in Speaker: Yes, built-in speaker
- Audio Compression: G.711a
- Network
- Network Port: RJ-45 (10/100 Base-T)
- Wi-Fi: IEEE 802.11a/b/g/n/ac/ax 2.4–2.4835 GHz, 2.4 G, EIRP≤20 dBm & 5.15–5.25 GHz, 5 G, EIRP≤23 dBm@5150–5250 MHz
- Wi-Fi Pairing: Bluetooth pairing
- Storage: Micro SD card (support max. 256 GB)
- Management Software: DMSS
- Mobile Client: iOS;Android
- Function
- Abnormal Sound Alarm: Yes
- Privacy Mode: Yes
- General
- Certifications: CE
- Power Supply: 5 VDC
- Power Consumption: Basic: 2.5 W; Max.: 5.4 W (pulling stream+ IR + PT rotation)
- Operating Temperature: –10 °C to +45 °C (–4 °F to +113 °F)
- Operating Humidity: ≤95% (RH), non-condensing
- Casing Material: Plastic
- Product Dimensions: Φ80.9 mm × 125.7mm (3.19" × Φ4.95")
- Net Weight: 233 g (0.51 lb).
