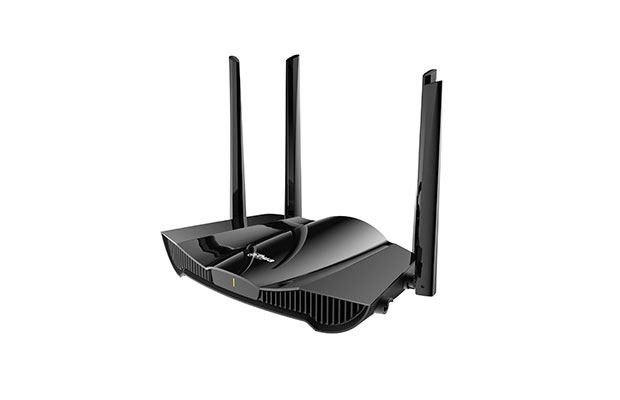

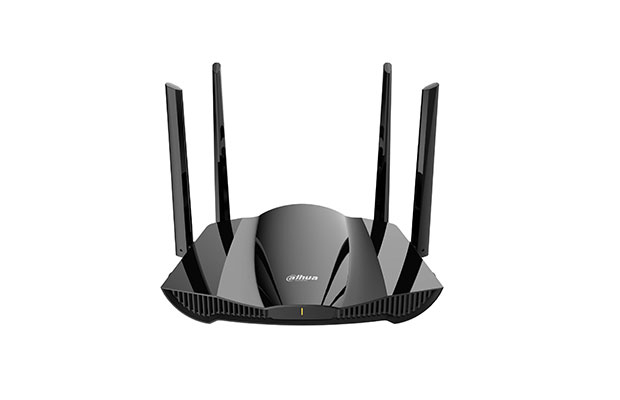

Dahua AX30 AX3000 Wireless Router ([email protected] GHz, 2402Mbps@5 GHz)
$59.00
- Part Number: DH-AX30
- 6th Gen Wireless Technology.
- 3Gbps Wireless speed (574 [email protected] GHz, 2402 Mbps@5 GHz).
- Backward compatible (IEEE 802.11 b/g/n/ac/ax standard).
- 160 MHz channel width.
- Beamforming for better Coverage.
- OFDMA and 1024-QAM.
- Bi-directional MU-MIMO.
- WiFi protected Access(WPA/WPA2/WPA3).
- Guest Wi-Fi.
- Parental Control.
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DH-AX30
- Hardware

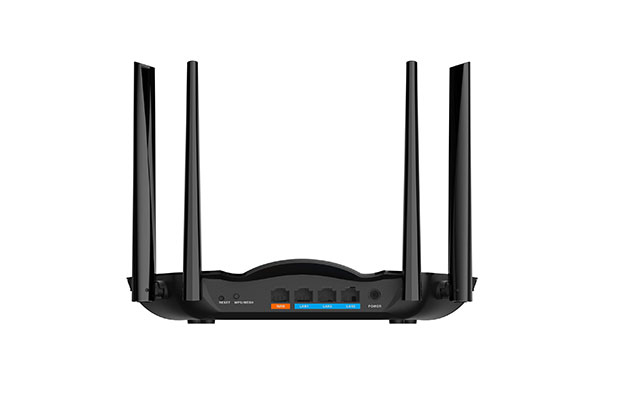

- External Port: 1×10/100/1000 Mbps(WAN)
- External Port: 3×10/100/1000 Mbps(LAN)
- Reset Button: 1
- WPS Button: 1
- Power Consumption: <18W
- Memory: 256 MB
- Indicator Light: PWR
- Wireless Standard: 2.4 GHz: 802.11 b/g/n/ax
- Wireless Standard: 5 GHz: 802.11 a/b/g/n/ac/ax
- Performance
- Operating Frequency:
- - 2.412GHz – 2.472 GHz
- - 5.170GHz – 5.330 GHz
- - 5.735GHz – 5.835 GHz
- Wireless Transmission Rate: 2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps
- Channel Width: 20/40/80/160 MHz
- Max. Output Power: CE EIRP:
- - ≤20 [email protected] MHz
- - ≤23 dBm@5150-5250 MHz
- - ≤23 dBm@5250-5350 MHz
- - ≤27 dBm@5470-5725 MHz
- - ≤14 dBm@5725-5850 MHz
- FCC output power:
- - ≤27 [email protected] MHz
- - ≤24 dBm@5150-5250 MHz
- - ≤24 dBm@5250-5350 MHz
- - ≤24 dBm@5470-5725 MHz
- - ≤30 dBm@5725-5850 MHz
- Antenna Gain: 2.4 GHz: 5 dBi (±0.5); 5 GHz: 5 dBi (±0.5)
- Receiver Sensitivity:
- 5 GHz
- 11ac VHT80_MCS0: -89 dbm
- 11ac VHT80_MCS9: -62 dbm
- 11ax VHT160_MCS0: -88 dbm
- 11ax VHT160_MCS11: -55 dbm
- 11ax HE80_MCS0: -89 dbm
- 11ax HE80_MCS11: -59 dbm
- 11ax HE160_MCS0: -85 dbm
- 11ax HE160_MCS11: -55 dbm
- 2.4 GHz
- 11n HT20_MCS0: -95 dbm
- 11n HT20_MCS7: -75 dbm
- 11n HT40_MCS0: -92 dbm
- 11n HT40_MCS7: -72 dbm
- 11ax HE20_MCS0: -95 dbm
- 11ax HE20_MCS11: -65 dbm
- 11ax HE40_MCS0: -92 dbm
- 11ax HE40_MCS11: -62 dbm
- Channel: 2.4 GHz; 1-13
- Channel: 5 GHz: 36/40/44/48/149/151/153/157/161/165
- Connected Wireless Terminals: Up to 128
- Feature
- Operating Mode: Router; repeater
- Encryption Mode: WPA-PSK; WPA2-PSK; WPA-PSK/WPA2-PSK; WPA3-PSK; WPA2-PSK/WPA3-PSK
- Firmware Update: Web update & WiLynk App update
- OFDMA: Yes
- MU-MIMO: 2x2
- DHCP: Yes
- NAT: Mapping based on port
- QoS: Yes
- DDNS: Yes
- Parental Controls: Yes
- Equipment Management: Web/WiLynk App
- Software
- Firewall; end device management
- General
- Power Supply: 12 VDC,1.5 A
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: –40 °C to +70 °C (–40 °F to 158 °F)
- Operating Humidity: 10%–95% (RH), non-condensing
- Gross Weight: 0.86 kg (1.90 lb)
- Net Weight: 0.36 kg (0.79 lb)
- Packaging Dimensions: 470 mm × 295 mm × 60 mm (18.50" × 11.61" × 2.36")(L × W × H)
- Product Dimensions: 262.2 mm × 150.1 mm × 184.5 mm (10.32" × 5.91" × 7.26")(L × W × H)
- Statics Protection: Air discharge: 8 kV; Contact discharge: 6 kV
- Lighting Protection: Common mode: 2 kV; Differential mode: 0.5 kV
- Installation: Desktop mount; wall mount
- Packing List:
- 1 × Device
- 1 × Power adapter
- 1 × Ethernet cable
- 1 × Quick Start Guide
- 1 × Legal and Regulatory Information
- Warranty: 1 Year on part.
