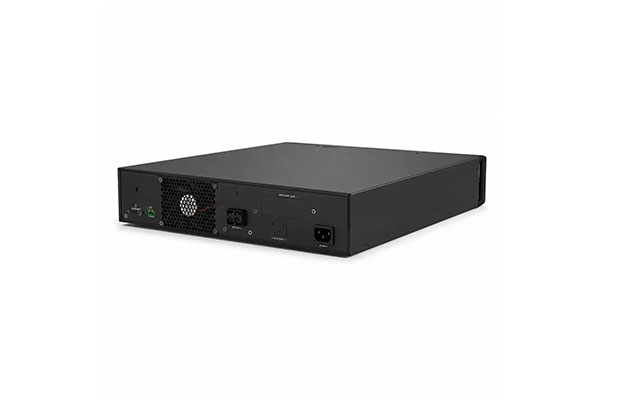

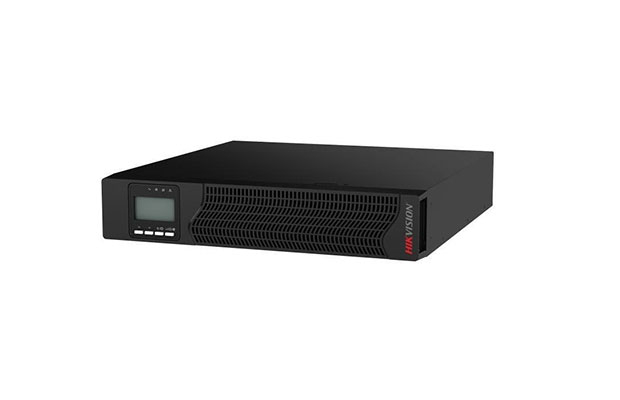

Hikvision DS-UPS03K72-R/TJS 3000VA/2700W Rack-Mount Single-Phase UPS
$560.00
- Part Number: DS-UPS03K72-R/TJS
- 3000VA/2700W Uninterruptible Power Supply (With built-in battery)
- Double conversion on-line design with input power factor correction (PFC) technology, achieving an input power factor of up to 0.99.
- Digital control system for enhanced stability and reliability.
- ECO operation mode for improved energy efficiency and reduced user costs.
- Three-stage charging: constant current charging, constant voltage charging, and floating charging stages are intelligently managed.
- Wide voltage input and frequency range for stable operation with different electrical scenario, and suit with various fuel generators.
- Comprehensive protections including output overload, output short-circuit, over-temperature, battery under-voltage warning, battery over-charging protection, and power-on self-diagnostic function;
- Warranty: 1years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-UPS03K72-R/TJS
- Power
- UPS Capacity: 3000 VA / 2700 W
- Input
- Nominal Voltage: 208/220/230/240Vac
- Input Voltage Range: 110~300Vac (176~264Vac @ 100% load)
- Input Frequency: 40~70Hz (50/60Hz Auto-Sensing)
- Phase: Single Phase
- Power factor: ≥0.99
- Output
- Output Voltage: 208/220/230/240Vac
- Output Waveform: Pure Sinewave
- Power factor: 0.9
- Output Sockets: Optional: IEC panel/EU panel/UK panel/US panel
- Output Frequency: Online mode: 46~54Hz or 56~64Hz, Bat. Mode: (50/60±0.1%)Hz
- Crest factor: 3:1
- Harmonic distortion (THDv): ≤3% Linear load, ≤5% Non linear load
- Transfer Time: AC mode to Bat.mode: 0ms
- Inverter to Bypass: 4ms (Typical)
- Battery
- Battery Type: Valve Regulated Lead Acid (VRLA)
- Typical Recharging Time: 4 hours (To 90% of full capacity)
- Capacity (Standard Unit): 12V/9Ah
- Battery Number: 6pcs
- DC System Voltage (VDC): 72V
- Charging Current (Max.): 1A
- Expandable Runtime: Yes, External battery pack: DS-UPSB0972B-R/TJC
- Typical Backup Time: View Runtime Graph
- Indicator
- LCD display: Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature & Remaining battery backup time
- Alarm: Battery mode/Battery low voltage /Overload/Fault
- Efficiency
- AC Mode: 92%
- Battery Mode: 88%
- Environment
- Operating Temperature: 0℃~40℃
- Storage Temperature: -25℃~55℃
- Humidity Range: 20~95%RH @ 0~40℃ (Non condensing)
- Altitude: <1500m, derating required when>1500m
- Noise Level: <55dB at 1 Meter
- Physical
- Dimension W x D x H (mm): 440 x 600 x 86.5
- Net weight (kg): 26 kg
- Standards
- Safety: IEC/EN 62040-1, IEC/EN 62477-1
- EMC: IEC/EN 62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
- Warranty: 1years on part.
