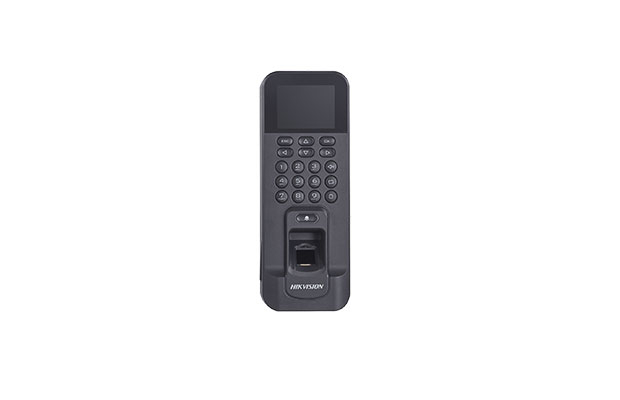

Hikvision DS-K1T804BMF Fingerprint Terminal & Access Control
$75.00
- Part Number: DS-K1T804BMF
- Size: 2.4-inch
- Card capacity: 3000
- Fingerprint capacity: 3000
- Event capacity: 100,000
- Card reader for Mifare1 card
- Communication via TCP/TP and Wi-Fi
- Access control and the time attendance function
- Warranty: 1-year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-K1T804BMF
- System
- Operation system: Linux
- Display
- Size: 2.4-inch
- Resolution: 320 × 240
- Type: LCD-TFT display screen
- Audio
- Audio output: 1 loudspeaker, 1 buzzer
- Network
- Wired network: TCP/IP, 10/100Mbps, self-adaptive
- Wi-Fi: Support
- Interface
- Network interface: 1
- Wiegand: 1
- Lock output: 1
- Exit button: 1
- Door contact input: 1
- IO input: 1
- IO output: 1
- TAMPER: 1
- USB: 1
- Capacity
- Card capacity: 3000
- Fingerprint capacity: 3000
- Event capacity: 100,000
- Authentication
- Card type: M1 card
- Card reading distance: 0 to 4.5 cm
- Card reading duration: ＜ 1 s
- Fingerprint module: Optical fingerprint module
- Fingerprint comparing mode: 1:1 and 1:N
- Fingerprint recognition duration: ＜ 1 s
- Fingerprint False Acceptance Rate (FAR): ≤ 0.001 %
- Fingerprint False Rejection Rate (FRR): ≤ 0.01 %
- General
- Indicator: Power/status (red/green)
- Power supply: 12 VDC/1 A
- Working temperature: -10 °C to +55 °C (14 °F to +131 °F)
- Working humidity: 10% to 90% (no condensing)
- Dimensions: 205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")
- Installation: Surface mounting
- Language: English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
