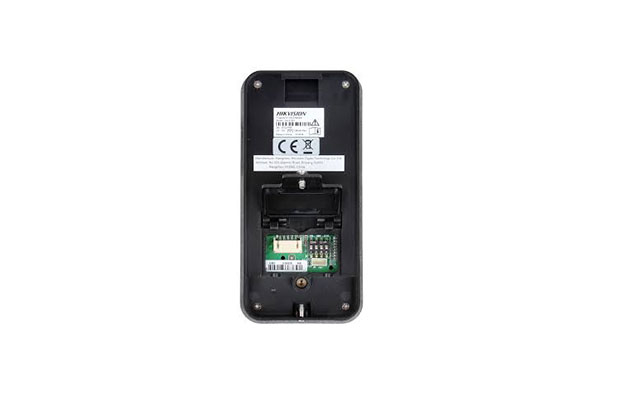

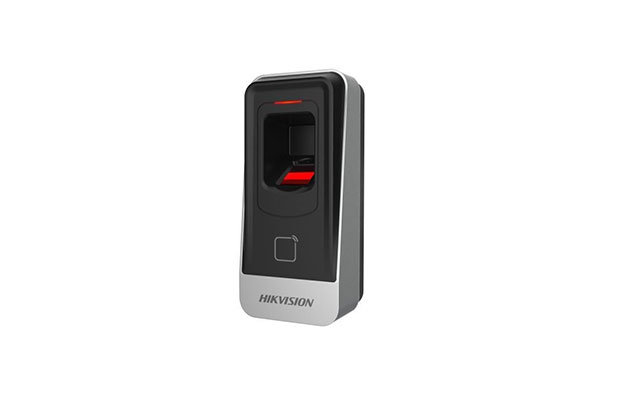

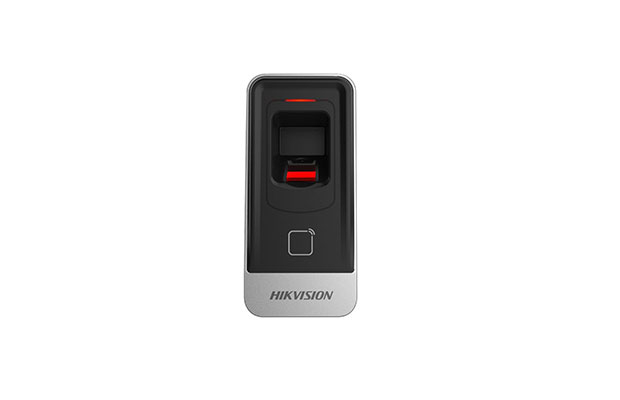

Hikvision DS-K1201AEF Fingerprint & Card Reader (EM Card Reading)
$59.00
- Part Number: DS-K1201AEF
- Support RS-485 Communication with 19200bps-N-8-1 transmission rate. There are CRC for the protocol .
- Support EM Card reading
- Card induction distance is 30mm to 100mm
- Supports multiple authentication modes ( card , Fingerprint and card + fingerprint )
- Maz. 5000 fingerprint storage
- Built-in buzzer for status indicaton.
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-K1201AEF
- Interface
- TAMPER: 1
- Authentication
- Fingerprint module: Optical fingerprint module
- Fingerprint comparing mode: 1:1/1:N
- Card type: EM card
- General
- Power supply: 12 VDC ± 10%
- Power consumption: ≤ 1.6 W
- Working temperature: -40 °C to 70 °C (-40 °F to 158 °F)
- Working humidity: 10% to 90% (no condensing)
- Dimensions: 62 mm × 132 mm × 44 mm (2.44" × 5.20" × 1.73")
- Installation: Surface mounting
- Buzzer: Support
