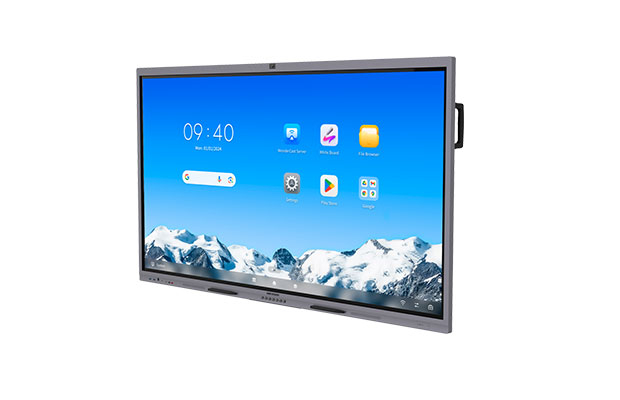

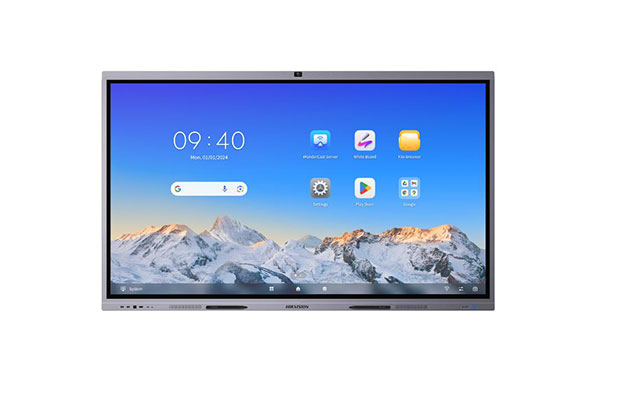

Hikvision (DS-D5C86RB/B(EDLA) 86-inch 4K Interactive Display 3840×2160,DLED (2Yr)
$3,150.00
- Part Number: DS-D5C86RB/B
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows（Optional with OPS） saving cost and easy to use, video conference software are recommonded to run under Windows system.
- Quick response, at most 50-points touch control and smooth writing experience.
- Built-in network switch chip saves a network switch.
- All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.
- EDLA Certified
- Warranty: 2-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- *Part Number: DS-D5C86RB/B
- -Screen Size: 86 inch
- -Backlight: DLED
- -Pixel Pitch: 0.1645（H）× 0.4935（V）mm
- -Resolution: 3840 × 2160 @60 Hz
- -Brightness: 400 cd/m² （Typ.）
- -Color Depth: 10 bit
- -Display Color: 1.07 G
- -Response Time: 5 ms
- -Panel Type: VA
- -Contrast Ratio: 5000:1 (Static) / 30,000:1 (Dynamic)
- -Color Gamut: 72% NTSC (CIE1931) (Typ.)
- -Refresh Rate: 60 Hz
- -Viewing Angle: 178° (H)/178° (V)
- -Type: Infrared Touch Screen
- -Touch Point: Up to 50-point multi-touch
- -Touch Response Time: ≤ 2 ms
- -Minimum Touch Object: ≥ 1.5 mm (≥ 90% touching area)
- -Touch Precision: ± 0.5 mm (≥ 90% touching area)
- -Touch Resolution: 32768 × 32768
- *Built-in System
- -Operation System: Android 14.0
- -Memory: 8 GB
- -Built-in Storage: 128 GB
- -Processor: Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
- -GPU: Mali-G610 MC4
- -HDCP Version: 2.3
- *Camera
- -Pixel: Pixel 48MP for Photos & 8 MP for Video
- -Camera Function: Support intelligent switching between Android system, OPS, and PC.
- -Field Angle: 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
- -Distortion: ≤2.5%
- -Camera Resolution Ratio: Up to 4K
- *Microphone
- -Specification: Omni-directional 8-array layout
- -Mic Function: Echo reduction and smart noise-cancellation
- -Voice Distance:12 m
- -Sampling Rate: 32 K
- -Mic Depth: 16 bit
- *Internal Function
- -Loudspeaker: Built-in 2 × 20 W+25W loudspeaker;
- -Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
- -NFC: Support screen mirroring by Android phones
- -Light Sensor: Yes
- -Image Processing Technology: Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction
- -Audio Processing Technology: Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
- *Interface"
- -Video & Audio Input: HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
- -Video & audio output: HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1
- -Control interface: TOUCH-USB 3.0 × 3, RS232 × 1
- -Network Interface: LAN (1000 Mbps) × 2
- -WIFI AP & Station, 2.4G/5G
- -WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- -Data Transmission Interface: USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
- *Power
- -Power Supply": 100 to 240 VAC, 50/60 Hz
- *General:
- -VESA: 800 mm × 600 mm （4 × M8-25 mm）
- -Product dimensions: 1960.44 mm × 1173.74 mm × 82.5 mm
- -Accessory: Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control.
- -Package Dimensions (W × H × D): 2147 mm × 1335 mm × 213 mm
- *Gross Weight: 82.6 kg
- Warranty: 2-years on part.
