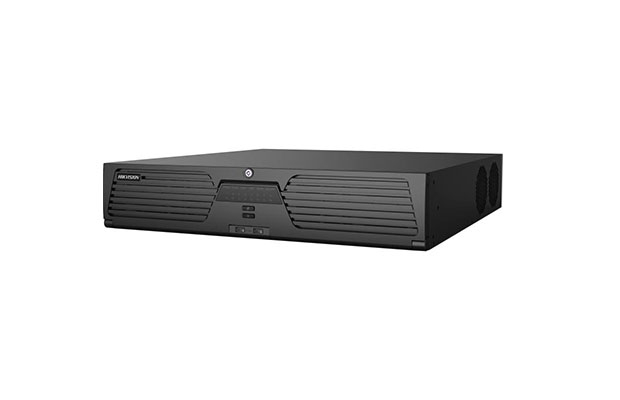

Hikvision DS-9664NXI-I8/S 64-ch 2U 4K AcuSense NVR (Support HDD 8Pcs)
$899.00
- Part Number: DS-9664NXI-I8/S
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 4-ch perimeter protection
- Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
- Up to 64-ch IP camera inputs
- Up to 16-ch 1080p decoding capability
- Up to 320 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
- Warranty: 1-year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-9664NXI-I8/S
- Intelligent Analytics
- AI by NVR: N/A
- AI by Camera: N/A
- Engine: N/A
- Facial Recognition
- Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
- Face Picture Library: Up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 15KB, total capacity ≤ 150 MB)
- Facial Detection and Analytics Performance: 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
- Face Picture Comparison: 4-ch face picture comparison alarm
- Motion Detection 2.0
- By Camera: N/A
- Human/Vehicle Analysis: 32-ch
- By NVR: N/A
- Perimeter Protection
- By Camera: N/A
- Human/Vehicle Analysis: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition;
- Up to 12 rules in total
- By NVR: N/A
- ANPR
- By Camera: N/A
- Vehicle Attributes: N/A
- Plate Attributes: N/A
- Video and Audio
- IP Video Input: 64-ch
- Up to 12 MP resolution
- *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 256 Mbps
- HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA 1 Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA 2 Output: N/A
- Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
- CVBS Output: N/A
- Audio Output: N/A
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding
- Recording Resolution: N/A
- Live View Window Division: N/A
- Aux Port Window Division: N/A
- Dual-Stream Recording: N/A
- Audio Compression: N/A
- Decoding Format: H.265+/H.265/H.264+/H.264/MPEG4
- Decoding Capability: 16-ch@1080p (30 fps)
- Synchronous Playback: 64-ch
- Stream Type: Video, Video & Audio
- Network
- API: N/A
- Compatible Browser: N/A
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection: 128
- Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Camera Access Protocol: ONVIF(Version 2.5), RTSP
- RAID
- RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10
- Auxiliary Interface
- SATA: 8 SATA interfaces
- eSATA: 1 eSATA interface
- Capacity: Up to 10 TB capacity for each disk
- Serial Interface: RS-485 (full-duplex), RS-232, Keyboard
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Alarm In/Out: 16/8
- Ctrl 12V: NA
- DC 12V: NA
- General
- GUI Language: N/A
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ≤ 30 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Chassis: 2U chassis
- Dimension (W × D × H): 442 × 459 × 92 mm (17.4"× 18" × 3.6")
- Weight: ≤ 8.7 kg (19.2 lb.)
- Certification
- FCC Part 15 Subpart B, ANSI C63.4-2014
- CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
- Obtained Certification: CE, FCC, IC
- Warranty: 1-year on part.
