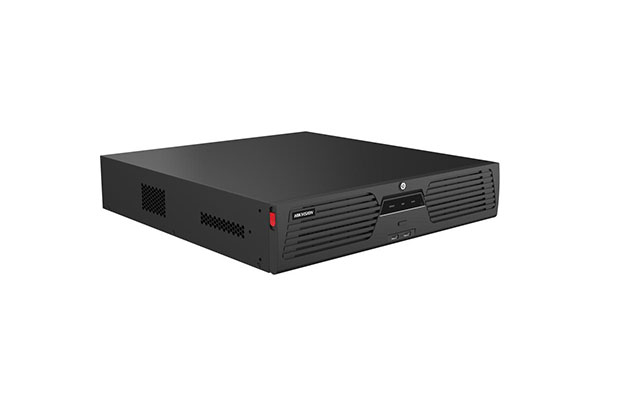

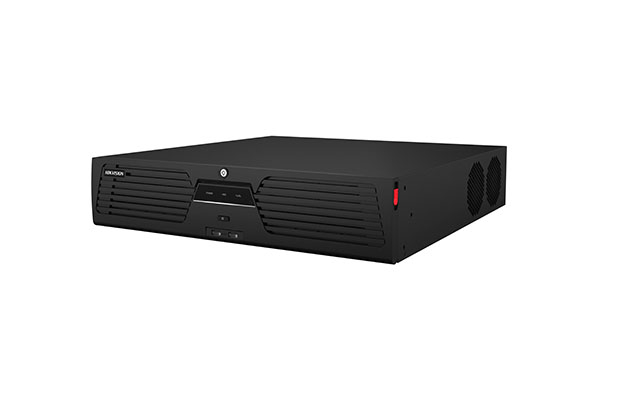

Hikvision DS-9632NXI-I8/S 32-ch 2U 4K AcuSense NVR
$835.00
- Part Number: DS-9632NXI-I8/S
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 4-ch perimeter protection
- Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
- Up to 32-ch IP camera inputs
- Up to 16-ch 1080p decoding capability
- Up to 320 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
- Warranty: 1-year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-9632NXI-I8/S
- Devices and Servers
- Heat Map Cameras: 1.heatmap data record and presentation
- Intelligent Analytics
- AI by NVR: Facial recognition, perimeter protection, motion detection 2.0
- AI by Camera: Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
- Engine: 1, engine mode is adjustable
- Perimeter Protection
- By Camera: All channels
- Human/Vehicle Analysis: N/A
- By NVR: 4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;
- Up to 12 rules in total
- Facial Recognition
- Facial Detection and Analytics: Face picture comparison, human face capture, face pictu
- Face Picture Library: Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
- Facial Detection and Analytics Performance: 4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
- Face Picture Comparison: 8-ch
- Motion Detection 2.0
- By Camera: All channels
- Human/Vehicle Analysis: N/A
- By NVR: All channels for Hikvision cameras
- ANPR
- By Camera: All channels
- Vehicle Attributes: Plate number, license plate color, license plate type
- Plate Attributes: Vehicle brand, vehicle color, vehicle type
- Video and Audio
- IP Video Input: 32-ch
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 256 Mbps
- HDMI 1 Output: 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
- HDMI 2 Output: 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
- VGA 1 Output: 1920 × 1080/60 Hz
- VGA 2 Output: 1920 × 1080/60 Hz
- Video Output Mode: HDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output,HDMI1/HDMI2 independent output
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output: 2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- *: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.
- Live View Window Division: 1/2/4/6/8/9/16/25/32/36
- Aux Port Window Division: 1/2/4/6/8/9/16/25/32/36
- Dual-Stream Recording: Support
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
- Decoding Format: H.265+/H.265/H.264+/H.264
- Decoding Capability: Enable AI by NVR: 20-ch@1080p (30 fps) Disable AI by NVR: 32-ch@1080p (30 fps)
- Synchronous Playback: 16-ch
- Stream Type: Video, Video & Audio
- Network
- API: ONVIF (profile S/G); SDK; ISAPI
- Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection: 128
- Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Camera Access Protocol: ONVIF(Version 2.5), RTSP
- RAID
- RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10 Support global hot spare
- Auxiliary Interface
- SATA: 8 SATA interfaces
- eSATA: 1 eSATA interface
- Capacity: Up to 14 TB capacity for each disk
- Serial Interface: 1 RS-485 (full-duplex), 1 RS-232
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
- Alarm In/Out: 16/9
- Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
- *: The Ctrl 12V power is controlled by alarm output 9.
- DC 12V: 12 VDC, 1 A power output
- General
- GUI Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ≤ 30 W (without HDD)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Chassis: 2U chassis
- Dimension (W × D × H): 445 × 460 × 93 mm (17.5"× 18.1" × 3.7") ≤ 8.3 kg (18.3lb.)
- Certification
- FCC: N/A
- CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
- Obtained Certification: CE, CB, REACH, WEEE, UKCA, LOA
- Warranty: 1-year on part.
