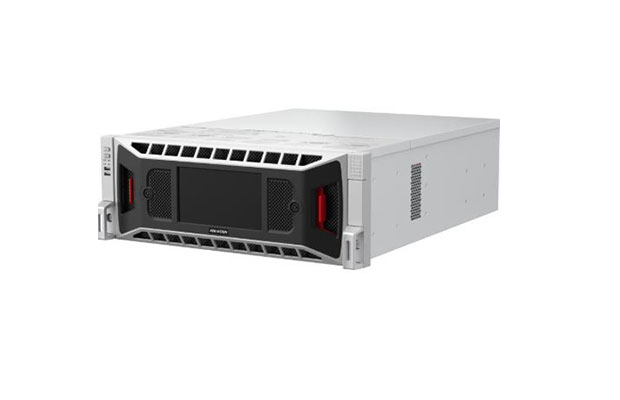

Hikvision DS-96128NXI-S24R 128-Channel 8K NVR (Support HDD 24Pcs)
$2,265.00
- Part Number: DS-96128NXI-S24R
- Up to 32×1080p decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 128-ch IP cameras can be connected
- Intelligent analytics supports facial recognition, perimeter protection, video structuralization, AcuSearch
- Up to 8-ch IP speakers can be connected
- Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks
- HDMI video output at up to 8K resolution
- Redundant power supply
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-96128NXI-S24R
- Video and Audio
- IP Video Input: 128-ch Up to 32 MP resolution
- Incoming Bandwidth: 1280Mbps
- Outgoing Bandwidth: 1024Mbps
- Incoming Bandwidth (RAID Mode): 640Mbps
- Outgoing Bandwidth (RAID mode): 512Mbps
- HDMI 1 Output: 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
- HDMI 2 Output: 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
- HDMI 3 Output: 8K (7680 × 4320)/30 Hz, 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz
- HDMI 4 Output: 1080P (1920 × 1080)/60 Hz
- VGA 1 Output: 1080P (1920 × 1080)/60 Hz
- VGA 2 Output: 1080P (1920 × 1080)/60 Hz
- HDMI Input: 1-ch
- HDMI Loopback: 1-ch (matching the HDMI input)
- Audio Output: 2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
- Decoding
- Decoding Format: H.265/H.265+/H.264/H.264+
- Decoding Capability: 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
- Synchronous Playback: 16-ch
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
- Network
- Remote Connection: 256
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF (version 2.2), OTAP
- API: ONVIF (profile S/T); SDK; ISAPI
- Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
- Network Interface: 4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface; 2, SFP 1000 Mbps Optical Port
- Camera Access Protocol: ONVIF (version 2.5), RTSP
- RAID
- RAID Type: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- Auxiliary Interface
- SATA: 24 SATA interfaces; 3.5-inch HDD
- eSATA: 1 eSATA interface
- Capacity: Up to 20 TB capacity for each HDD
- Serial Interface: 1 RS-232, 2 RS-485 (half-duplex)
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 4 × USB 3.0
- Alarm In/Out: 32/16
- General
- Power Supply: 100 to 240 VAC, 50 to 60 Hz, redundant power supply
- Consumption: ≤ 100 W (without HDD)
- Working Temperature: -10 to 55°C (14 to 131° F)
- Working Humidity: 10 to 90%
- Dimension (W × D × H): 447 mm × 572 mm × 173 mm (17.6 × 22.5 × 6.8 inch) ≤ 19 kg (without HDD, 28.7 lb.)
