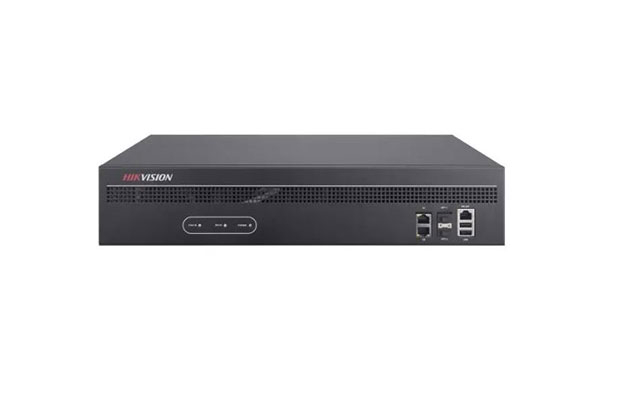

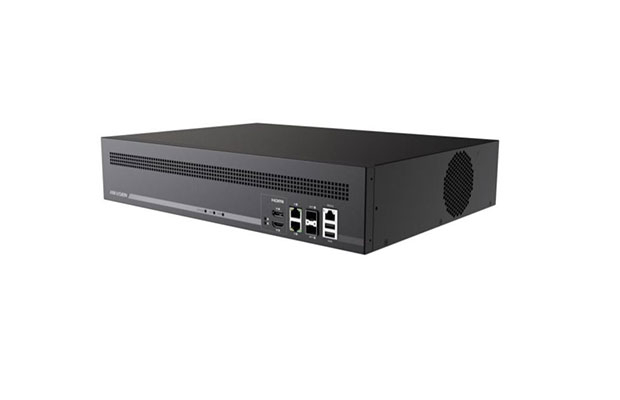

Hikvision DS-6916UDI(C) 4K Decoder and 4K HDMI signal input
$1,649.00
- Part Number: DS-6916UDI(C)
- Video Input
- Supports the video input from the computers and video conference terminals, and 4K HDMI signal input.
- Supports using network cameras, NVRs, and other devices as network signal sources.
- Supports embedded HDMI audio input. The audio input supports 16 bit, 48 KHz or 32 KHz sampling rate, dual audio channel, and stereo.
- Supports signal input via the HDMI 1.4 port, 2 channels of 1080p@50/60 Hz input, or 1 channel of 4K@30 Hz input.
- Video Output
- Supports signal output via the HDMI 1.4 port, and 4K (3840 × 2160@30 Hz) UHD video output.
- Warranty: 1 Year on part
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications

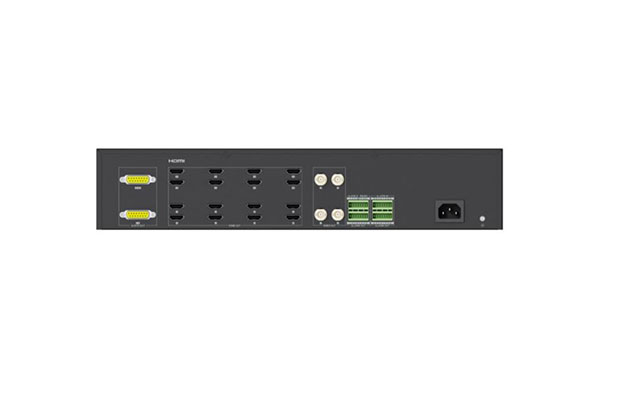

- Interface
- Network Interface: 2 × 10/100/1000 Mbps self-adaptive Ethernet interface (RJ-45)
- Network Interface: 2 × 100 BASE-FX/1000 BASE-X port
- Supports the self-adaption between the optical port and electrical port.
- Alarm In Interface No.: 8 channels of alarm input
- Alarm Out Interface No.: 8 channels of alarm output
- Serial Interface: 1 × RS-232 serial port (RJ-45) + 1 × RS-485 serial port
- USB Interface: 2 × USB 2.0 port
- Power
- Power Interface: Embedded 220 VAC
- Device Consumption: < 150 W
- Video Wall
- Video Walls: 1
- Video Wall Scale; ≤16
- Split Window: Supported
- Window Division per Output Port: 1, 2, 4, 6, 8, 9, 12, 16, 25, 36
- Input Source Copy Capability: Not supported
- Layers Per Screen: 4 × 1080p or 2 × 4K
- Layers per Device: Layers Per Screen × Output Interface(s)
- Scenes: 64
- Plans: 100 view groups on the HCP client
- General
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 0％ RH to 90％ RH
- Net Weight: ≤ 6.4 kg (14.11 lb)
- Gross Weight: ≤ 7.8 kg (17.20 lb)
- Dimensions (W × H × D): 440 mm × 88 mm × 321 mm (17.32 inch × 3.46 inch × 12.64 inch)
- Packing List: 1 × decoder, 1 × regulatory compliance and safety information manual, 1 × mounting bracket, 1 × power cord, 4 × pads, 1 × grounding cable
- Audio Input
- Audio Input Interfaces: 2
- Audio Input Interface Type: Embedded HDMI
- Video Input
- Video Input Interfaces: 2
- Video Input Interface Type: HDMI 1.4
- Max. Input Resolution: 4K (only in odd-numbered port)
- Video Input Resolution: 3840 × 2160@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1600 × 1200@60 Hz, 1280 × 960@60 Hz, 1680 × 1050@60 Hz, 1440 × 900@60 Hz, 1366 × 768@60 Hz, 1280 × 1024@60 Hz, 1024 × 768@60 Hz
- Supports custom resolution.
- For 60 Hz input, width ranges from 800 to 1920, and height ranges from 600 to 1200.
- For 30 Hz input, width ranges from 800 to 3840, and height ranges from 600 to 2160.
- Width: 4 alignment, height: 2 alignment.
- Video Encoding
- Video Encoding Format: H.264 (default), H.265
- Video Encoding Channels: 2
- Video Encoding Capability: 1 channel of 4K@30 Hz or 2 channels of 1080p@60 Hz
- Audio Encoding
- Audio Encoding Format: G722.1, G711_U, G711_A, AAC
- Video Output
- Video Output Interface Type: HDMI 1.4
- Video Output Interface(s): 16
- Max. Output Resolution: 4K
- Video Output Resolution: 3840 × 2160@30 Hz, 2560 × 1440@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1680 × 1050@60 Hz, 1600 × 1200@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1024 × 768@60 Hz
- Video Output Interface (BNC): 4 channels of CVBS output (BNC port)
- Video Output Resolution (BNC): PAL: 704 × 576@25 Hz, NTSC: 704 × 480@30 Hz
- Loading Capacity for Video Output to LED: Single port load: 2600000, Width: 144 - 4096, Height: 144 - 2160, Width must be a multiple of 2 and height must be a multiple of 2
- Video Decoding
- Video Decoding Format: H.264, H.265, SmartH.264, SmartH.265, MJPEG
- Video Decoding Resolution: Up to 32 MP
- Video Decoding Channel(s): 256
- Video Decoding Capability 1) H.264/H.265 format:
- -Support decoding 8-channel 32 MP/24 MP, 16-channel 12 MP, 32-channel 8 MP, 40-channel 6 MP, 64-channel 4 MP, 128-channel 1080p, 256-channel 720p and lower resolution in real time.
- -Every four output ports (HDMI output ports 1 to 4, 5 to 8, 9 to 12, and 13 to 16) form a group and 4 groups share the decoding capabilities. Each group supports up to 4-channel smart decoding or 4-channel encrypted stream decoding. The smart decoding allows the device to decode the smart alarm events from the network cameras.
- -2) MJPEG format: 16-channel of 1080p and lower resolution
- -3) HIK264 format: 8-channel of 720p and lower resolution
- Audio Output
- Audio Output Interface(s): 16
- Audio Output Interface Type: Embedded HDMI audio output port or independent DB15-to-BNC audio output port
- Audio Decoding
- Audio Decoding Format: G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM
