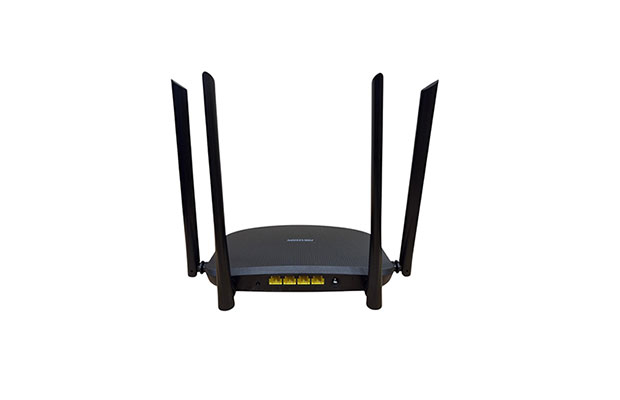

Hikvision DS-3WR12C-E AC1200M Dual-band WiFi5 Wireless Router
$28.00
- Part Number: DS-3WR12C-E
- AC1200 Wireless Router
- Four 5-dBi amplified antennas
- Beamforming optimizes signal
- Dual band – Smart signal switching
- Broadband account synchronization
- Warranty: 1 Year on Part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-3WR12C-E
- General
- Product Dimension (W × H × D): 248.40 mm × 154.80 mm × 213.34 mm (9.78"× 6.09"× 8.40")
- Package Dimension (W × H × D): 306 mm × 290 mm × 59 mm (12.05"× 11.42"× 2.32")
- Net Weight: 0.222 kg (0.489 lb)
- Packing List: Wireless Router x 1, Ethernet cable × 1, Quick installation guide × 1
- Packing Method: Single pack
- Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity: 10% to 90% RH non-condensing
- Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
- Storage Humidity: 5% to 90% RH non-condensing
- Installation Mode: Desktop installation
- Max. Power Consumption: ≤ 9 W
- Gross Weight: 0.722 kg (1.592 lb)
- Wireless Parameter
- Data Rate:
- ≤ 1167 Mbps
- 2.4 GHz: 300 Mbps
- 5 GHz: 867 Mbps
- Wireless Standard: IEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
- Working Frequency Band: 2.4 GHz，5 GHz
- Transmitting Power
- CE:
- <20 dBm(2.4G)
- <23 dBm(5G)
- Wireless Performance
- -4 × 4 MU-MIMO supported
- -Beamforming supported
- Receiving Sensitivity
- -58 ± 2 dB@AC80 -MCS9
- -84 ± 2 dB@AC80 -MCS0
- Antenna: 4 high gain antennas
- Operating Frequency:
- 2.4 GHz: US/2412-2472 MHz(CH1-CH13)
- 5 GHz: US/5180-5240 MHz(CH36-CH48)
- 5 GHz: US/5740-5805 MHz(CH149-CH161)
- EIRP Power(Max.):
- 2.4 GHz: 19.86 dBm
- 5 GHz: 22.96 dBm
- Hardware Parameter
- Network Interface: 1*10/100Mbps WAN port 3*10/100Mbps LAN ports
- LED Indicator: LED indicator
- Reset: Reset button
- Power Supply Method: 9 VDC, 1 A power adapter power supply
- Power Specifications: 9 VDC, 1 A
- Software Function
- Application function:
- Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported
- DHCP Server supported
- Guest Network Configuration supported
- Signal Adjustment supported
- WiFi Schedule supported
- Security Mode: WPA-PSK, WPA2-PSK, WPA and WPA2 supported
- Security Mechanism: Hide SSID
- Management Method: Web
- Upgrade: Web Update and Upgrade
- System Log: System log
- Warranty: 1 Year on Part.
