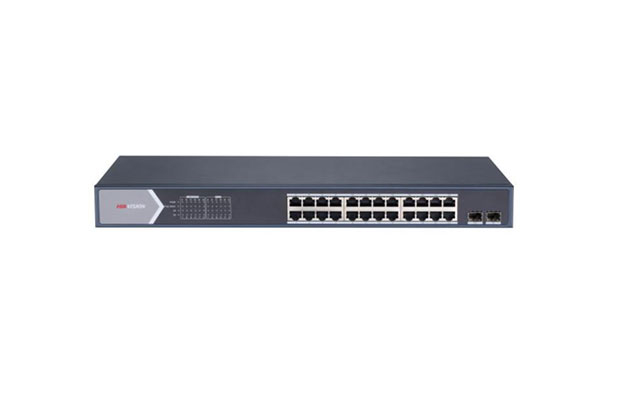

Hikvision DS-3E1526P-SI 24-Port Gigabit Smart POE Switch
$279.00
- Part Number: DS-3E1526P-SI
- 24 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- General
- Shell: Metal material
- Net Weight: 2.975 kg (6.56 lb)
- Gross Weight: 3.535 kg (7.79 lb)
- Dimensions (W × H × D): 440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')
- Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 100 to 240 VAC, 50/60 Hz, Max. 6.3 A
- Installation Mode: Rack (equipped with mounting ears)
- Max. Power Consumption: 400 W
- Power Consumption in Idle: 30 W
- Surge Protection: 6 KV
- Network Parameters
- Ports: 24 × Gigabit PoE port,2 × Gigabit fiber optical port
- MAC Address Table: 8 K
- Switching Capacity: 56 Gbps
- Packet Forwarding Rate: 41.66 Mpps
- Internal Cache: 4.1 Mbits
- PoE Power Supply
- PoE Standard: IEEE 802.3af,IEEE 802.3at
- PoE Power Pin: End-span: 1/2(+), 3/6(-);
- PoE Port: PoE: Ports 1 to 24
- Max. Port Power: 30 W
- PoE Power Budget: 370 W
