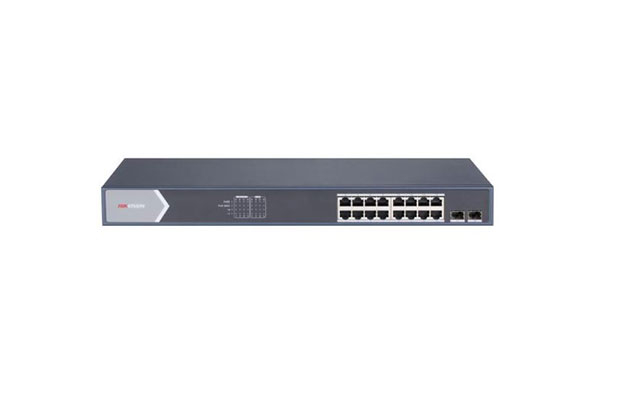

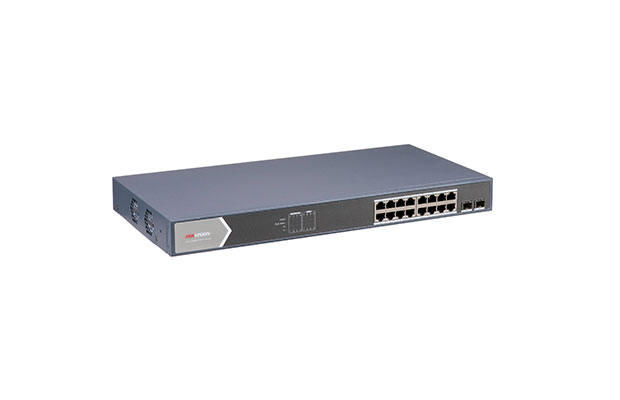

Hikvision DS-3E1518P-SI 16-Port Gigabit Smart POE Switch
$270.00
- Part Number: DS-3E1518P-SI
- 16 × Gigabit PoE ports
- 2 × Gigabit fiber optical ports.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-3E1518P-SI
- General
- Shell: Metal material
- Net Weight: 2.735 kg (6.03 lb)
- Gross Weight: 3.31 kg (7.30 lb)
- Dimensions (W × H × D): 440 mm × 44 mm × 220.8 mm (17.32” × 1.73” × 8.69”)
- Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 100 to 240 VAC, 50/60 Hz, Max. 4 A
- Installation Mode: Rack (equipped with mounting ears)
- Max. Power Consumption: 250 W
- Power Consumption in Idle: 25 W
- Surge Protection: 6 KV surge protection for PoE ports.
- Network Parameters
- Ports: 16 × Gigabit PoE port,2 × Gigabit fiber optical port
- MAC Address Table: 8 K
- Switching Capacity: 56 Gbps
- Packet Forwarding Rate: 41.66 Mpps
- Internal Cache: 4.1 Mbits
- PoE Power Supply
- PoE Standard: IEEE 802.3af,IEEE 802.3at
- PoE Power Pin: End-span: 1/2(+), 3/6(-);
- PoE Port: PoE: Ports 1 to 16
- Max. Port Power: 30 W
- PoE Power Budget: 225 W
- Approval
- EMC FCC (47 CFR Part 15, Subpart B);
- CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);
- IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015)
- Safety UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition);
- CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- Chemistry CE-RoHS (201165EU); WEEE (201219EU);
- Reach (Regulation (EC) No.19072006)
