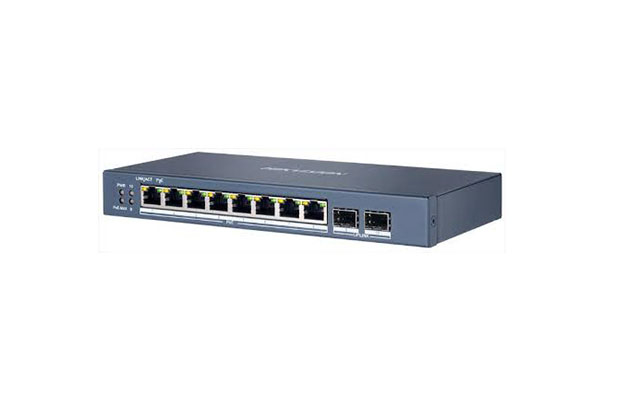

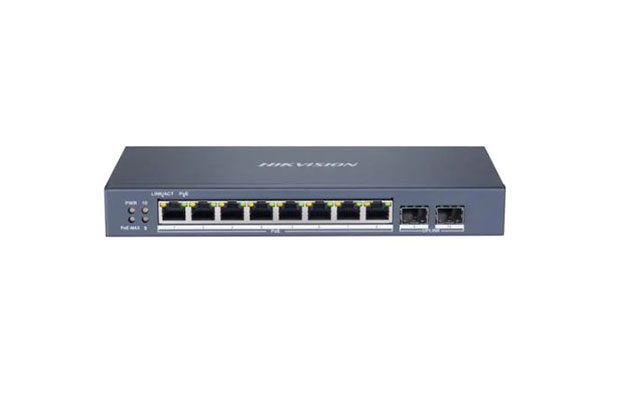

Hikvision DS-3E1510P-SI 8-Port Gigabit Smart POE Switch
$123.00
- Part Numbber: DS-3E1510P-SI
- 8 × Gigabit PoE ports
- 2 × Gigabit fiber optical ports.
- IEEE 802.3at/af standard for PoE ports.
- Network topology management, alarm push, network health monitor.
- 6 KV surge protection for PoE ports.
- AF/AT camera can reach up to 300 m in extend mode.
- Warranty: 1-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Numbber: DS-3E1510P-SI
- General
- Shell: Metal material
- Net Weight: 1.21 kg (2.67 lb)
- Gross Weight: 1.3 kg (2.87 lb)
- Dimensions (W × H × D): 217.60 mm × 27.80 mm × 108.55 mm (8.57'' × 1.09'' × 4.27'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 48 VDC, 2.5 A
- Installation Mode: Desk-Mounted,Wall-Mounted
- Max. Power Consumption: 120 W
- Power Consumption in Idle: 7 W
- Surge Protection: 6 KV
- Network Parameters
- Ports: 8 × Gigabit PoE port,2 × Gigabit fiber optical port
- MAC Address Table: 8 K
- Switching Capacity: 20 Gbps
- Packet Forwarding Rate: 14.88 Mpps
- Internal Cache: 4.1 Mbits
- PoE Power Supply
- PoE Standard: IEEE 802.3af,IEEE 802.3at
- PoE Power Pin: End-span: 1/2(+), 3/6(-);
- PoE Port: PoE: Ports 1 to 8
- Max. Port Power: 30 W
- PoE Power Budget: 110 W
- Approval
- EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);
- IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015)
- Safety UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition);
- CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
- Chemistry: CE-RoHS (201165EU); WEEE (201219EU);
- Reach (Regulation (EC) No.19072006).
