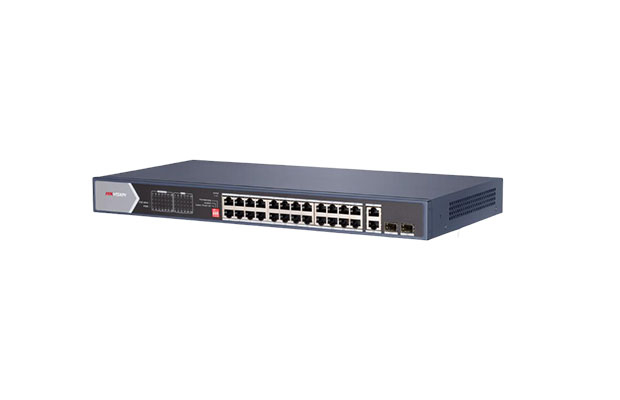

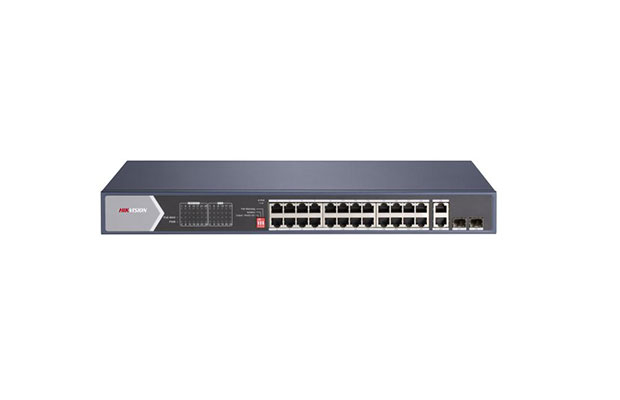

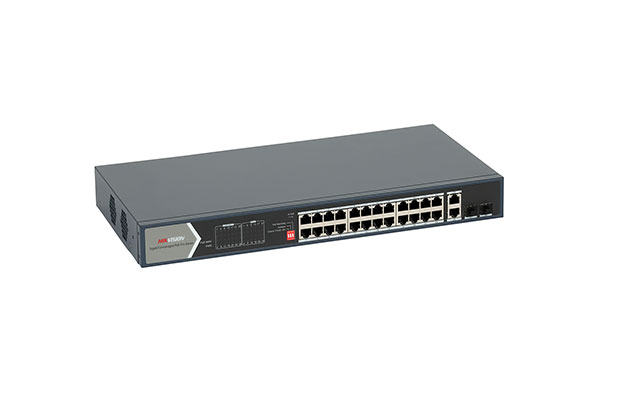

Hikvision DS-3E0528HP-E 24Port Gigabit Unmanaged POE Switch, 2× Gigabit Fiber Optical port
$268.00
- Part Number: DS-3E0528HP-E
- 20 × gigabit PoE port, 4 × gigabit Hi-PoE port, 2 × gigabit RJ45 port, and 2 × gigabit fiber optical port.
- IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Gigabit network access design.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Warranty: 1years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-3E0528HP-E
- General
- Shell: Metal material
- Net Weight: 2.98 kg (6.57 lb)
- Dimensions (W × H × D): 440.0 mm × 44.0 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'')
- Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 100~240 VAC, 50/60 Hz, Max. 6.5 A
- Max. Power Consumption: 400 W
- Power Consumption in Idle: 30 W
- Installation Mode: Rack (equipped with mounting ears)
- Surge Protection: 6 KV
- Network Parameters
- Ports: 24 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
- MAC Address Table: 8 K
- Switching Capacity: 56 Gbps
- Packet Forwarding Rate: 41.664 Mpps
- Internal Cache: 4.1Mbits
- Dialing Function
- Long Range: Ports 21 to 24: up to 300 m.
- Long range performance may vary depend on camera model or cable condition.
- Port Isolation
- Ports 1 to 24: port isolation mode to improve network security.
- Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE Watchdog
- Ports 1 to 24: auto detect and restart the cameras that do not respond.
- PoE Power Supply
- PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- PoE Port Hi-PoE: Ports 1 to 4; PoE: Ports 1 to24
- PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- Max. Port Power: Ports 1 to 4: 90 W Ports 5 to 24: 30 W
- PoE Power Budget: 370 W
- Approval
- EMC FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- Safety UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry CE-RoHS (2011/65/EU)
- Warranty: 1 year on parts.
