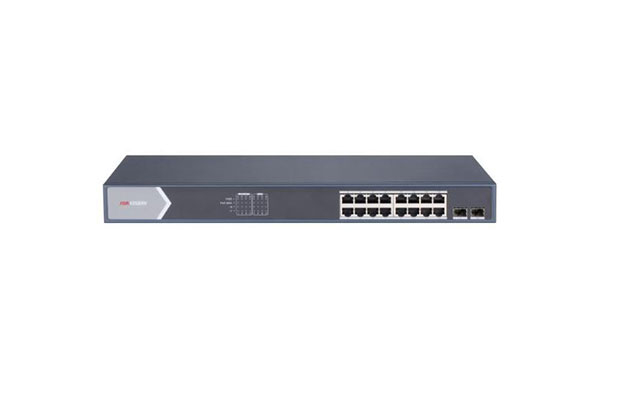

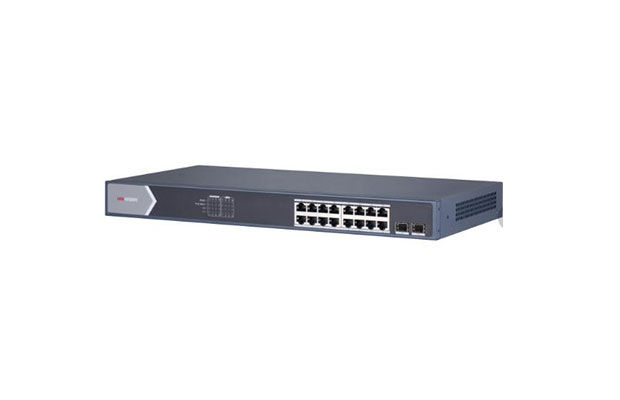

Hikvision DS-3E0518P-E/M 16 Port Gigabit Unmanaged POE Switch
$125.00
- Part Number: DS-3E0518P-E/M
- 16 × Gigabit PoE port
- 2 × Gigabit SFP fiber optical port
- IEEE 802.3at/af standard
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard
- 6 KV surge protection for PoE ports
- PoE power Pupply
- Gigabit network access
- Wire-speed forwarding
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-3E0518P-E/M
- General
- Shell: Metal material
- Net Weight: 2.50 kg (5.51 lb)
- Gross Weight: 3.57 kg (7.87 lb)
- Dimensions (W × H × D): 440 mm × 44 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
- Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 100-240 VAC, 50/60 Hz, Max. 2.5 A;
- Max. Power Consumption: 150 W
- Power Consumption in Idle: 25 W
- Installation Mode: Rack (equipped with mounting ears)
- Surge Protection: 6 KV
- Network Parameters
- Ports: 16 × Gigabit PoE port,2 × Gigabit fiber optical port
- MAC Address Table: 8 K
- Switching Capacity: 36 Gbps
- Packet Forwarding Rate: 26.79 Mpps
- Internal Cache: 4.1 Mbits
- PoE Power Supply
- PoE Standard: IEEE 802.3af;IEEE 802.3at;
- PoE Power Pin: End-span: 1/2(+), 3/6(-)
- PoE Port: PoE: Ports 1 to 16
- Max. Port Power: 30 W
- PoE Power Budget: 125 W
- Approval
- EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry: CE-RoHS (201165EU); WEEE (201219EU);
- Reach (Regulation (EC) No.19072006).
