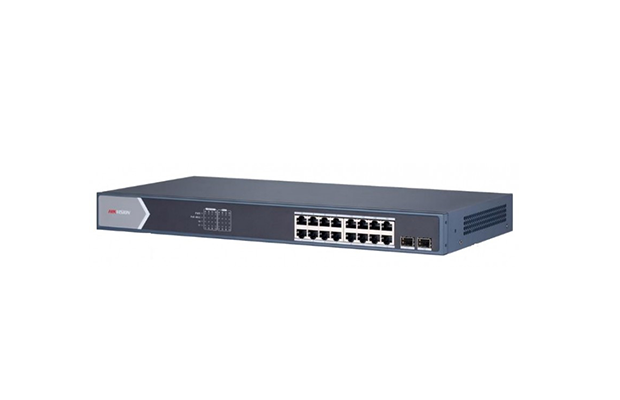

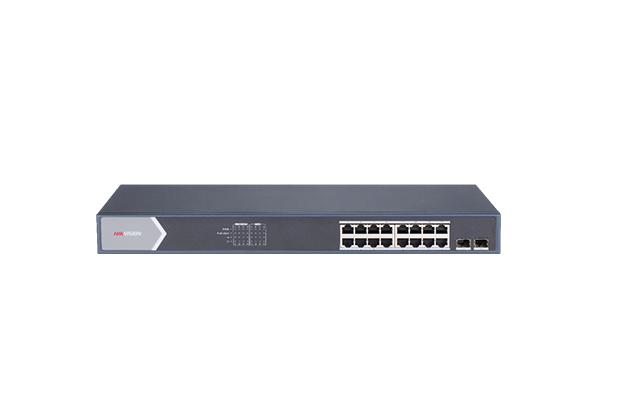

Hikvision DS-3E0518P-E 16Port Gigabit Unmanaged POE Switch
$159.00
- Part Number: DS-3E0518P-E
- 16 Port Gigabit Unmanaged POE Switch
- Layer 2 network switch designed for video data transmission
- 16 x 10/100/1000 Mbps ethernet port, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z network standards available
- IEEE 802.3 af & at high POE power supply
- Store-and-forward switching
- Safe and reliable using 6 KV high surge protection
- Plug and play ensures simplicity and convenience.
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- General
- Shell: Metal material
- Net Weight: 2.67 kg (5.89 lb)
- Gross Weight: 3.53 kg (7.78 lb)
- Dimensions (W × H × D): 440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
- Operating Temperature: –10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 100~240 VAC, 50/60 Hz, Max. 4 A
- Max. Power Consumption: 250 W
- Power Consumption in Idle: 20 W
- Installation Mode: Desk-Mounted,Rack (equipped with mounting ears)
- Surge Protection: 6 KV
- Network Parameters
- Ports: 16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
- MAC Address Table: 8 K
- Switching Capacity: 36 Gbps
- Packet Forwarding Rate: 26.784 Mpps
- Internal Cache: 4.1 Mbits
- PoE Power Supply
- PoE Standard: IEEE 802.3af,IEEE 802.3at
- PoE Power Pin: End-span: 1/2(+), 3/6(-)
- PoE Port: PoE: Ports 1 to 16
- Max. Port Power: 30 W
- PoE Power Budget: 230 W
