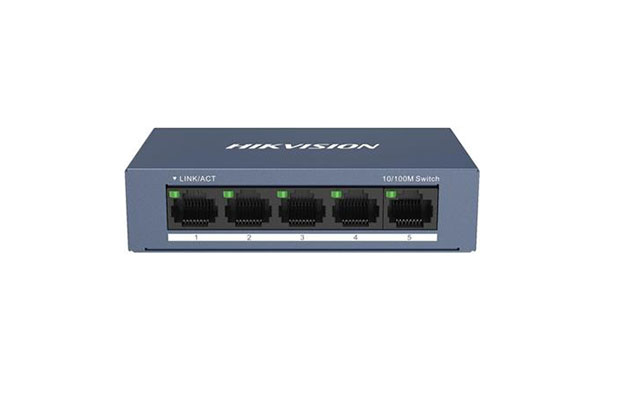

Hikvision DS-3E0105-O 5-Port Fast Ethernet Switch (10/100Mbps RJ45)
$16.00
- Part Number: DS-3E0105-O
- 5 × 10/100 Mbps RJ45 Port
- Easy Plug-and-Play Installation
- Desk-and Wall-Mounting
- Rugged Metal Case, Exquisite and Beautiful Design
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-3E0105-O
- General
- Shell: Metal material, fan-free design
- Net Weight: 0.15 kg (0.3307 lb)
- Gross Weight: 0.3 kg (0.6615 lb)
- Dimensions (W × H × D): 103.05 mm × 25.6 mm × 61.1 mm (4.06'' × 1.01'' × 2.41'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 5 VDC, 1A
- Max. Power Consumption: 5 W
- Power Consumption in Idle: <5 W
- Surge Protection: 2 kV
- Network Parameters
- Ports: 5 × 10/100 Mbps RJ45 port
- MAC Address Table: 1 K
- Switching Capacity: 1 Gbps
- Packet Forwarding Rate: 0.75 Mpps
- Internal Cache: 0.448 Mbits
- Approval
- EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020)
- Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
