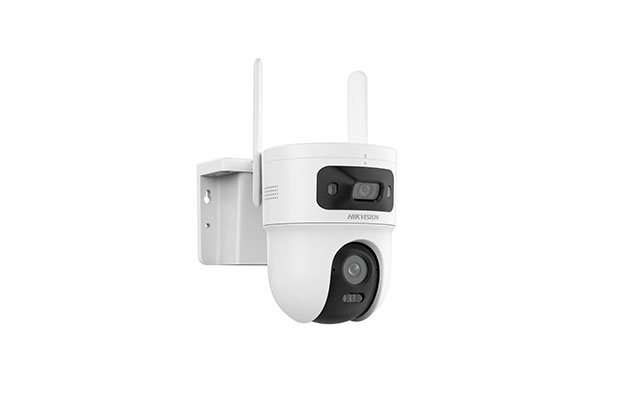

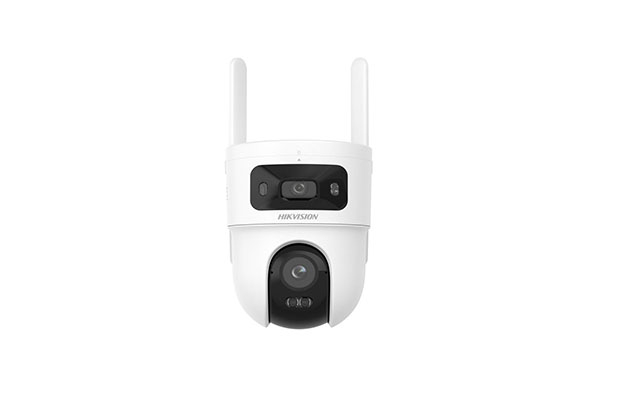

Hikvision DS-2CFSP8-D/4G 8MP 24/7 Solar 4G Dual-lens PT Camera
$140.00
- Part Number: DS-2CFSP8-D/4G
- Support AOV Mode: 24/7 video recording

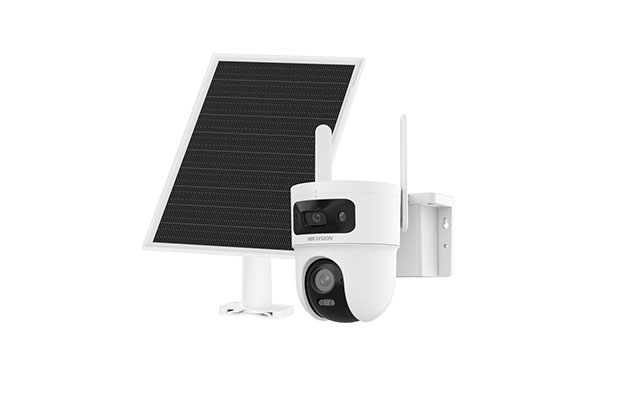

- 8 W solar panel and 9000 mAh battery
- Support 4G LTE data transmission
- Smart Hybrid Light: 30 m white light and IR
- Built-in microphone and speaker, support two-way audio
- IP66: Water and dust resistant
- Smart Tracking: PT Camera achieves person tracking with Motion Detection 2.0
- Panoramic Details: Wide-angle lens for background information, specific lens for close-up details
- Motion Detection 2.0: Support person and vehicle detection
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-2CFSP8-D/4G
- Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON)
- Shutter Time: 1 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: -170° to 170°,tilt: 0° to 80°
- Lens
- Focal Length & FOV: 2.8 mm, horizontal FOV 98.2°, vertical FOV 54.2°, diagonal FOV 114.6°
- Focal Length & FOV: 4 mm, horizontal FOV 78.8°, vertical FOV 42.3°, diagonal FOV 93.4°
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Aperture: F1.6
- Lens Mount: M12
- Iris Type: Fixed
- Depth of Field: 2.8 mm: 1.4 m to ∞
- Depth of Field: 4 mm: 1.5 m to ∞
- DORI
- DORI: 2.8mm D: 61 m, O: 24 m, R: 12 m, I: 6 m
- DORI: 4mm D: 82 m, O: 32 m, R: 16 m, I: 8 m
- Illuminator
- Supplement Light Type: IR,White Light
- Supplement Light Range: Up to 30 m
- IR Wavelength: 850 nm
- Smart Supplement Light: Yes
- Video
- Main Stream
- Channel 1:
- 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Channel 2:
- 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream
- Channel 1:
- 50 Hz: 12.5 fps (768 × 432)
- 60 Hz: 15 fps (768 × 432)
- Channel 2:
- 50 Hz: 12.5 fps (768 × 432)
- 60 Hz: 15 fps (768 × 432)
- Video Compression: Main stream: H.265, Sub-stream: H.265
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Audio
- Audio Compression: G.711ulaw
- Audio Bit Rate: 64 Kbps(G.711ulaw)
- Audio Sampling Rate: 8kHz
- Environment Noise Filtering: Yes
- Network
- Simultaneous Live View: Up to 6 channels
- API: SDK
- User/Host: Up to 32 users
- 3 user levels: administrator, operator, and user
- Client: Hik-Connect
- Mobile Communication
- Standard: LTE-FDD
- Frequency
- EU:LTE-FDD: B1/3/5/7/8/20/28
- LA:LTE-FDD: B2/3/4/5/7/8/28/66
- Uplink and Downlink Data Rate
- Cat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps
- SIM Card Type: Nano SIM
- Image
- Image Settings: brightness,contrast,white balance,saturation,sharpness
- Day/Night Switch: Day,Night,Auto,Schedule
- Image Enhancement: BLC,HLC,3D DNR
- Wide Dynamic Range (WDR): Digital WDR
- Interface
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes,1 built-in microphone
- Reset Key: Yes
- Built-in Speaker: Yes, 1 built-in speaker
- Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle))
- Linkage: notify surveillance center,trigger recording,trigger capture,audible warning,Upload to memory card
- General
- Power: 12 V, 1.5 A, max. 18 W
- Material: Plastic
- Dimension: Ø110.9 mm × 145.4 mm (Ø4.37" × 5.72")
- Package Dimension: 322 mm × 197 mm × 210 mm (12.68" × 7.76" × 8.27")
- Weight: Approx. 1560 g (3.44 lb.)
- With Package Weight: Approx. 2180 g (4.81 lb.)
- Startup and Operating Conditions: -30 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
- General Function: Mirror,flash log
- Storage Conditions: -20 °C to 25 °C (-4 °F to 77 °F). Humidity 70% or less (non-condensing)
- Flashing Light: NA
- Battery
- Battery Type: Lithium
- Capacity: 9000 mAh
- Max. Charging Voltage: 8.4 V
- Battery Voltage: 6 V to 8.4 V
- Operating Temperature: Charging: 0 °C to 45 °C (32 °F to 113 °F)
- Operating Temperature: Discharging: -20 °C to 55 °C (-4 °F to 131 °F)
- Cycle Lifetime: Cap(800th) ≥ 80%
- Battery Weight: Approx. 170 g (0.37 lb.)
- Approval
- RF CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
- Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Solar Power
- Solar Panel Type: Monocrystalline silicon solar panel
- Power Consumption: 8 W
- Solar Panel Dimensions & Weight: Dimensions: 263.8 mm × 171.7 mm × 18.5 mm (10.39" × 6.76\" × 0.73\")
- Solar Panel Dimensions & Weight: Weight: 450 g (0.99 lb.)
- Working Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Protection: IP65
- Warranty: 1 Year on part.
