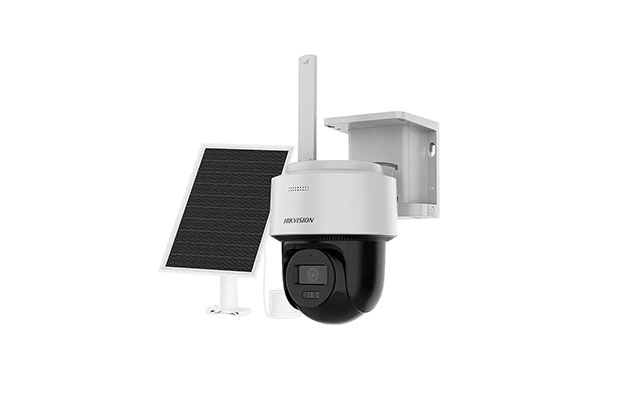

Hikvision DS-2CFSP4/4G 4MP AOV Solar 4G PT Camera
$110.00
- Part Number: DS-2CFSP4/4G
- Support AOV Mode：24/7 video recording
- 8 W solar panel and 9000 mAh battery
- Support 4G LTE data transmission
- Smart Hybrid Light: 30 m white light and IR
- Motion Detection 2.0: Support person and vehicle detection
- Built-in microphone and speaker, support two-way audio
- Water and dust resistant (IP66)
- Smart Tracking: PT Camera achieves person tracking with Motion Detection 2.0
- Warranty: 1-years on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-2CFSP4/4G
- Camera
- Image Sensor: 1/3" Progressive Scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1 s to 1/100,000 s
- Day & Night: IR cut filter
- Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 95.7°, vertical FOV 51.7°, diagonal FOV 113.7°
- Focal Length & FOV: 4 mm, horizontal FOV 79.6°, vertical FOV 43.2°, diagonal FOV 93.2°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.28
- PTZ
- Movement Range (Pan): 0° to 340°
- Movement Range (Tilt): 0° to 80°
- Pan Speed: Up to 20°/s
- Tilt Speed: Up to 25°/s2.0
- DORI
- DORI 2.8 mm D: 63.9 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
- DORI 4 mm D: 77.6 m, O:30.8 m, R: 15.5 m, I: 7.8 m
- Illuminator
- Supplement Light Type: IR,White Light
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Video
- Main Stream
- 50 Hz: 12.5 fps {2560 x 1440, 1920 × 1080, 1280 × 720)
- 60 Hz: 15 fps (2560 x 1440, 1920 × 1080, 1280 × 720)
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Audio
- Audio Compression: G.711ulaw
- Audio Bit Rate: 64 Kbps(G.711ulaw）
- Audio Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
- Network
- Simultaneous Live View: Up to 6 channels
- API: ISAPI
- User/Host: Up to 32 users
- 3 user levels: administrator, operator, and user
- Client: Hik-Connect
- Mobile Communication
- Standard: LTE-FDD,LTE-TDD,UMTS
- Frequency: EU:LTE-FDD: B1/3/5/7/8/20/28, LA:LTE-FDD: B2/3/4/5/7/8/28/66
- Uplink and Downlink Data Rate: EU: Cat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps, IN: Cat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps, LA: Cat 1, uplink: 5.1 Mbps, downlink: 10.3Mbps, NA: Cat 4, uplink: 50 Mbps, downlink:150 Mbps, JP: Cat 4, uplink: 50 Mbps, downlink:150 Mbps
- SIM Card Type: Nano SIM
- Image
- Image Settings: Saturation,brightness,contrast,sharpness,white balance
- Day/Night Switch: Day,Night,Auto,Schedule
- Image Enhancement: BLC,HLC,3D DNR
- Wide Dynamic Range (WDR): Digital WDR
- Interface
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: 1 built-in microphone
- Built-in Speaker: 1 built-in speaker
- Reset Key: Yes
- Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle))
- Linkage: Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning
- General
- Power: 12 V, 0.75 A
- Material: Plastic
- Dimension: 208 mm × 131 mm × 282.7 mm (8.2" × 7.0" × 11.1")
- Package Dimension: 386 mm × 201 mm × 225 mm (15.2" × 7.9" × 8.9") Approx. 850 g (1.9 lb.)
- With Package Weight: Approx. 5400 g (11.9 lb.)
- General Function: Mirror,flash log
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: 0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
- Battery
- Battery Type: Lithium
- Battery Voltage: DC 6 V to DC 8.4 V
- Capacity: 9000 mAh (3.7 V)
- Max. Charging Voltage: 8.4 V
- Max. Output Voltage: 8.4 V
- Operating Temperature
- Charging: 0 °C to 45 °C (32 °F to 113 °F)
- Discharging: -20 °C to 55 °C (-4 °F to 131 °F)
- Battery Life: More than 800 cycles.
