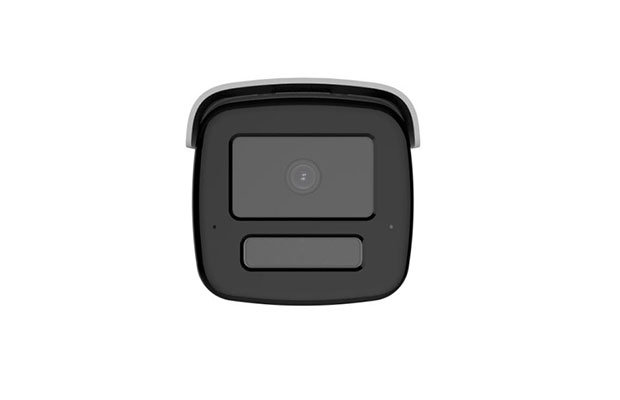

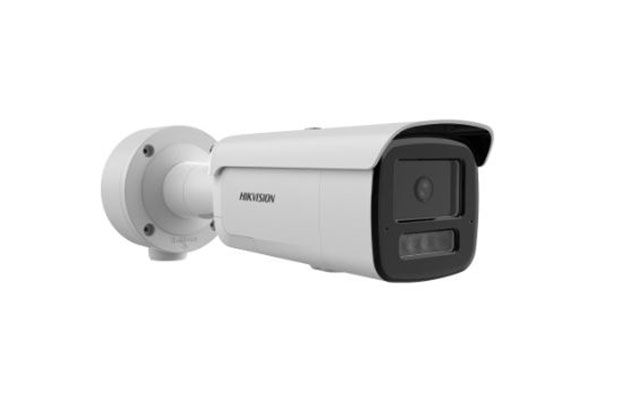

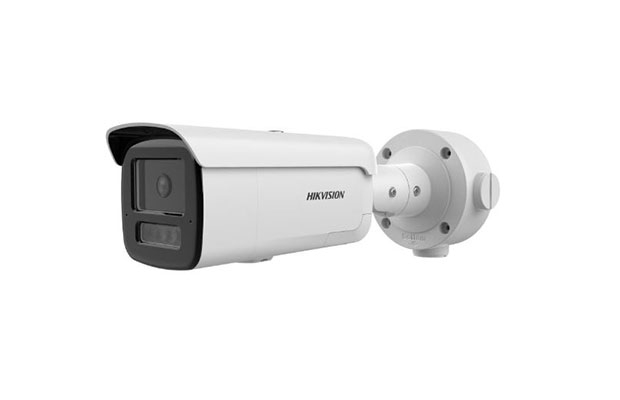

Hikvision DS-2CD3T83G2-LISU/SL 8MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
$160.00
- Part Number: DS-2CD3T83G2-LISU/SL
- High quality imaging with 8 MP resolution
- Acusense: Focus on human and vehicle classification based on deep learning
- Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes3
- Built-in arrayed dual-microphone for real-time high quality audio security
- Clear imaging against strong back light due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67) and vandal-resistant (IK10)
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-2CD3T83G2-LISU/SL
- Camera
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens Type: Fixed focal lens, 2.8, 4, and 6 mm optional
- Focal Length & FOV: 2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127°
- Focal Length & FOV: 4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105°
- Focal Length & FOV: 6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
- Depth of Field: 2.8 mm: 1.7 m to ∞
- Depth of Field: 4 mm: 2.6 m to ∞
- Depth of Field: 6 mm: 5.8 m to ∞
- DORI
- DORI: 2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m
- DORI: 4 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m
- DORI: 6 mm, D: 176 m, O: 70 m, R: 35 m, I: 17 m
- Illuminator
- Supplement Light Type: IR,White Light
- Supplement Light Range: up to 60 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Video
- Main Stream 50 Hz:
- 25 fps (3840 × 2160)
- 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz:
- 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz:
- 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream 50 Hz:
- 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz:
- 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- *Third stream is supported under certain settings.
- Fourth Stream 50 Hz:
- 10 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz:
- 10 fps (1280 × 720, 640 × 480, 640 × 360)
- *Fourth stream is supported under certain settings.
- Video Compression: Main stream: H.265/H.264/H.264+/H.265+,
- Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
- *Third stream and fourth stream are supported under certain settings.
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Bit Rate Control: CBR,VBR
- Region of Interest (ROI): 5 fixed regions for main stream and sub-stream
- Target Cropping: Yes
- Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering: Yes
- Material: Metal
- Dimension: 88.7 mm × 91.2 mm × 325.7 mm (3.5" × 3.6" × 12.8")
- Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
- Weight: Approx. 1160 g (2.6 lb.)
- With Package Weight: Approx. 1660 g (3.7 lb.).
