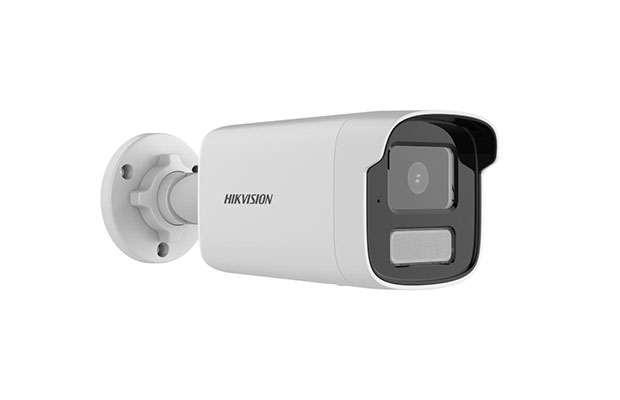

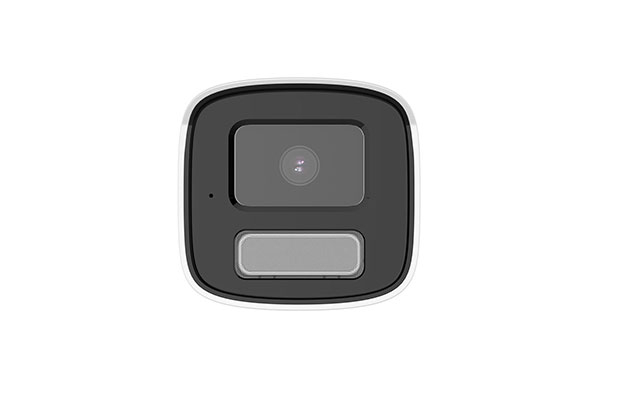

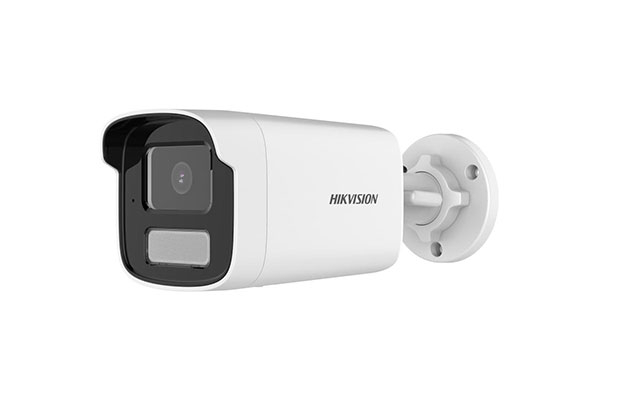

Hikvision DS-2CD3T81G2-LIUF 8MP Smart Hybrid Light Motion 2.0 Fixed Bullet Network Camera
$110.00
- Part Number: DS-2CD3T81G2-LIUF
- High quality imaging with 8 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB WDR technology
- 3D DNR technology delivers clean and sharp images
- Built-in microphone for real-time audio security
- Support on-board storage up to 512 GB (SD card slot)
- Water and dust resistant (IP67) and vandal proof (IK10)
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-2CD3T81G2-LIUF
- Camera
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination: Color: 0.005 Lux @ (F2.0, AGC ON),0 Lux with light
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
- Lens
- Lens Type: Fixed focal lens, 4 and 6 mm optional
- Focal Length & FOV: 4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°
- Focal Length & FOV: 6 mm, horizontal FOV 57°, vertical FOV 30°, diagonal FOV 67°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F2.0
- DORI
- DORI: 4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m
- DORI: 6 mm, D: 169 m, O: 67 m, R: 33 m, I: 16 m
- Illuminator
- Supplement Light Type: IR,White Light
- Supplement Light Range: Up to 60 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Video
- Main Stream 50 Hz:
- 20 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz:
- 20 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
- 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile,Main Profile,High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
- Audio
- Audio Type: Mono sound
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Network
- Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS, UPnP, 802.1X
- API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- Simultaneous Live View: Up to 6 channels
- User/Host: Up to 32 users
- 3 user levels: administrator, operator, and user
- Client: iVMS-4200,Hik-Connect
- Web Browser: Plug-in required live view: IE 11,
- Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
- Image
- Wide Dynamic Range (WDR): 120 dB
- SNR: ≥ 52 dB
- Day/Night Switch: Day,Night,Auto,Schedule
- Image Enhancement: BLC,HLC,3D DNR
- Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask: 4 programmable polygon privacy masks
- Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: Yes,1 built-in microphone
- Reset Key: Yes
- Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart Event: Line crossing detection, intrusion detection
- Linkage: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
- General
- Power: 12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
- PoE: IEEE 802.3af, Class 3, max. 7 W
- Material: Front cover: metal, body: metal, bracket: metal
- Dimension: 221.1 mm × 83.7 mm × 80.7 mm (8.7" × 3.3" × 3.2")
- Package Dimension: 260 mm × 125 mm × 125 mm (10.24" × 4.92" × 4.92")
- Approx. 425 g (0.9 lb.)
- With Package Weight: Approx. 670 g (1.5 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: English, Ukrainian
- General Function: Heartbeat,mirror,flash log,password reset via email,pixel counter,password protection,anti-banding
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
- IC: ICES-003: Issue 7
- Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017,
- BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment CE-RoHS: 2011/65/EU
- Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
- Warranty: 1 Year on part.
