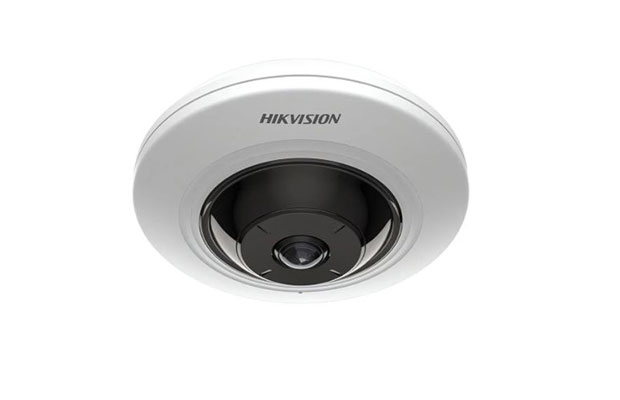

Hikvision DS-2CD3956G2-ISU 5MP AcuSense Fisheye Network Camera
$130.00
- Part Number: DS-2CD3956G2-ISU
- Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
- Supports 1.5 TOPS computing power, 60 MB system memory, 400 MB smart RAM, and 2 GB eMMC storage for sharing resources
- Efficient H.265+ compression technology
- 180° fisheye view
- High quality imaging with 5 MP resolution
- Up to 4 live view display modes
- Clear imaging against strong back light due to 120 dB true WDR technology
- Warranty: 1 Year on part.
Contact for Price & Stock
Delivery 25 Provinces
Official Warranty
100% Genuine Product
Tech Support
Specifications
- Part Number: DS-2CD3956G2-ISU
- Camera
- Image Sensor: 1/2.7" Progressive Scan CMOS
- Max. Resolution: 2560 × 1920
- Min. Illumination: Color: 0.017 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Lens
- Lens Type: Fixed focal lens, 1.05 mm
- Focal Length & FOV: 1.05 mm, horizional FOV: 180°, vertical FOV: 180°, diagonal FOV: 180°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F2.25
- Depth of Field: 0.1 m to ∞
- DORI
- DORI D: 21 m, O: 8 m, R: 4 m, I: 2 m
- Illuminator
- Supplement Light Type: IR
- Supplement Light Range: Up to 8 m
- Smart Supplement Light: Yes
- IR Wavelength: 850 nm
- Video
- Main Stream
- 50 Hz: 25 fps/60 Hz: 30 fps:
- Fisheye View: 2560 × 1920, 2048 × 1536, 1280 × 960
- 180 Panorama View: 2048 × 1152, 1280 × 720
- 180 Dual Channel Panorama View: 4096 × 576，2048 × 288
- 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1200 × 900
- Fisheye + 3PTZ View: camera 01: 2048 × 1536, 1280 × 960
- camera 02/camera 03/camera 04: 1200 × 900
- Sub-Stream
- 50 Hz: 25 fps/60 Hz: 30 fps:
- Fisheye View: 640 × 480, 640 × 360
- 180 Panorama View: 640 × 480, 640 × 360
- Fisheye + 3PTZ View: camera 01: 640 × 480, 640 × 360
- Video Compression: Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Fisheye Display
- Mount Type: Ceiling mounting
- Decoding Mode: Support hardware decoding and software decoding
- Audio
- Audio Compression
- G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
- Network
- Protocols: TCP/IP
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser
- Plug-in required live view: IE 10, IE 11
- Plug-in free live view : Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image Parameters Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- Image Enhancement: BLC, HLC, 3D DNR
- SNR: ≥ 52 dB
- Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone: -U: Yes
- Alarm: 1 input, 1 output (max. 12 VDC, 30 mA)
- RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset Key: Yes
- General
- Power: 12 VDC ± 25%, 0.50 A, max. 6 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W
- Dimension: Ø119.9 mm × 41.2 mm (Ø4.7 × 1.6\")"
- Package Dimension: 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9") Approx. 320 g (0.7 lb.)
- With Package Weight: Approx. 510 g (1.1 lb.)
